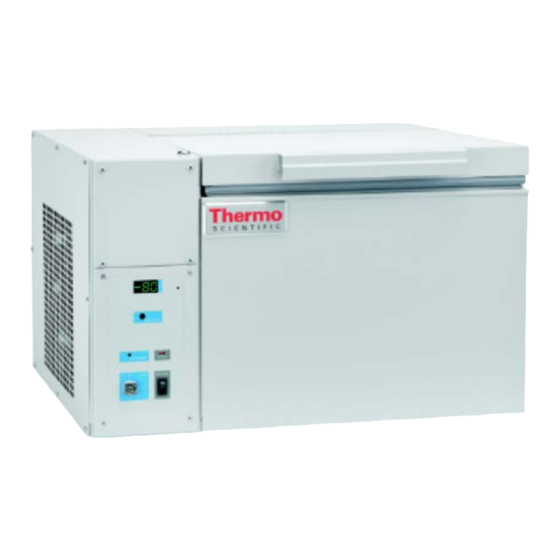

- Page 1 Benchtop Ultra-Low Temperature Freezers Installation and Operation 326684H01 Rev. B May 2015 Visit us online to register your warranty www.thermoscientific.com/labwarranty...
- Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction................1 Safety Precautions..............2 General Recommendations .............4 Initial Loading ..............4 Pre-Installation.................5 Unpacking ................5 Installation................6 Location ................6 Wiring ..................6 Electrical Specifications .............6 Intended Use ................7 Operation (Benchtop Freezer) ..........8 Control Panel Features ............8 Start Up ................9 Maintenance and Troubleshooting Contents ......10 Condenser Maintenance .............10 Gasket Maintenance ............10... -
Page 4: Introduction
• Integrated preset over temperature safety alarm with battery backup • Digital temperature display with 1ºC resolution • Key-operated main power switch 6-inch temperature recorders are available as optional accessory. Thermo Scientific Benchtop Ultra-Low Temperature Freezers Installation and Operation Manual... -
Page 5: Safety Precautions
Use appropriate insulated gloves for handling samples and racks. DANGER: This unit is not intended for use in classified hazardous locations, nor to be used for the storage of flammable inventory. Installation and Operation Manual Thermo Scientific Benchtop Ultra-Low Temperature Freezers... - Page 6 Never connect the unit to overloaded power sources. • Disconnect the unit from all power sources before cleaning, trouble shooting, or performing other maintenance on the product or its controls. Thermo Scientific Benchtop Ultra-Low Temperature Freezers Installation and Operation Manual...
-
Page 7: General Recommendations
Note Failure to follow these procedures or overloading the unit may cause undue stress on the compressors or jeopardize user product safety. Installation and Operation Manual Thermo Scientific Benchtop Ultra-Low Temperature Freezers... -
Page 8: Pre-Installation
When submitting a claim for shipping damage, request that the carrier inspect the shipping container and equipment. Note Do not discard the sublid. The sublid is necessary to maintain correct temperature, moisture control, and economy of operation. Thermo Scientific Benchtop Ultra-Low Temperature Freezers Installation and Operation Manual... -
Page 9: Installation
The models and voltage types are as specified in the following table: Specifications Table 1. Electrical Specifications Model Voltage Frequency Current ULT185-5-A 115V 60Hz 16A, 1Phase ULT185-5-V 12A, 1Phase 230V 50Hz Installation and Operation Manual Thermo Scientific Benchtop Ultra-Low Temperature Freezers... -
Page 10: Intended Use
Samples stored in this unit are extremely cold as are internal surfaces. Contact with bare skin may cause frost bite. Always use proper insulated gloves for handling samples Thermo Scientific Benchtop Ultra-Low Temperature Freezers Installation and Operation Manual... -
Page 11: Operation (Benchtop Freezer)
Figure 2. Benchtop Freezer Control Panel 1. LED digital temperature display. 2. Recessed temperature control setpoint adjustment. 3. Power On/Alarm On switch. 4. Audio Silence switch. 5. Temperature Failure LED indicator. 6. Setpoint Display button. Installation and Operation Manual Thermo Scientific Benchtop Ultra-Low Temperature Freezers... -
Page 12: Start Up
If the cabinet temperature rises above the alarm setpoint, the temperature failure light illuminates and the audio alarm sounds. To silence the audio alarm, press the Audio Silence switch to ON position. Thermo Scientific Benchtop Ultra-Low Temperature Freezers Installation and Operation Manual... -
Page 13: Maintenance And Troubleshooting Contents
3. Dispose of the ice and wipe out any water standing in the bottom of the cabinet. If there is freezer odor, wash the interior with a solution of baking soda and warm water. Clean the exterior with any common household cleaning wax. Installation and Operation Manual Thermo Scientific Benchtop Ultra-Low Temperature Freezers... -
Page 14: Alarm Battery Maintenance
3. Remove the battery and put the new battery in place. Note You may have to cut a strip of silicone rubber in order to remove the battery. 4. Connect the battery terminals and replace the front grill. Thermo Scientific Benchtop Ultra-Low Temperature Freezers Installation and Operation Manual... -
Page 15: Chart Recorders (Optional)
Retaining Wire Figure 3. Chart Recorder Figure 4. Chart Buttons IMPORTANT: Do not use sharp or pointed objects to depress the chart buttons. This may cause permanent damage to the recorder. Installation and Operation Manual Thermo Scientific Benchtop Ultra-Low Temperature Freezers... -
Page 16: Power Supply
If necessary, adjust recorder by pressing the left (#1) and right (#2) chart buttons. Note The stylus does not begin to move until the button is held for five seconds. Thermo Scientific Benchtop Ultra-Low Temperature Freezers Installation and Operation Manual... -
Page 17: Warranty
Your local Thermo Scientific Sales Office is ready to help with comprehensive site preparation information before your equipment arrives. Printed instruction manuals carefully detail equipment installation, operation, and preventive maintenance. -
Page 18: Warranty (International)
Thermo shall not be liable for any indirect or consequential damages including, without limitation, damages relating to lost profits or loss of products. Your local Thermo Scientific Sales Office is ready to help with comprehensive site preparation information before your equipment arrives. Printed instruction manuals carefully detail equipment installation, operation, and preventive maintenance. - Page 19 Further information on our compliance with these Directives, the recyclers in your country, and information on Thermo Scientific products which may assist the detection of substances subject to the RoHS Directive are available at www.thermo.com/...
- Page 20 (manufacturer or specific agent/rep organization), and purchase order number. IF YOU NEED ASSISTANCE: Thermo Scientific products are backed by a global technical support team ready to support your applications. We also offer cold storage accessories, including remote alarms, temperature recorders and validation services.
- Page 21 Thermo Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States www.thermofisher.com 326684H01 Rev. B...
