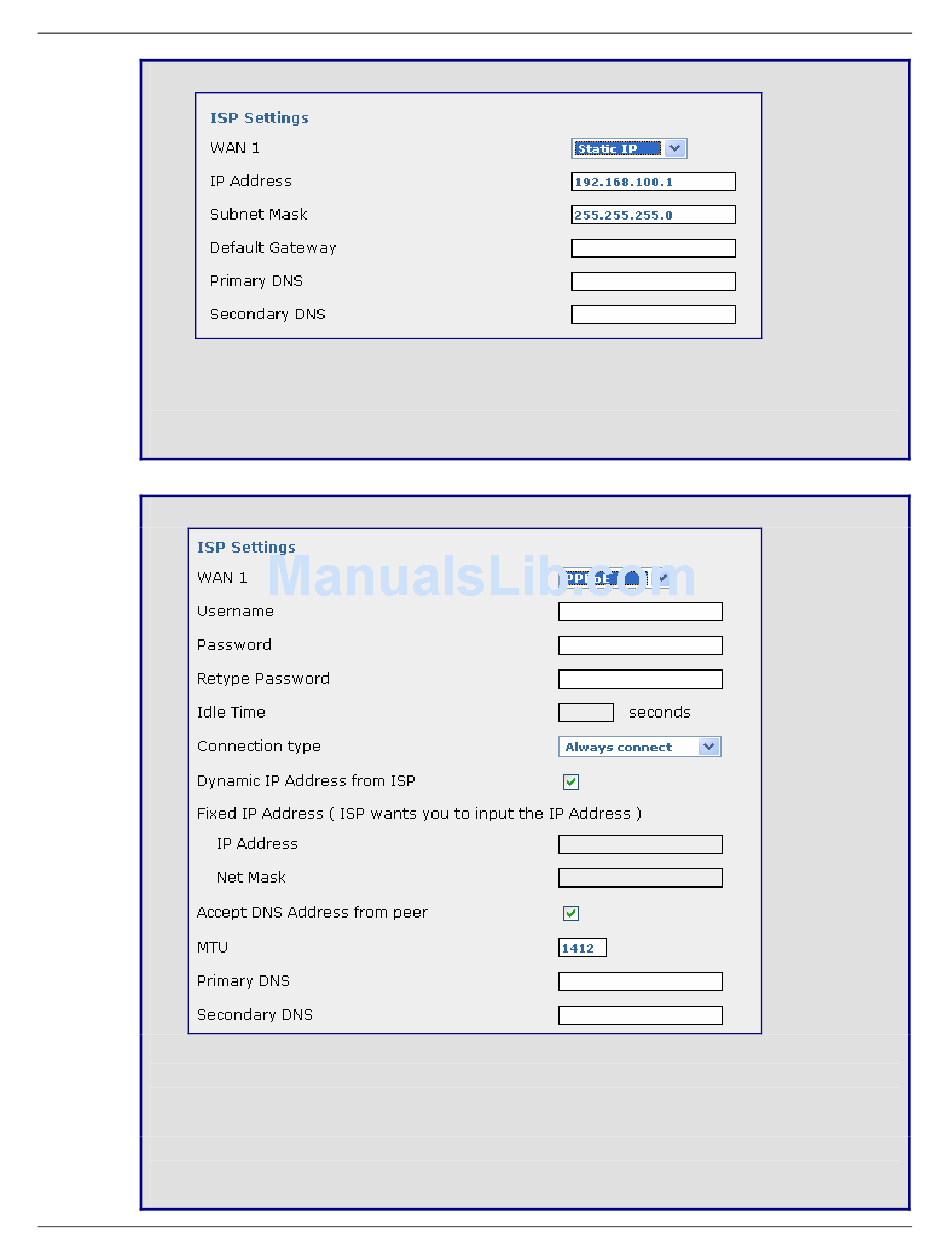

• WAN 1 Static IP Choice
If you choose Static IP for WAN 1, the IP Address (default is 192.168.100.1)
and the Subnet Mask (default is 255.255.255.0) fields displays.
Enter the Default Gateway, the Primary DNS address and the Secondary
DNS address for the IP address provided.
• WAN 1 PPPoE Choice
PPPoE (Point-to-Point over Ethernet) is a specification for connecting multiple
computer users on an Ethernet local area network to a remote site through
DSL or cable modems or wireless connection to the Internet. The following
fields display when you select PPPoE:
User Name
20
Multi-Tech Systems, Inc. RF820/RF820-AP & RF830/RF830-AP Quick Start Guide
Enter the user name give by the ISP.
Example:
user1@xyz.com
or user 1
Chapter 3 – Configuration
