Overview
The Wireless 3-Button Control Station is designed to
be used only with the Wireless 3-Button Radio
Receiver (not provided).

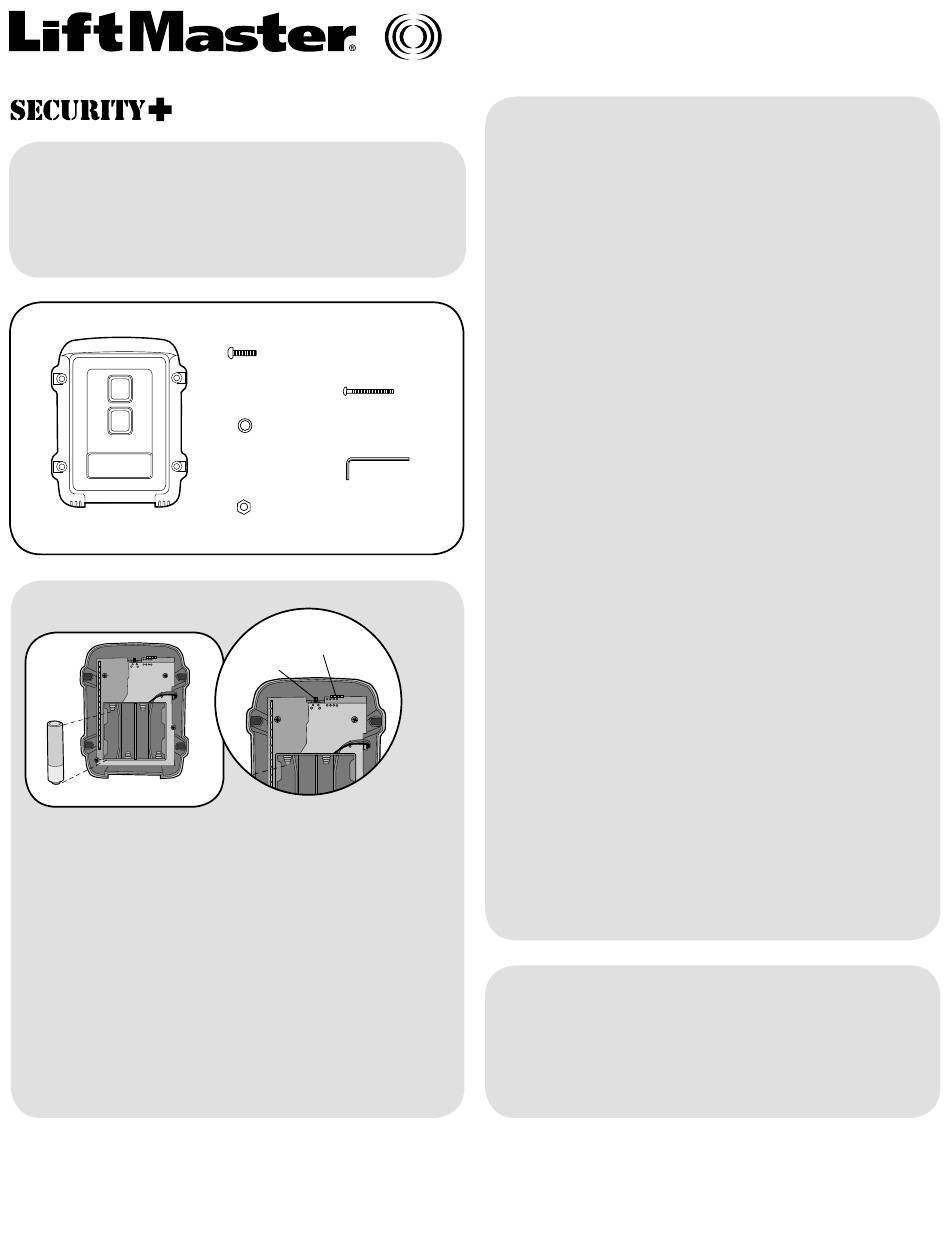

Carton Inventory
Control Station
Assembly
Install 4 AA Alkaline batteries (not provided). (Lithium
batteries recommended for colder environments.)
Bolt (4)
Screw (4)
Washer (4)
Allen Wrench
Nut (4)
Dipswitch
Block
Learn
Button
Wireless 3-Button Control Station
Programming WPB3LM3 to a
Commercial Logic 3 Operator
Your WPB3LM3 can also be programmed to operate
as a 3-button wireless control station: The green
button will open the door, the white button will close
the door and the red button will stop the door's
movement. This feature may be setup as follows:
1. To enter programming press the RADIO button on
the logic board (the RADIO LED will light).
2. To program the OPEN button to the WPB3LM3
press OPEN on the logic board. The RADIO LED
will flash and then stay on. Press the green button
on the WPB3LM3 and the RADIO LED on the logic
board should flash. The WPB3LM3 should now be
programmed. (By programming the WPB3LM3 you
use 1 channel of the 23 channels on the radio
receiver.)
3. To program the CLOSE button to the WPB3LM3
press CLOSE on the logic board. The RADIO LED
will flash and then stay on. Press the white button
on the WPB3LM3 and the RADIO LED on the logic
board should flash. The WPB3LM3 should now be
programmed. (By programming the WPB3LM3 you
use 1 channel of the 23 channels on the radio
receiver.)
4. To program the STOP button to the WPB3LM3
press STOP on the logic board. The RADIO LED
will flash and then stay on. Press the red button on
the WPB3LM3 and the RADIO LED on the logic
board should flash. The WPB3LM3 should now be
programmed. (By programming the WPB3LM3 you
use 1 channel of the 23 channels on the radio
receiver.)
5. After programming the WPB3LM3 press the
RADIO button on the logic board (LED will turn off).
NOTE: If there is no activity within 30 seconds the
radio will automatically exit programming mode.
Operation
Clear Memory of Receiver: When the Receiver has
power, press the Learn button until the LED blinks a
total of 6 times.
1
Model WPB3LM3
