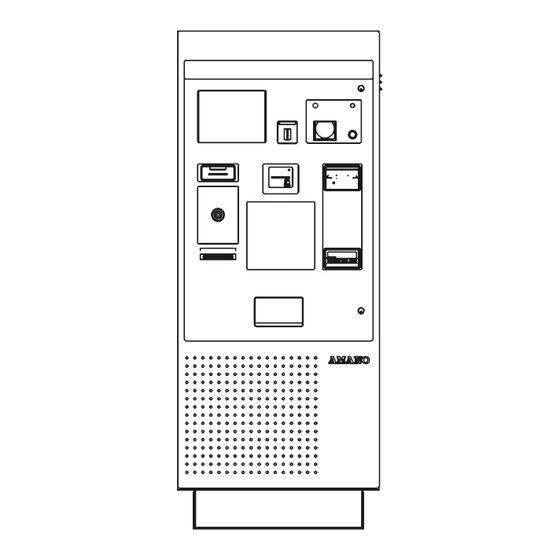

Amano OPU Series Installation Manual

Pay-in-lane, pay on-foot station

Hide thumbs Also See for OPU Series:

Installation manual (42 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

OPUSeries

OPUS-7000 Series

Pay-in-Lane; Pay on-Foot Station

Installation Manual

OPUS7000_Installation_10032014

Table of Contents

Need help?

Do you have a question about the OPU Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Amano OPU Series

Page 1 OPUSeries OPUS-7000 Series Pay-in-Lane; Pay on-Foot Station Installation Manual OPUS7000_Installation_10032014...
Page 2 Roseville, Minnesota 55113 Notice of Liability: Amano makes no representations or warranties with respect to the accuracy or completeness of the contents of this work and specifically disclaim all warranties, including without limitation, warranties of fitness for a particular purpose. Amano reserves the right to make equipment changes and improvements that may not be reflected in this document.
Page 3: Table Of Contents
4.1 Updating the Windows CE Image..............31 4.2 Updating the SmartCash/CLM Firmware............4.3 Updating the IO100..................4.3.1 IO100 Revision r791 and Earlier............4.3.2 Revision 792 and Above................ 4.4 Updating REPM Firmware................4.5 Updating the REPM Imager................37 © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 4 5.1 Creating Management Cards................40 5.2 Configuring Parameters..................41 5.3 Configuring Revenue Management..............41 5.4 Initial Fill......................42 WIRING DIAGRAMS....................... 43 6.1 1700 Gate......................43 6.2 1703........................44 6.3 AiPhone Intercom....................45 6.4 Wiring Schematics....................46 © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 5: Introduction
“OPUS-7000” refer to both OPUS-7700 and OPUS-7800 series models. Any direction that does not apply to both series will be clarified in the appropriate section. File References Any file references made in this manual refers to files available on Amano McGann University (amu.amanomcgann.com).
Page 6: Before You Begin
Support your claim with copies of the bill of lading, freight bill, invoice, and photographs, if available. Amano McGann, Inc. is not responsible for collection of claims or replacement of lost or damaged goods.
Page 7: Removing Packaging Material
4. Remove the zip tie on the receipt printer roller. 5. Remove the warning label and zip tie securing the REPM. [Fig. 1.2B] Remove the zip tie. 6. Remove the keys from the coin box. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 8: Inspecting The Equipment
A plastic mounting template is included. Any optional accessories are packaged separately. Note: Notify Amano McGann if any items are missing. Check the shipping cartons for damage. If anything is damaged, notify the transportation company and file a claim. The transportation company is responsible for the shipment after the device leaves the factory.
Page 16: Mounting Diagram
6. Position the Paystation on top of the mounting base and open the Paystation door. 7. Secure the Paystation to the mounting base using the four mounting bolts. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 17: Specifications
Ambient Light: Total darkness to 9000 ft. candles (96,900 LUX) Options Magstripe and proximity access card models optional TCP/IP security camera optional Chip and Pin Optional Security Multi-point safety lock system Intruder alarm Security locks on money handling compartments © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 18 LCD touch screen with backlight Optional language display text and voice Bill Handling Cash Code Bill Note Recycler Coin Handling Tube: Cash Code, C2 Spider, 6 Tubes Hopper: Cash Code, C2 Spider, 2 Hoppers © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 19: Opus-7000 Procedures
1. Verify the Paystation is ON and Idle. 2. Open the Paystation door. 3. Toggle the Management Switch located in front of the iCore board. The Paystation displays the First Time Operation menu. [Fig 2.3A] Management Switch © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 20: Removing And Opening The Bank Note Vault
10. Pull off the top of the vault and unload the money. 11. Follow the previous steps in reverse order to close the bank note vault and re-insert the vault into the Paystation. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 21: Removing The Bank Note Acceptor
Note: The LED on the front of the Bank Note Acceptor represents if the BNA is ready to accept notes. If the LED is green the BNA is ready to accept notes. If the LED is red it is not ready to accept notes. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 22: Checking Bank Note Acceptor Firmware
3. Push the key in and simultaneously rotate the key 90 degrees to the left/counter-clockwise. 4. Pull out the coin vault. 5. Insert the coin vault key and simultaneously push down and rotate the key counter-clockwise. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 23: Connecting The Ethernet Cable
[Fig. 2.7A] Use one of the four lower-half ports of the switch. Note: Once the 7000 is configured with the proper parameters, verify the Ethernet port in use has link-light connectivity. [Fig. 2.7B] Paystation credit card connectivity diagram. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 24: Installing The Receipt Paper
7. Once the receipt roll is in place, feed the end of the receipt paper beneath the receipt tension bar and into the back of the receipt printer. The receipt printer automatically grabs the paper after the proper sensor is triggered. [Fig. 2.8A] [Fig. 2.8B] Receipt paper and roller © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 25: Removing The Coin Hoppers
7. Pull the hopper horizontally towards the right side of the Paystation to slide the hopper out of its rails. [Fig. 2.9A] The left hopper is tilted at its maximum angle. Pull horizontally to remove. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 26: Accessing The Coin Dispenser Door
It is suggested to mark the cassette and its corresponding bay, if not already marked. [Fig. 2.11A] Push the cassette lock and pull the cassette at a 45° angle to remove © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 27: Inserting A Receipt Header Logo
The Lost Ticket button is displayed in the lower-right corner of the display once the Paystation entrance loop is armed. Note: The Lost Ticket button can be a pre-determined flat fee, or a negotiated fee. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 28: Version Verification
• Flash Drive 3.0.2 Software Checklist Verify these pieces of software are available for use at the device. These files are obtainable through Amano McGann University. • Putty, Advanced IP Scanner, and XCA Installed on Laptop • Binaries for device being updated •...
Page 29: Device Binaries
2. Start the First Time Operation menu by toggling the Management Switch located in front of the iCore board. The Application Version: AMI Ver is displayed in the First Time Operation menu. This is the Paystation’s binary version. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 30: Io-100
[Fig. 3.3A] A firmware version of 5.x.x designates OPUS (TCP/IP) firmware 9. Use section 4.3.1 if the Firmware Version is below r792. Use section 4.3.2 if the Firmware Version is r792 or above. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 31: Updating Software & Firmware
Note: If the debug cable is not shown, Windows may not have properly installed the driver. Ensure the driver can be downloaded automatically by enabling internet access and re-inserting the debug cable into the laptop. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 32: Updating The Smartcash/Clm Firmware
9. Navigate to the SD card and double click CLMUpdate.exe located on the root of the SD card. 10. Click Browse 11. Browse to the ATD_(version number)_SmartCash file located on the root of the SD card. Select the ATD file. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 33: Updating The Io100
IO100 to the latest version using the USB flash drive recovery method. 1. Download the latest IO100 firmware from Amano McGann University and copy the firmware folder to a flash drive. The firmware will need to be the only file on the drive.
Page 34: Revision 792 And Above
792 or higher. 1. If the certificates are not already created, refer to the SSL Certificate Instructions found on Amano McGann University for instructions to create the IO100 certificates using the AMICA Certificate Creator. 2. Power the OPUS-7000 OFF.
Page 35 ‘1’ of this section. 25. Select one of the three certificate files that were created. Click Upload and wait for the upload to finish. Repeat steps 24 and 25 for the remaining two files. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 36: Updating Repm Firmware
4.4 Updating REPM Firmware Note: Only for devices with current REPM firmware 1.31 and above. 1. Download the REPM update tool from Amano McGann University. 2. Extract the .zip and open the REPM update tool folder. 3. Run the CDM v2.08.30 WHQL Certified.exe driver installation package if the FTDI driver has not yet been installed.
Page 37: Updating The Repm Imager
REPM firmware. 17. Exit the Firmware Upgrade application. 4.5 Updating the REPM Imager 1. Run the USB Drivers Installer EGFP0607 located on Amano McGann University. 2. Run the UniversalMenuTool2DVersion_English installer to install the Universal MenuTool 2D.
Page 38 WARNING: Once the update is started, do NOT press Cancel. Note: If the application displays Timeout Warning, the application has not timed out. Please allow 2-3 minutes for the update process to complete. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 39: Updating The Device Binaries
4. Copy the Paystation binaries from the SD\Binaries location on the SD card and back them up on the laptop. 5. Copy the new binaries downloaded from Amano McGann University and paste them on the SD card. Overwrite the current Binaries folder.
Page 40: Configuring The Paystation
Write down the card type on the ticket. 9. Repeat steps 5-8 to create the remaining card types. Create at least one card for each card type. 10. Exit the Card Issue menu when finished. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 41: Configuring Parameters
4. Name the site and set a synchronization time. Click OK when finished. 5. The new site adds itself to the communications tree. Right-click the new site and select Add Port... 6. Click the Port Number dropdown and select Network Port. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 42: Initial Fill
Total and a Note Unit Total report are printed from the receipt printer. The reports show the previous, received, and dispensed quantities for each of the denominations. The Paystation will return back to the idle screen. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
Page 45: Aiphone Intercom
OPUS-7000 Installation Manual 6.3 AiPhone Intercom Note: This wiring refers to terminal CN8 on the iCore board. © Copyright 2014 Amano McGann, Inc. OPUS7000_Installation_10032014...
