OPTILAB TWL-C-M Series User Manual page 8

TWL-C-M User's Manual
3
1
F
EATURE
 AC P
S
OWER OCKET
 AC P
S
OWER WITCH
 LED I
NDICATORS
 L
E
ASER NABLE
S
WITCH
 USB / DB9
C
OMMUNICATION
P
ORTS
 DB15 E
LECTRICAL
P
ORT
 M
DC O
OLEX UT
Optilab, LLC
600 E. Camelback Road, Phoenix, AZ 85012
Phone: (602) 343-1496, Fax: (602) 343-1489, Email: sales@oequest.com

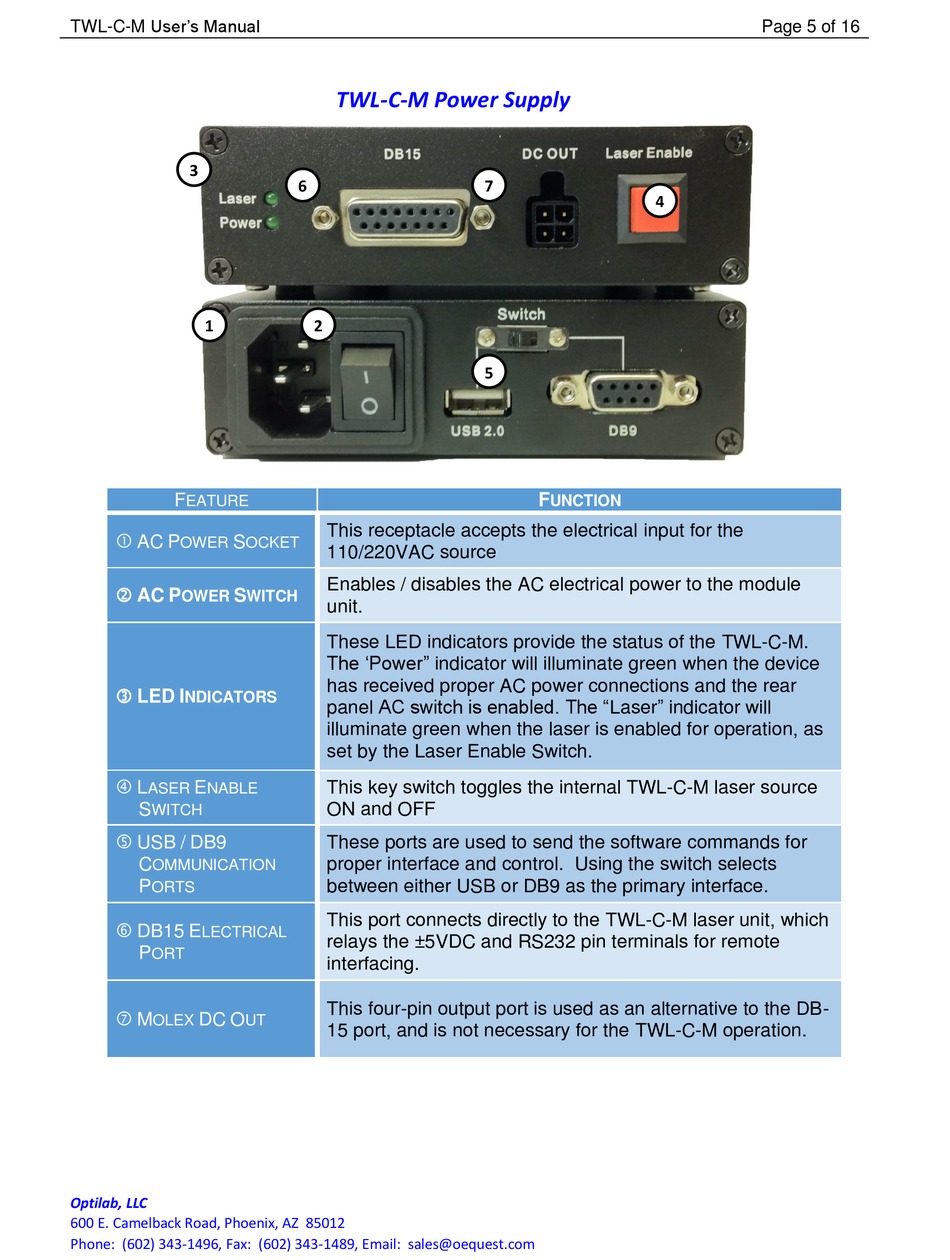

TWL-C-M Power Supply
6
2
This receptacle accepts the electrical input for the
110/220VAC source
Enables / disables the AC electrical power to the module
unit.
These LED indicators provide the status of the TWL-C-M.
The 'Power" indicator will illuminate green when the device
has received proper AC power connections and the rear
panel AC switch is enabled. The "Laser" indicator will
illuminate green when the laser is enabled for operation, as
set by the Laser Enable Switch.
This key switch toggles the internal TWL-C-M laser source
ON and OFF
These ports are used to send the software commands for
proper interface and control. Using the switch selects
between either USB or DB9 as the primary interface.
This port connects directly to the TWL-C-M laser unit, which
relays the ±5VDC and RS232 pin terminals for remote
interfacing.
This four-pin output port is used as an alternative to the DB-
15 port, and is not necessary for the TWL-C-M operation.
7
4
5
F
UNCTION
Page 5 of 16
