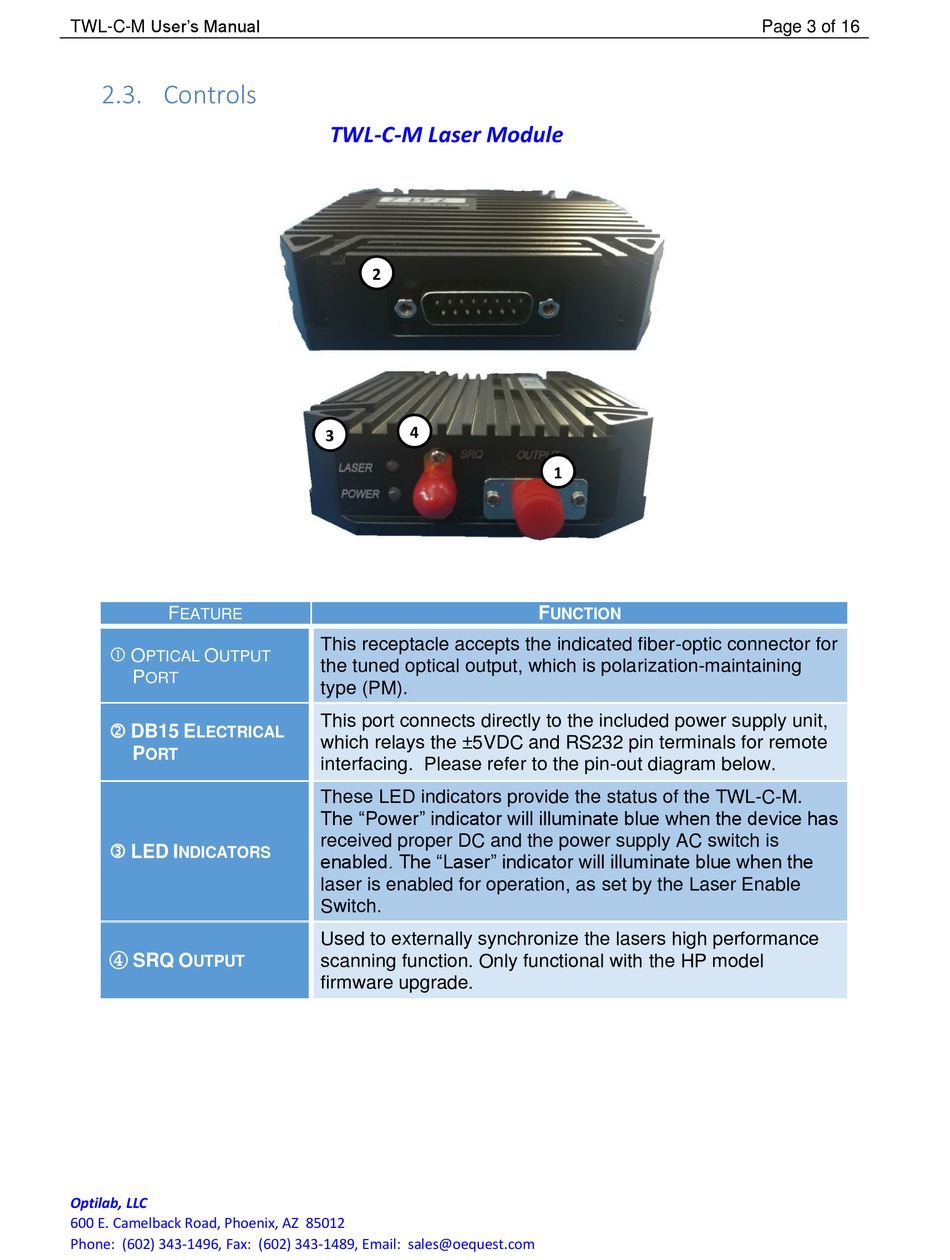

2.3. Controls

F
EATURE
 O
O
PTICAL UTPUT
P
ORT
 DB15 E
LECTRICAL
P
ORT
 LED I
NDICATORS
④ SRQ O
UTPUT
Optilab, LLC
600 E. Camelback Road, Phoenix, AZ 85012
Phone: (602) 343-1496, Fax: (602) 343-1489, Email: sales@oequest.com
TWL-C-M Laser Module
2
4
3
This receptacle accepts the indicated fiber-optic connector for
the tuned optical output, which is polarization-maintaining
type (PM).
This port connects directly to the included power supply unit,
which relays the ±5VDC and RS232 pin terminals for remote
interfacing. Please refer to the pin-out diagram below.
These LED indicators provide the status of the TWL-C-M.
The "Power" indicator will illuminate blue when the device has
received proper DC and the power supply AC switch is
enabled. The "Laser" indicator will illuminate blue when the
laser is enabled for operation, as set by the Laser Enable
Switch.
Used to externally synchronize the lasers high performance
scanning function. Only functional with the HP model
firmware upgrade.
