3. Software

'Optilab TWL GUI' is provided to control TWL-C-M. There are main three categories
in software, 'General', 'Laser Setting', and 'Scan Mode' depends on usage. Please
refer to following instruction for more detail.

3.1. Software Interface and Control

For the standard TWL-C-M, connecting the rackmount unit to an external PC will
allow for parameter monitoring and power and wavelength adjustments.
Using the front panel USB 2.0 port and an appropriate Optilab TWL software

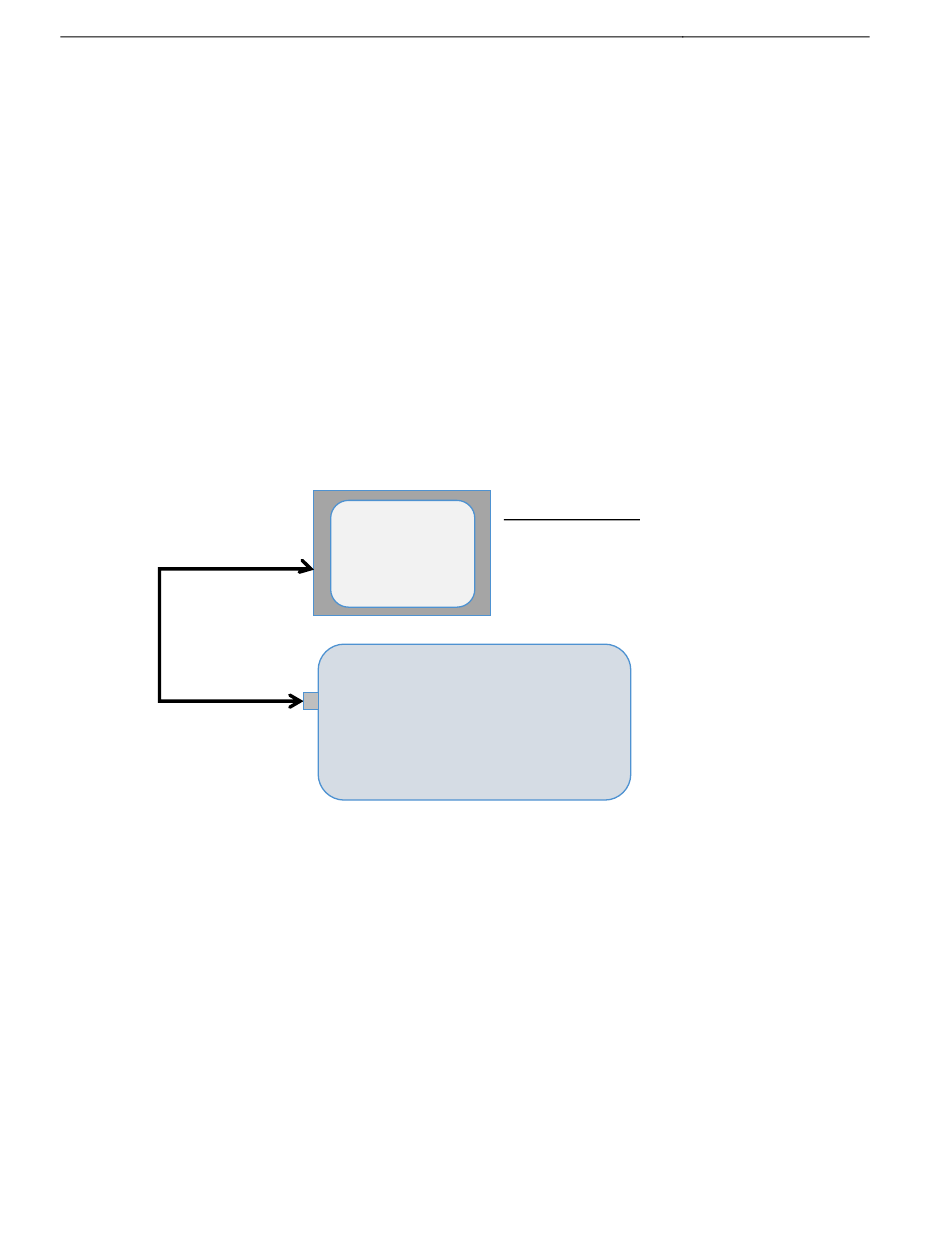

(Provided by Optilab), connect the TWL-C-M to a PC using the following connection
diagram and serial port settings:
USB 2.0 Port
on Computer
Standard
USB Cable
Optilab, LLC
600 E. Camelback Road, Phoenix, AZ 85012
Phone: (602) 343-1496, Fax: (602) 343-1489, Email: sales@oequest.com
Serial Port Settings
Baud Rate: 9600 bps
Computer Data Bits: 8
Stop bits: 1
Parity: None
Flow Control: None
USB 2.0 Port
Front Panel
TWL-C-M
