X12SDV-4C/8C/10C-SP6F
X12SDV-8CE-SP4F
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X12SDV-4C-SP6F and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro X12SDV-4C-SP6F

Summary of Contents for Supermicro X12SDV-4C-SP6F

  • Page 1 X12SDV-4C/8C/10C-SP6F X12SDV-8CE-SP4F USER'S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 4.0 x16 slot or two PCIe 4.0 x8 slots, and three M.2 slots (one M-Key, one B-Key, one E-Key). The Supermicro X12SDV-4C/8C/SP6F series features six LAN ports including two 25GbE and four GbE. The Supermicro X12SDV-8CE-SP4F motherboard is designed to support extended working temperatures with two 25GbE and two GbE ports.
  • Page 4 San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 5: Table Of Contents

    Preface Table of Contents Chapter 1 Introduction 1.1 Checklist ..........................8 Quick Reference .......................12 Quick Reference Table ......................14 Motherboard Features .......................16 1.2 Processor and Chipset Overview ..................19 1.3 Special Features ........................19 Recovery from AC Power Loss ..................19 1.4 System Health Monitoring ....................20 Onboard Voltage Monitors ....................20 Fan Status Monitor with Firmware Control ...............20 Environmental Temperature Control .................20...
  • Page 6 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 2.6 Connectors .........................37 Power Connections ......................37 Headers ..........................39 2.7 Jumper Settings .........................50 How Jumpers Work ......................50 2.8 LED Indicators ........................56 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................59 Before Power On ......................59 No Power ..........................59 No Video ...........................60 System Boot Failure ......................60 Memory Errors ........................60...
  • Page 7 Preface Appendix D UEFI BIOS Recovery...

  • Page 8: Checklist

    Introduction Congratulations on purchasing your computer motherboard from an industry leader. Supermicro motherboards are designed to provide you with the highest standards in quality and performance. In addition to the motherboard, several important parts that are included in the retail box are listed below.
  • Page 9 Chapter 1: Introduction Figure 1-1. X12SDV-4C-SP6F Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.

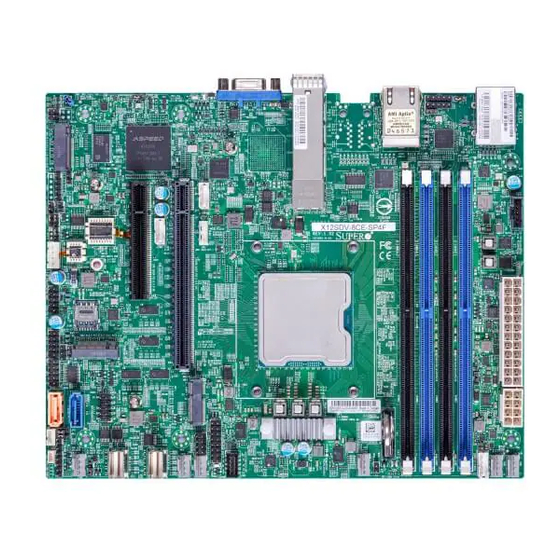

  • Page 10 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Figure 1-1. X12SDV-8CE-SP4F Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.
  • Page 11 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...

  • Page 12: Quick Reference

    JSDP4 JNVI2C1 JOPPS LEDT4 LEDT3 JLANLED2 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 JPI2C1 JLANLED1 SFP1 JPME2 JRK1 LAN5/6 JPME2 X12SDV-4C-SP6F JWD1 REV: 1.10 DIMMA1 JWD1 DESIGNED IN USA JPL3 DIMMA2 JIPMB1 JRK1 JPH1 JPH1 DIMMB1 JMD2_SRW2 DIMMB2 JIPMB1 JMD2_SRW2 JPWR1 USB2/3...
  • Page 13 Chapter 1: Introduction Figure 1-3. Motherboard Model Variation Table X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F Variations Motherboard Model X12SDV-4C- X12SDV-8C-SP6F X12SDV-8CE- X12SDV-10C- SP6F SP4F SP6F Processor Name D-1718T D-1736NT D-1732TE D-1747NTE Number of Cores Cache 10MB 15MB 15MB 15MB Processor TDP Processor Base Frequency 2.6 GHz 2.7 GHz 1.9 GHz...

  • Page 14: Quick Reference Table

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Quick Reference Table Jumper Description Default Setting SIM Card Detection Pins 1-2 (High Active) JBM1 IPMI Shared LAN Enable/Disable Open (Enabled) JBT1 CMOS Clear Open (Normal) JNS1 SlimSAS Interface Selection Pins 2-3 (PCIe x4) JPF1 Power Force On Pins 1-2 (ATX)
  • Page 15 Chapter 1: Introduction Connector Description JMD1_SRW1, JMD2_SRW1, M.2 Mounting Holes JM2_SRW2, JMD3_SRW1 JNVI2C1 Non-Volatile Memory (NVMe) I C Header JOPPS Reserved for One Pulse Per Second JPH1 4-pin HDD Power Connector JPI2C1 Power System Management (SMB) I C Header JPWR1 24-pin ATX Power Connector 8-pin 12V DC Power Connector for CPU (Required) or alternate single power input for JPV1...

  • Page 16: Motherboard Features

    Up to 256GB of ECC and Non-ECC RDIMM/UDIMM DDR4 memory with speeds of up to 2933 MT/s in four memory slots DIMM Size • 64GB Note: For the latest CPU/memory updates, refer to our website at http://www.supermicro.com/products/motherboard. Expansion Slots • One PCIe 4.0 x16 Slot or two PCIe 4.0 x8 Slots •...
  • Page 17 Chapter 1: Introduction Motherboard Features Peripheral Devices • Two USB 3.0 ports on the rear I/O panel (USB4/5) • Two front accessible USB 2.0 headers with two USB connections (USB0/1, USB2/3) BIOS • 256Mb AMI BIOS SPI Flash BIOS ® •...
  • Page 18 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Figure 1-4. System Block Diagram DDR4 2400/2667/2933 MHz PCIe 4.0 x16 PCIe Switch JPCIe1 SLOT7 PCIe 4.0 x16 PE1[15:0] JLAN1 JPCIe2 SLOT6 PCIe 4.0 x8 25G PHY PCIe 3.0 x1 I210IT Flexible I/O SFP28 PCIe 3.0 x1 Quad0 I210IT...

  • Page 19: Processor And Chipset Overview

    Chapter 1: Introduction 1.2 Processor and Chipset Overview Built upon the functionality and capability of the Intel Xeon D-1700 processor series, the X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F motherboards provide system performance, power efficiency, and feature sets to address the needs of next-generation computer users.

  • Page 20: System Health Monitoring

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 1.4 System Health Monitoring Onboard Voltage Monitors The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, a warning is given, or an error message is sent to the screen. You can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

  • Page 21: Acpi Features

    Windows operating systems. For detailed information regarding OS support, refer to the Supermicro website. 1.6 Power Supply As with all computer products, a stable power source is necessary for proper and reliable operation.

  • Page 22: Chapter 2 Installation

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...

  • Page 23: Motherboard Installation

    JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...

  • Page 24: Installing The Motherboard

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Installing the Motherboard 1. Install the I/O shield into the back of the chassis, if applicable. 2. Locate the mounting holes on the motherboard. See the previous page for the location. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 25: Memory Support And Installation

    Chapter 2: Installation 2.3 Memory Support and Installation Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to pre- vent any possible damage. Memory Support The X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F motherboards support up to 256GB of ECC and Non-ECC RDIMM/UDIMM DDR4 memory with speeds of up to 2933MT/s in four memory slots.

  • Page 26: General Guidelines For Optimizing Memory Performance

    JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...

  • Page 27: Dimm Installation

    JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 DIMMB2. For the system to work properly, SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA use memory modules of the same type JIPMB1 JRK1 JPH1 and speed. JMD2_SRW2 JPWR1 JSIM1 2.

  • Page 28: Rear I/O Ports

    JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 29 LEDM1 4. SFP LAN5/6 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 5. IPMI LAN SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 30 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 31 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...

  • Page 32: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 33 Chapter 2: Installation Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS – see Chapter 4). To turn off the power when the system is in suspend mode, press the button for 4 seconds or longer.
  • Page 34 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Overheat (OH)/Fan Fail/PWR Fail LED Connect an LED cable to pins 7 and 8 to use the Overheat (OH)/Fan Fail/PWR Fail LED connections. The LED on pin 8 provides warnings of overheat, fan failure, or power failure. Refer to the tables below for pin definitions.
  • Page 35 Chapter 2: Installation HDD LED The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to pin 14 to show hard drive activity status. Refer to the table below for pin definitions. HDD LED Pin Definitions (JF1) Pins Definition...
  • Page 36 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Power Fail LED Connect an LED cable to Power Fail connections on pins 5 and 6 of JF1 to provide warnings for a power failure. Refer to the table below for pin definitions. PWR Fail LED Indicator Status Pins Definition...

  • Page 37: Connectors

    JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 38 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...

  • Page 39: Headers

    JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 40 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 41 4. FAN4 Header JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 5. FANA Header SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA 6. FANB Header JIPMB1 JRK1 JPH1 JMD2_SRW2 7. BMC I C Header JPWR1 8. BMC I...
  • Page 42 I-SATA 3.0 Ports This motherboard has two I-SATA 3.0 ports (I-SATA1, I-SATA3). I-SATA1 can be used with Supermicro SuperDOMs that are yellow SATA DOM connectors with power pins built in, and do not require external power cables. Supermicro SuperDOMs are backwards compatible with regular SATA HDDs or SATA DOMs that need external power cables.
  • Page 43 LEDM1 4. JSDP3 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 5. JSDP4 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 44 LAN1/2 LEDM1 4. LAN5/6 Activity LED JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 45 3. M.2 Slot (E-key 2230) JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 4. Nano SIM Slot SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 46 Clock Data Power Fail Ground NVMe I C Header The connector at JNVI2C1 is a management header for the Supermicro AOC NVMe PCIe peripheral cards. Connect the I C cable to these connectors. 1. Power SMB I C Header JPL1...
  • Page 47 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 48 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 49 Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. Go to the following link for more information on the TPM: http://www.supermicro.com/manuals/other/TPM.pdf. Trusted Platform Module Header Pin Definitions...

  • Page 50: Jumper Settings

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 2.7 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.
  • Page 51 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 52 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 53 LAN1/2 LEDM1 4. Manufacturing Mode JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 54 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 55 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...

  • Page 56: Led Indicators

    JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 57 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...
  • Page 58 JMD1_SRW1 LAN3/4 LAN1/2 LEDM1 JOPPS LEDT4 LEDT3 JMD2_SRW1 JPI2C1 JNVI2C1 LEDT1 LEDT2 SFP1 LAN5/6 JPME2 X12SDV-4C-SP6F REV: 1.10 JWD1 DESIGNED IN USA JIPMB1 JRK1 JPH1 JMD2_SRW2 JPWR1 JSIM1 JMD2 M.2_H PCIe 3.0 X2/S-SATA 3.0 JPF1 JMD3 M.2-H PCIe 3.0 X1...

  • Page 59: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 60: No Video

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual No Video 1. If the power is on, but you have no video, remove all add-on cards and cables. 2. Use the speaker to determine if any beep codes are present. Refer to Appendix A for details on beep codes.

  • Page 61: Losing The System's Setup Configuration

    Chapter 3: Troubleshooting Losing the System's Setup Configuration 1. Make sure that you are using a high-quality power supply. A poor-quality power supply may cause the system to lose the CMOS setup information. Refer to Chapter 2 for details on recommended power supplies. 2.
  • Page 62 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 3. Use the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with the CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

  • Page 63: Technical Support Procedures

    Before contacting Technical Support, take the following steps. Also, note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problems with the specific system configuration that was sold to you.

  • Page 64: Frequently Asked Questions

    Note: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recov- ery instructions, refer to the AMI BIOS Recovery Instructions posted at http://www.

  • Page 65: Battery Removal And Installation

    Chapter 3: Troubleshooting 3.4 Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it.

  • Page 66: Returning Merchandise For Service

    For faster service, you can also request a RMA authorization online (http://www.supermicro. com/RmaForm/). This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.

  • Page 67: Chapter 4 Uefi Bios

    Chapter 4: BIOS Chapter 4 UEFI BIOS 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 68: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset. Supermicro X12SDV BIOS Version This item displays the version of the BIOS ROM used in the system.
  • Page 69 Chapter 4: BIOS Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 70: Advanced

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 4.3 Advanced Use the arrow keys to select the Advanced menu and press <Enter> to access the menu items: Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to default manufacturer settings.
  • Page 71 Chapter 4: BIOS Re-try Boot If this feature is enabled, the BIOS automatically reboots the system from a specified boot device after its initial boot failure. The options are Disabled and EFI Boot. Power Configuration Watch Dog Function If enabled, the Watch Dog Timer allows the system to reset or generate NMI when it has expired for more than five minutes.
  • Page 72 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual • Microcode Revision • L1 Cache RAM (Per Core) • L2 Cache RAM (Per Core) • L3 Cache RAM (Per Package) • Processor 0 Version CPU1 Core Disable Bitmap CPU1 Core Disable Bitmap Available Bitmap CPU Core Count CPU1 Cores Enable Use this feature to input how many CPU cores to enable.
  • Page 73 Chapter 4: BIOS DCU IP Prefetcher (Available when supported by the CPU) Select Enable for Data Cache Unit (DCU) IP Prefetcher support, which prefetches IP addresses to improve network connectivity and system performance. The options are Enable and Disable. LLC Prefetch If set to Enable, the hardware prefetcher prefetches streams of data and instructions from the main memory to the L3 cache to improve CPU performance.
  • Page 74 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Total Memory Encryption Multi-Tenant (TME-MT) Max TME-MT Keys Software Guard Extension (SGX) SGX Factory Reset SW Guard Extensions (SGX) SGX Package Into In-Band Access Limit CPU PA to 46 Bits Use this feature to limit the CPU physical address to 46 bits to support older Hyper-V. The options are Disable and Enable.
  • Page 75 Chapter 4: BIOS EIST PSD Function This feature allows you to choose between Hardware and Software to control the proces- sor's frequency and performance (P-state). In HW_ALL mode, the processor hardware is responsible for coordinating the P-state, and the OS is responsible for keeping the P-state request up to date on all Logical Processors.
  • Page 76 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Enhanced Halt State (C1E) Select Enable to use Enhanced Halt State technology, which significantly reduces the CPU's power consumption by reducing its clock cycle and voltage during a Halt-state. The options are Disable and Enable. Package C State Control Package C State This feature allows you to set the limit on the C State package register.
  • Page 77 Chapter 4: BIOS Chipset Configuration  Warning: Setting the wrong values in the following features may cause the system to malfunc- tion. North Bridge Uncore Configuration  Uncore Configuration • Number of CPU • Number of IIO • Current UPI Link Speed •...
  • Page 78 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual LLC Dead Line Alloc Select Enable to opportunistically fill dead lines in the LLC. Select Disable to never fill dead lines in LLC. The options are Disable, Enable, and Auto. Memory Configuration  Enforce POR Select Plan of Record (POR) to enforce POR restrictions on DDR4 frequency and volt- age programming.
  • Page 79 Chapter 4: BIOS Correctable Error Threshold Use this feature to specify the threshold value for correctable memory-error logging, which sets a limit on the maximum number of events that can be logged in the memory error log at a given time. The default setting is 512. Leaky Bucket Low Bit Use this feature to set the Low Bit value for the Leaky Bucket algorithm, which is used to check the data transmissions between the CPU socket and the memory controller.
  • Page 80 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual PCIe Slot6 Use this feature to enable or disable PCIe Slot6. The options are Enable and Disable. IOU0 (IIO PCIe Port 1) Use this feature to configure the PCIe Bifurcation setting for IIO PCIe Port 1. The setting in PCIe Slot6 affects the options shown in this feature.
  • Page 81 Chapter 4: BIOS ACS Control Select Enable to program Access Control Services (ACS) to the chipset PCIe root port bridge. Select No to program ACS to all PCIe root port bridges. The options are Enable and Disable. Interrupt Remapping Use this feature to enable Interrupt Remapping support, which detects and controls external interrupt requests.
  • Page 82 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual NVME/SAS #1 VMD Use this feature to enable or disable hot plug for this port. The options are Dis- able and Enable. JMD1:M.2-H PCIe 3.0 X4 3.0 VMD Use this feature to enable or disable hot plug for this port. The options are Dis- able and Enable.
  • Page 83 Chapter 4: BIOS IIO eDPC Support Use this feature to enable or disable IIO enhanced DPC support. The options are Dis- able, On Fatal Error, and On Fatal and Non-Fatal Errors. *If the feature above is set to On Fatal Error or On Fatal and Non-Fatal Errors, the next two features are available for configuration: IIO eDPC Interrupt Use this feature to enable or disable IIO enhanced DPC interrupt.
  • Page 84 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual • Backup Firmware Version • Recovery Firmware Version • ME Firmware Status #1 • ME Firmware Status #2 • Current State • Error Code PCH SATA0 Configuration  SATA Controller 0 This feature enables or disables the onboard SATA controller supported by the Intel PCH chip.
  • Page 85 Chapter 4: BIOS SATA Port 1/3/6/7 Spin Up Device Set this feature to enable or disable the PCH to initialize the device. The options are Disable and Enable. SATA Port 1/3/6/7 SATA Device Type Use this feature to specify if the SATA port specified should be connected to a Solid State Drive or a Hard Disk Drive.
  • Page 86 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Trusted Computing  The following Trusted Platform Module (TPM) information will display if a TPM 2.0 module is detected: • Firmware Version • Vendor Name Security Device Support If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for Trusted Platform Module (TPM) support to enhance data integrity and network security.
  • Page 87 Chapter 4: BIOS Endorsement Hierarchy Use this feature to disable or enable endorsement hierarchy for privacy control. The options are Disabled and Enabled. PH Randomization Use this feature to disable or enable Platform Hierarchy (PH) Randomization. The options are Disabled and Enabled. ACPI Settings ...
  • Page 88 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Super IO Configuration The following Super IO information is displayed: • Super IO Chip AST2600 Serial Port 1 Configuration Serial Port Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.
  • Page 89 Chapter 4: BIOS Serial Port Console Redirection  COM1 Console Redirection Select Enabled to enable console redirection support for the specified serial port. The options are Enabled and Disabled. *If the feature above is set to Enabled, the following features will be available for configuration: COM1 Console Redirection Settings Use this feature to specify how the host computer will exchange data with the client...
  • Page 90 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual COM1 Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full.
  • Page 91 Chapter 4: BIOS SOL Console Redirection Settings SOL Terminal Type Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 92 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual SOL Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. SOL Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
  • Page 93 Chapter 4: BIOS Bits Per Second This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).
  • Page 94 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Media Detect Count Use this option to specify the number of times media is checked. Press <+> or <-> on your keyboard to change the value. The default setting is 1. MAC::xxxxxxxxxxxx-IPv4 Network Configuration MAC::xxxxxxxxxxxx-IPv4 Network Configuration MAC::xxxxxxxxxxxx-IPv4 Network Configuration MAC::xxxxxxxxxxxx-IPv4 Network Configuration...
  • Page 95 Chapter 4: BIOS MAC::xxxxxxxxxxxx-IPv6 Network Configuration MAC::xxxxxxxxxxxx-IPv6 Network Configuration MAC::xxxxxxxxxxxx-IPv6 Network Configuration MAC::xxxxxxxxxxxx-IPv6 Network Configuration MAC::xxxxxxxxxxxx-IPv6 Network Configuration MAC::xxxxxxxxxxxx-IPv6 Network Configuration Enter Configuration Menu  Interface Name Interface Type MAC address Host addresses Route Table Gateway addresses DNS addresses Interface ID This feature shows the interface ID for the specified network device.
  • Page 96 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled. SR-IOV Support Use this feature to enable or disable Single Root IO Virtualization Support.
  • Page 97 Chapter 4: BIOS VGA Priority Use this feature to select VGA priority when multiple VGA devices are detected. Select Onboard to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard. CPU SLOT7 PCIe 4.0 X16 OPROM Use this feature to select which firmware type to be loaded for the add-on card in this slot.
  • Page 98 Use this feature to enter the second Supermicro KMS server IPv4 address in dotted-decimal notation. Supermicro KMS TCP Port number Use this feature to enter the Supermicro KMS TCP port number. The valid range is 100 – 9999. The default port is 5696. Supermicro KMS Time Out Use this feature to enter the KMS server connecting time-out (in seconds).
  • Page 99 Chapter 4: BIOS Supermicro KMS Server Retry Count Use this feature to set how many attempts to connect to the Supermicro KMS Server. Enter 0 to retry infinitely. The default value is 2. TimeZone Use this feature to set the time zone. A value of 0 is GMT+0. A value of 23 is GMT-1. The default value is 0.
  • Page 100 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Intel(R) I210 Gigabit Network Connection  Intel(R) I210 Gigabit Network Connection  Intel(R) I350 Gigabit Network Connection  Intel(R) I350 Gigabit Network Connection  Firmware Image Properties Option ROM version Unique NVM/EEPROM ID NVM Version NIC Configuration Link Speed Use this feature to specify the port speed used for the selected boot protocol.
  • Page 101 Chapter 4: BIOS Intel (R) Ethernet Connection E823-L for SFP  Intel (R) Ethernet Connection E823-L for SFP  Firmware Image Properties Option ROM version Unique NVM/EEPROM ID NVM Version NIC Configuration Wake On LAN Select Enabled for wake on LAN support, which will allow the system to wake up when an onboard LAN device receives an incoming signal.
  • Page 102 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual UEFI Driver Adapter PBA Device Name Chip Type PCI Device ID PCI Address Link Status MAC Address Virtual MAC Address TLS Authentication Configuration  This submenu allows you to configure Transport Layer Security (TLS) settings. Server CA Configuration Enroll Certification Enroll Certification Using File...
  • Page 103 Chapter 4: BIOS RAM Disk Configuration  Use this feature to configure RAM disk settings. Disk Memory Type Use this feature to specify the type of memory to create a RAM disk. The options are Boot Service Data and Reserved. Create raw Size (Hex): Use this feature to set the size of the raw RAM disk.
  • Page 104 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Driver Health  This feature provides the health status for the network drivers and controllers. Intel(R) PRO/1000 9.3.10 PCIe  Controller 5EE58C98 Child 0 Intel(R) I210 Gigabit Network Connection Intel(R) PRO/1000 9.3.10 PCIe  Controller 5EE56598 Child 0 Intel(R) I210 Gigabit Network Connection Intel(R) PRO/1000 9.3.10 PCIe...

  • Page 105: Event Logs

    Chapter 4: BIOS 4.4 Event Logs Use this menu to configure Event Log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled. Erasing Settings Erase Event Log If No is selected, data stored in the event log will not be erased.
  • Page 106 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual SMBIOS Event Log Standard Settings Log System Boot Event This option toggles the System Boot Event logging to enabled or disabled. The options are Disabled and Enabled. MECI The Multiple Event Count Increment (MECI) counter counts the number of occurences that a duplicate event must happen before the MECI counter is incremented.

  • Page 107: Bmc

    Chapter 4: BIOS 4.5 BMC Use this menu to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This feature indicates the IPMI firmware revision used in your system. IPMI STATUS This feature indicates the status of the IPMI firmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 108 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual When SEL is Full This feature allows you to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.
  • Page 109 Chapter 4: BIOS Station MAC Address Gateway IP Address This feature displays the Gateway IP address for this computer. The address can be manually entered. This should be in decimal and in dotted quad form (i.e., 172.31.0.1). VLAN This feature displays the virtual LAN settings. The options are Disabled and Enabled. VLAN ID This feature is enabled if VLAN is enabled.

  • Page 110: Security

    Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 4.6 Security Use this menu to configure the following security settings for the system. Administrator Password Press <Enter> to create a new, or change an existing, Administrator password. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility.
  • Page 111 Password Use this feature to set the SATA user password, which will allow you to configure the Supermicro Security Erase settings by using the SATA user password. HDD Security Configuration This section is available for configuration if a storage device is detected by the system.
  • Page 112 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Secure Boot  This section displays the contents of the following secure boot features: • System Mode • Vendor Keys • Secure Boot Secure Boot Use this feature to enable secure boot. The options are Disabled and Enabled. Secure Boot Mode Use this item to configure Secure Boot variables without authentication.
  • Page 113 Chapter 4: BIOS  Enroll EFI Image This feature allows the image to run in Secure Boot Mode. Enroll SHA256 Hash Certifi- cate of the image into the Authorized Signature Database. Device Guard Ready  Remove 'UEFI CA' from DB This feature allows you to decide if all secure boot variables should be saved.
  • Page 114 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Append Select Yes to add the DB from the manufacturer's defaults list to the existing DB. Select No to load the DB from a file.  Forbidden Signatures Update Select Yes to load the DBX from the manufacturer's defaults. Select No to load the DBX from a file.

  • Page 115: Boot

    Chapter 4: BIOS 4.7 Boot Use this menu to configure Boot settings. Fixed Boot Order Priorities This option prioritizes the order of bootable devices that the system boots from. Press <Enter> on each entry from top to bottom to select devices. •...
  • Page 116 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Add New Boot Option  This feature allows you to add a new boot option to the boot priority features for your system. Add Boot Option Use this feature to specify the name for the new boot option. Path for Boot Option Use this feature to enter the path for the new boot option in the format fsx:\path\filename.efi.

  • Page 117: Save & Exit

    Chapter 4: BIOS 4.8 Save & Exit Use this menu to save settings and exit from the BIOS. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Save &...
  • Page 118 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance.

  • Page 119: Appendix A Bios Codes

    Appendix A: BIOS Codes Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes During the Power-On Self-Test (POST) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 120 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual A.2 Additional BIOS POST Codes The AMI BIOS supplies additional checkpoint codes, which are documented online at http:// www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide"). For information on AMI updates, refer to http://www.ami.com/products/.

  • Page 121: Appendix B Software

    1. Create a method to access the MS Windows installation ISO file. That can be a USB flash or media drive. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 122 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner.
  • Page 123 The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver/. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive.
  • Page 124 B.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 125: Appendix C Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 126 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
  • Page 127 Appendix C: Standardized Warning Statements Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.
  • Page 128 Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 129 USB flash or media device. Note 1: If you cannot locate the "Super.ROM" file in your driver disk, visit our website www.supermicro.com to download the BIOS package. Extract the BIOS binary im- age into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
  • Page 130 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 3. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below: Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.
  • Page 131 Appendix D: UEFI BIOS Recovery 5. After the BIOS recovery process is completed, press any key to reboot the system. 6. Using a different system, extract the BIOS package into a USB flash drive. 7. Press <Del> during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu.
  • Page 132 Super X12SDV-4C/8C/10C-SP6F and X12SDV-8CE-SP4F User's Manual 8. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process. Note: Do not interrupt this process until the BIOS flashing is complete.
