SIMPLIHOME Brooklyn+Max WydenHall AXCWSHLOW-72-TB Manual

Low tv media stand
Hide thumbs

Advertisement

Quick Links

Download this manual

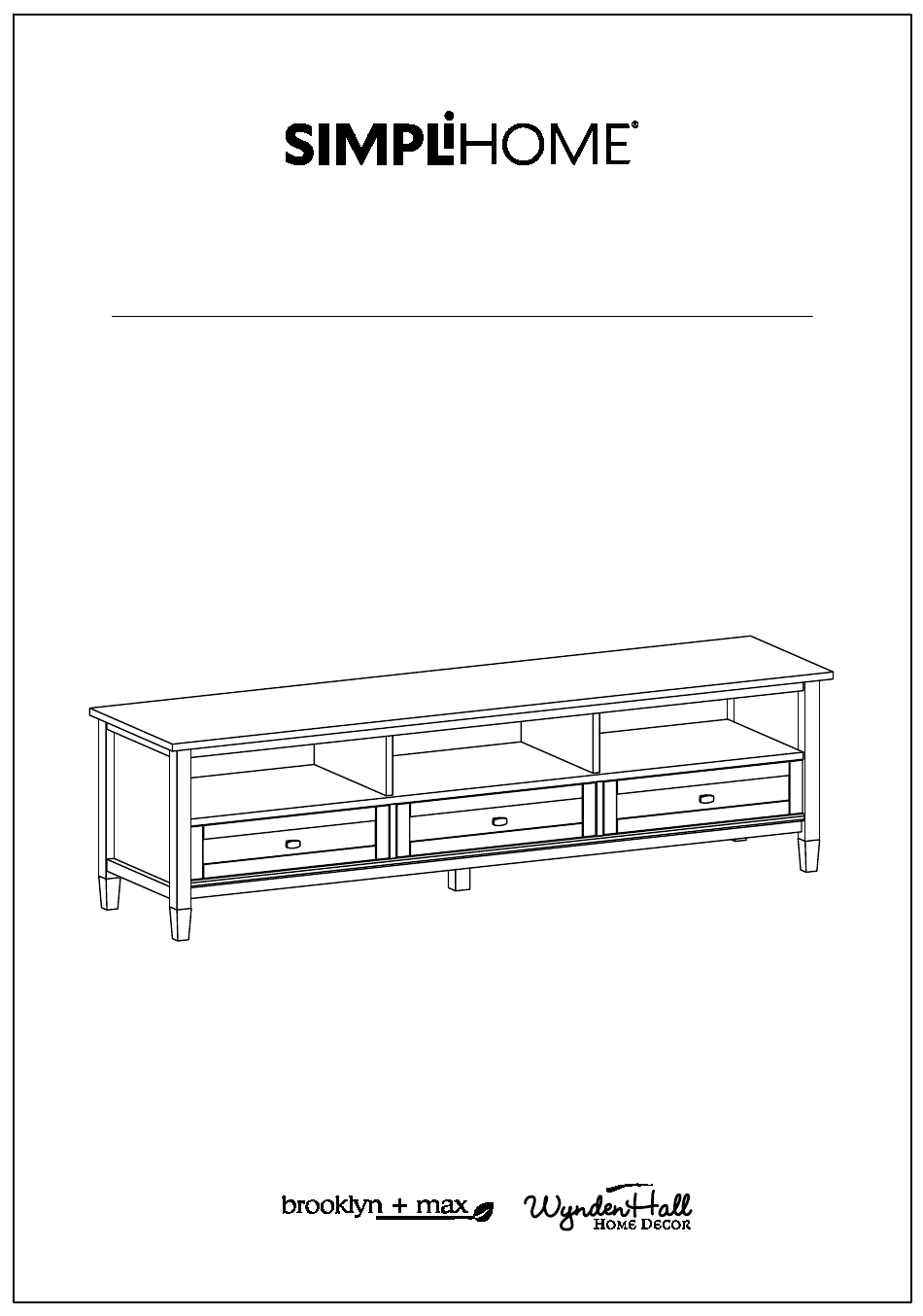

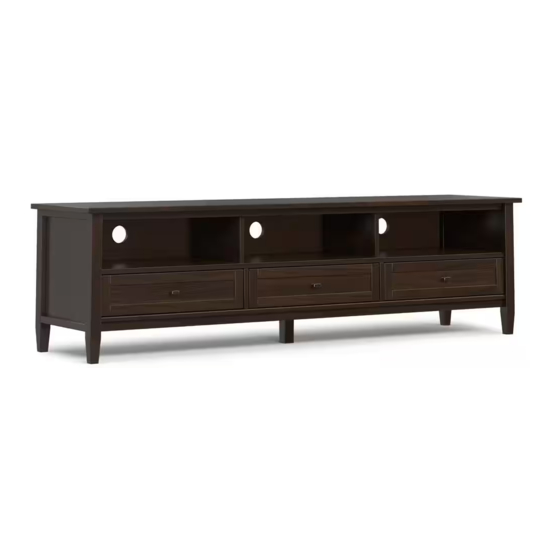

Warm Shaker / Norfolk / Lexington
72 inch Low TV Media Stand
Model # AXCWSHLOW-72-TB
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brooklyn+Max WydenHall AXCWSHLOW-72-TB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME Brooklyn+Max WydenHall AXCWSHLOW-72-TB

Summary of Contents for SIMPLIHOME Brooklyn+Max WydenHall AXCWSHLOW-72-TB

  • Page 1 Warm Shaker / Norfolk / Lexington 72 inch Low TV Media Stand Model # AXCWSHLOW-72-TB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.

  • Page 8: Maximum Load 25 Lbs

    WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over.
  • Page 9 Pre-Assembly Information Model # AXCWSHLOW-72-TB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME TOP DIVIDER BOTTOM DIVIDER QTY 1 QTY 2 QTY 2 Warning Label BOTTOM SUPPORT LEG MIDDLE SHELF BACK PANEL QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE...
  • Page 10 Pre-Assembly Information Model # AXCWSHLOW-72-TB Hardware Description CAM LOCK PIN ALLEN KEY BOLT ALLEN KEY BOLT CAM LOCK M6 X 40mm M6 X 30mm QTY 4 QTY 8 QTY 16 SETS ALLEN KEY SCREW WOOD DOWEL M6 X 30mm ALLEN KEY Ø8 X 30mm QTY 8 QTY 1...
  • Page 11 Components - Key Diagram Model # AXCWSHLOW-72-TB...
  • Page 12 Assembly Model # AXCWSHLOW-72-TB Step 1 1. Attach four Cam Lock Pins 3 into pre-drilled holes on back of Drawer Front I . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides JL , JR . 2.
  • Page 13 Assembly Model # AXCWSHLOW-72-TB Step 3 1. Slide Drawer Bottom L firmly into slots on Drawer Sides JL , JR and Drawer Front I . 2. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 3. Attach Drawer Back using two Phillips Screw Round Head 8 and Plastic Cross Nuts 9 through guide holes on each Drawer Side JL , JR.
  • Page 14 Assembly Model # AXCWSHLOW-72-TB Step 4 1. Use Phillips screwdriver to attach Handle 11 to Drawer Front I . Repeat Step 1 - 4 for the second and third drawer.
  • Page 15 Assembly Model # AXCWSHLOW-72-TB Step 5 1. Insert two Wood Dowels 6 into guide holes on Sides BL , BR , Dividers D , E , Middle Shelf F and Bottom Frame C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/3 length of Dowels should be exposed.
  • Page 16 Assembly Model # AXCWSHLOW-72-TB Step 6 1. Align Wood Dowels with guide holes and attach Dividers D to Middle Shelf F . 2. Use four Allen Key Screws 4 to attach Dividers D through guide holes. 3. Use Allen Key 5 to tighten Screws. Do not over-tighten.
  • Page 17 Assembly Model # AXCWSHLOW-72-TB Step 7...
  • Page 18 Assembly Model # AXCWSHLOW-72-TB Step 8 1. Align Wood Dowels with guide holes and attach Dividers E to Bottom Frame C . 2. Use four Allen Key Screws 4 to attach Bottom Frame C through guide holes. 3. Use Allen Key 5 to tighten Screws. Do not over-tighten.
  • Page 19 Assembly Model # AXCWSHLOW-72-TB Step 9 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Shelves C , F . 2. Use four Allen Key Bolts 2 to attach each Shelf C , F through guide holes. 3.
  • Page 20 Assembly Model # AXCWSHLOW-72-TB Step 10 1. Align Wood Dowels with guide holes and attach Top A to Sides BL , BR and Dividers D . 2. Use two Allen Key Bolts 1 to attach each Side BL , BR through guide holes. 3.
  • Page 21 Assembly Model # AXCWSHLOW-72-TB Step 11 1. Align Bottom Support Leg H with pre-drilled holes on back of Bottom Frame C . Use Phillips Screwdriver to tighten four Phillips Screws 10 .
  • Page 22 Assembly Model # AXCWSHLOW-72-TB Step 12 Warning Label Note: The back of the TV frame does not have pre-drilled holes to attach the back panels. 1. Attach Back Panel G to back frame by using Phillips Screws Round Head 7 . 2.
  • Page 23 Assembly Model # AXCWSHLOW-72-TB Step 13 1. Insert assembled drawers into glides on assembled TV.
  • Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
  • Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
