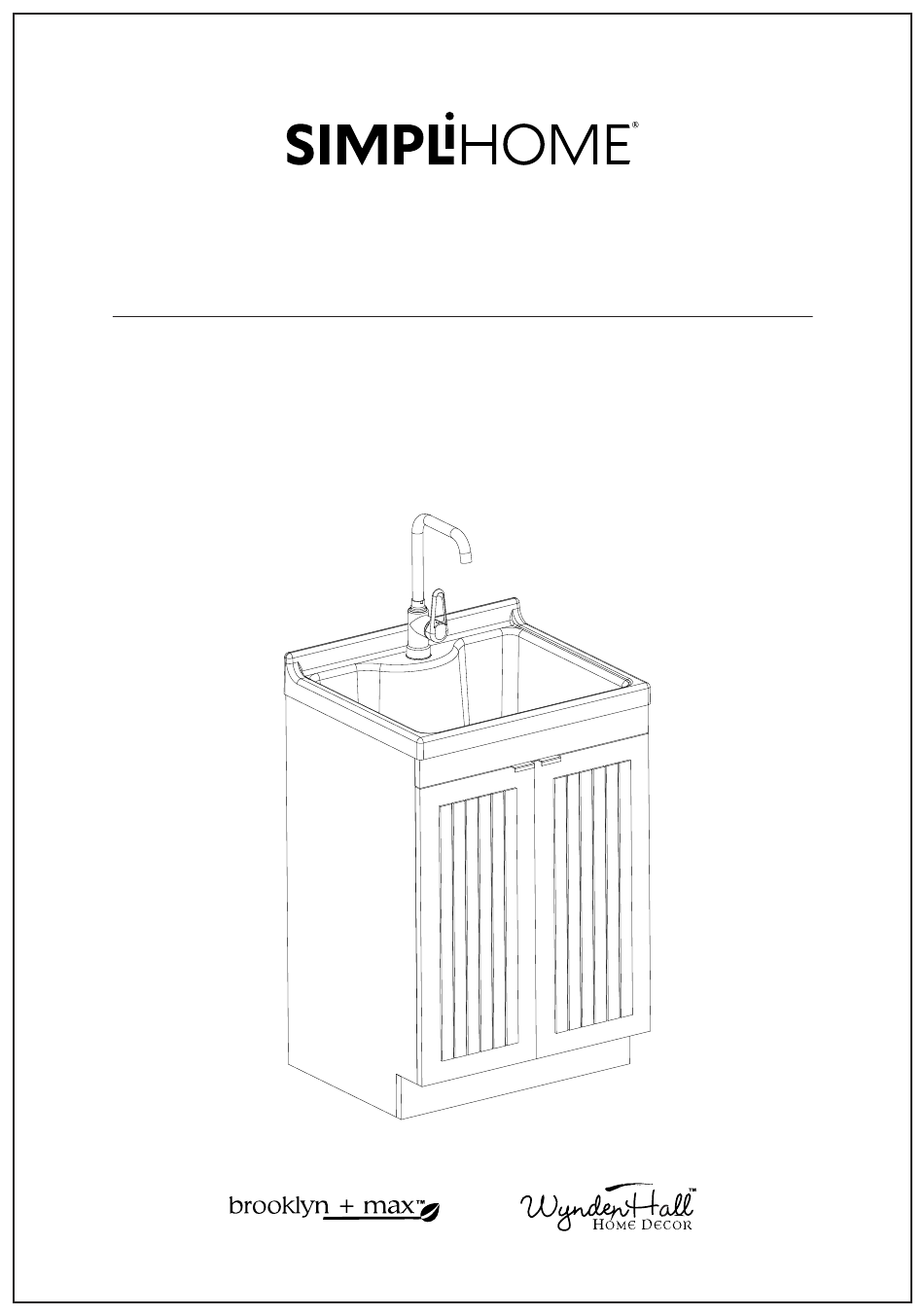

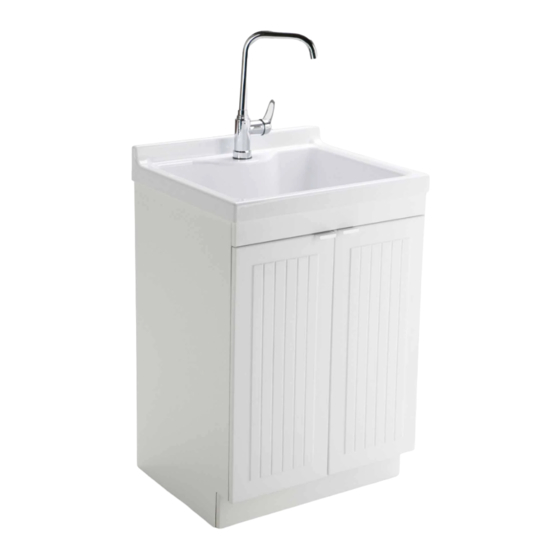

- Page 1 Murphy / Bishop / Guilford 24 inch Laundry Cabinet with Faucet and ABS Sink Model # AXCLDYMUR-AB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information This furniture is designed for indoor use. Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. - Page 6 Pre-Assembly Information Model # AXCLDYMUR-AB Cabinet Parts BOTTOM PANEL RIGHT SIDE PANEL BACK BOTTOM PANEL QTY 1 QTY 1 QTY 1 BACK TOP PANEL BACK MIDDLE PANEL LEFT SIDE PANEL QTY 1 QTY 1 QTY 1 KICK PLATE PANEL FRONT TOP PANEL LEFT DOOR QTY 1 QTY 1...
- Page 7 Pre-Assembly Information Model # AXCLDYMUR-AB Drain Parts DRAIN PLUG ASSEMBLY DRAIN BOWL ASSEMBLY DRAIN WASHER BLACK QTY 1 QTY 1 QTY 1 THREAD WASHER PIPE WASHER COUPLING BLACK QTY 1 QTY 1 QTY 1 STRAIGHT DRAIN PIPE BLACK COUPLING BLACK PIPE WASHER WHITE QTY 1 QTY 2...
-
Page 8: Hardware Parts
Pre-Assembly Information Model # AXCLDYMUR-AB Faucet Parts FAUCET BODY FAUCET WASHER RUBBER FAUCET WASHER STEEL QTY 1 QTY 2 QTY 1 BRASS NUT ASSEMBLY QTY 1 Hardware Parts CAM LOCK CAM PIN WOOD DOWEL QTY 23 QTY 23 QTY 13 SELF-TAPPING SCREW HANDLE SCREW M4 x 25... - Page 9 Components - Key Diagram Model # AXCLDYMUR-AB...
- Page 10 Assembly Model # AXCLDYMUR-AB Step 1 Screw Cam Pins (II) into the pre-drilled small holes on Left Panel (F) and Right Panel (B).
- Page 11 Assembly Model # AXCLDYMUR-AB Step 2 Insert Wood Dowels (III) into the pre-drilled holes of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (D), Back Middle Panel (E) and Front Top Panel (H). Insert Cam Locks (I) into the pre-drilled holes of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (D), Back Middle Panel (E) and Front Top Panel (H).
- Page 12 Assembly Model # AXCLDYMUR-AB Step 3 Attach the Left Panel (F) with Cam Pins (II) and Dowels into the pre-drilled holes. Insert Cam Locks (I) into the pre-drilled hole of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (D), Back Middle Panel (E) and Front Top Panel (H). Tighten with the Screwdriver.
- Page 13 Assembly Model # AXCLDYMUR-AB Step 4 Screw Cam Pins (II) into the pre-drilled small holes on Kick Plate Panel (G). Insert Cam Pins (II) into the pre-drilled holes on both Side Panels. Insert Cam Locks (I) into pre-drilled holes on both Side Panels. Tighten with the Screwdriver.
- Page 14 Assembly Model # AXCLDYMUR-AB Step 5 Use the Screwdriver to attach the Front Panel (K) to Front Top Panel (H), using Self-Tapping Screws (IV) M4 x 25.
- Page 15 Assembly Model # AXCLDYMUR-AB Step 6 Use the Screwdriver to attach the Right Door hinges to Side Panel (B) using Self-Tapping Screws (IV) M4 x 14. Use the Screwdriver to attach the Left Door hinges to Side Panel (F) using Self-Tapping Screws (IV) M4 x 14.
- Page 16 Assembly Model # AXCLDYMUR-AB Step 7 Use the Screwdriver to attach the Handle (VI) with Self-Tapping Screws (V) M4 x 12.
- Page 17 Assembly Model # AXCLDYMUR-AB Step 8 Wall Anchor Screw Pierce holes in the wall and insert Wall Anchors (VII) into the holes. Insert the Screw (VII) through the Panel (D) and then insert it into the Wall Anchor to lock in place.
- Page 18 Assembly Model # AXCLDYMUR-AB Step 9 Place a Rubber Washer (BB) onto the end of the Faucet (AA) and insert the faucet through the top of the Sink (L). From underneath the Sink (L), secure the Faucet (AA) to the Sink (L) using a Rubber Washer (BB), Steel Washer (CC) and Brass Nut Assembly (DD).
- Page 19 Assembly Model # AXCLDYMUR-AB Step 10 Place the Sink (L) with the attached Faucet (AA) on top of the cabinet.
- Page 20 Assembly Model # AXCLDYMUR-AB Step 11 Put the Drain Washer (3) on the top of the drain opening in the Sink (L). Put the Drain Bowl (2) on the Drain Washer (3) through the drain opening. From underneath the sink fasten the Threaded Washer (4) onto the Drain Bowl (2) and tighten. Insert the Drain Plug (1) into the Drain Bowl (2).
- Page 21 Assembly Model # AXCLDYMUR-AB Step 12 Fasten the nuts of the hoses (not included in package) to the nut ends of the faucet body. Fasten the nuts of the hoses (not included in package) to the water outlet: o Red striped hose to Hot water supply o Blue striped hose to Cold water supply Ensure to only tighten the nut and not twist the supply hose.
- Page 22 Assembly Model # AXCLDYMUR-AB Step 13 Put a Pipe Washer (5) onto the Straight Drain Pipe (7). Connect the Straight Drain Pipe (7) to the drain and fasten the Coupling (6). Put the Coupling (8) into the Straight Drain Pipe (7) and put a Pipe Washer (9) into the Straight Drain Pipe (7).
- Page 23 Assembly Model # AXCLDYMUR-AB Step 14 Use the Screwdriver to re-align or adjust the hinges that attach the doors to the cabinet.
