Summary of Contents for DALBO SUPERMAX 250

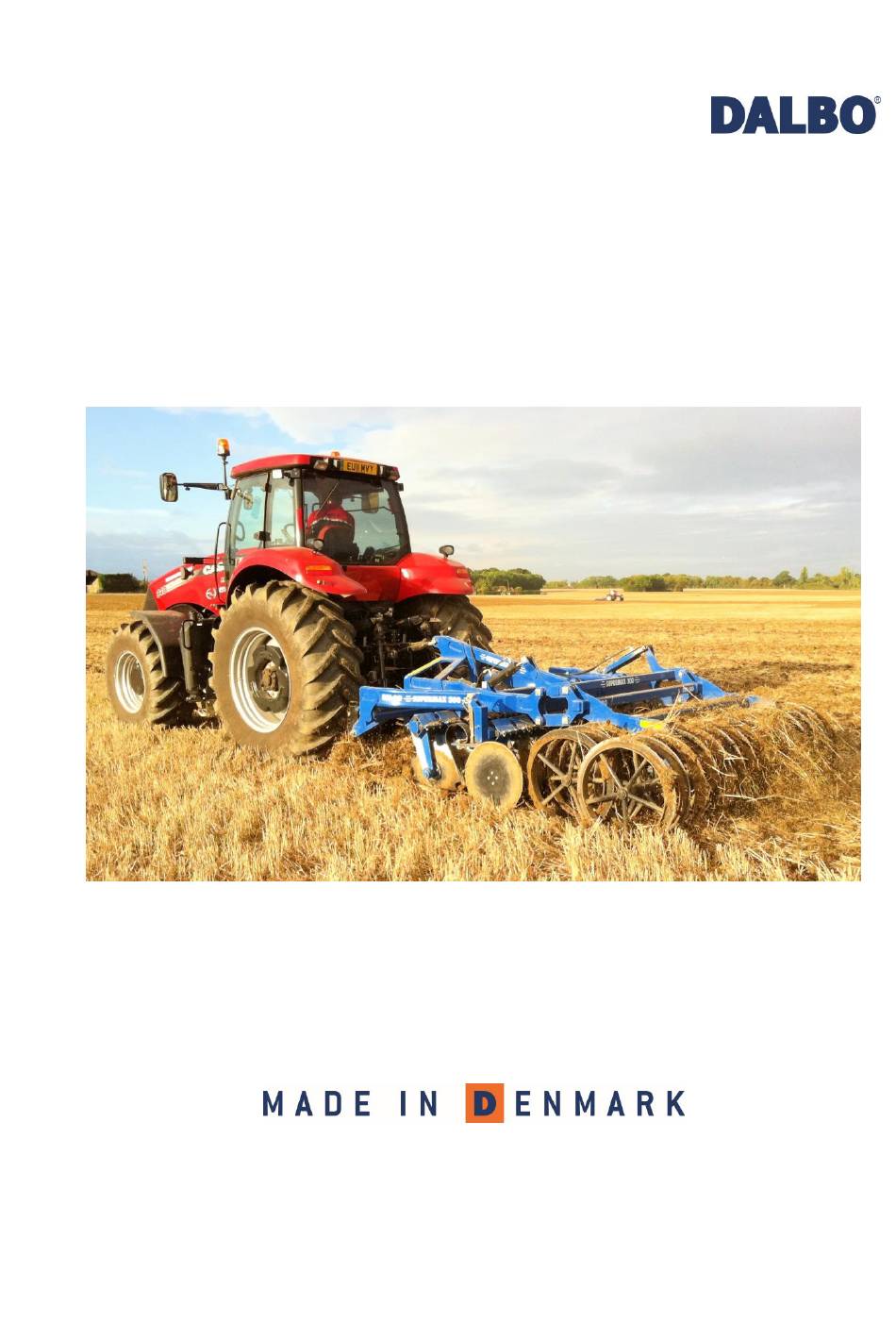

- Page 1 SUPERMAX 250/300 Serial no.: 100-XXX...
- Page 3 Congratulations on the purchase of your new SUPERMAX. For safety reasons and to achieve optimum service from the product, please read the User Guide before use. © Copyright 2011. All rights reserved, DALBO A/S This product has: Type no.: Serial no.:...
-
Page 5: Table Of Contents
Table of Contents SAFETY ............................6 ............................6 ENERAL ............................7 YDRAULICS ............................7 SSEMBLY ........................7 AINTENANCE AND REPAIR ..........................7 OAD TRANSPORT ............................8 ORRECT USE TECHNICAL DATA ........................... 9 HOW TO USE THIS MANUAL ......................10 ............................10 ELIVERY DESCRIPTION .......................... -
Page 6: Safety
SUPERMAX Safety This symbol appears in the instruction manual each time there is a safety warning concerning your safety, the safety of others or functionality of the machine. All safety instructions must be observed and made available to all users of the ma- chine. -
Page 7: Hydraulics
SUPERMAX Hydraulics • Lower machine fully for any repair work on the hydraulic system. Relieve hy- draulic pressure, switch engine off and remove ignition key. • Clean hydraulic connections thoroughly before reconnecting. When connecting hydraulic hoses to tractor hydraulics, ensure they are not under pressure. •... -
Page 8: Correct Use
SUPERMAX • Check with local traffic authorities whether transport on public roads is allowed given the machine's dimensions. • When transporting, ensure permitted total weight for tractor is not exceeded and that loading on tractor front axle is not less than 20% of tractor net weight. If this is the case, use weights on tractor front Correct use •... -
Page 9: Technical Data
SUPERMAX Technical data SUPERMAX 250/300 incl. 800 mm bogie packer Width (cm) HP (recommended) Weight in kg: Incl. 800 mm bogie T-ring 3200 2625 Sections (pcs.) Hydraulic requirements: Double-acting Single-acting Transport: Width (metres) 3,00 2,70 Height (metres) 2,00 2,00 Length (metres) -
Page 10: How To Use This Manual
SUPERMAX How to use this manual The sequence of subject matter in this manual can seem illogical. Please refer to the table of contents for page numbers for individual items. The manual is divided into 5 main sections: • Safety •... -
Page 11: Description
SUPERMAX Description SUPERMAX is a heavy-duty combination cultivator, ideal for loosening and cultivat- ing unploughed soil. The machine consists of a tine section, a plate section and a packer section. The tines loosen the earth to a max. depth of 400 mm, whilst the plates break soil down and smooth the surface to a max. -
Page 12: Limitations To Use
SUPERMAX Limitations to use Descriptions of what the machine can and cannot be used for: • Can only be used for breaking down organic plant material on agricultural land under cultivation. Areas worked must be in normal agricultural maintenance, i.e. with no significant unevenness or holes. -
Page 13: Connecting And Disconnecting
Hose markings Cylinder name Colour Outlet Function Depth cylinder black Double acting Set working depth on machine. The hydraulic system is not fitted with pilot-controlled relief valves. If the tractor hydraulic system leaks, please contact DALBO A/S. Page 13... -
Page 14: Disconnection
SUPERMAX Disconnection Check hydraulic hoses for crimping Always disconnect the machine on a flat surface to ensure maximum stability. Set support leg vertically, disconnect hydraulic hoses and three point lift arms. Remember to depressurise hoses before disconnecting them. Page 14... -
Page 15: Setting Up
SUPERMAX Setting up SUPERMAX is very simple to work with. The machine's design makes it very easy to set up. Always check frame angle before use to ensure optimum use of the machine. Adjusting main frame To achieve uniform soil cultivation, the main frame must be horizontal longitudinal- ly and latitudinally. -
Page 16: Operation
SUPERMAX Operation When working with SUPERMAX, the tines will hit stones which can cause the spring bolt to break. Replacing spring bolt Fig. 5 If the spring bolt (A) breaks, extract the split pin (B), lift the tine (C) up to the required height and replace the bolt in the tine. -
Page 17: Troubleshooting
SUPERMAX Troubleshooting Fault Cause Remedy • Frame is not hori- • Adjust frame zontal Uneven working • Tines • Adjust tines uniformly uni- depth formly adjusted Page 17... -
Page 18: Maintenance
SUPERMAX Maintenance Good maintenance ensures long service life and optimum use. Grease nipples are fitted where wear is heaviest. Tighten all screw connections after first working day. Check all split pins and bolts to avoid mechanical failure. Check hydraulic system for leaks. Lubrication Fig. -
Page 19: Replacement And Repairs
SUPERMAX Replacement and repairs Safety is vital for all repair work on the machine. Always observe the following points, plus those under Safety First in the instruction manual. All maintenance and repair work on the machine can only be performed when the machine is lowered to the ground or locked in transport position, tractor is braked, engine stopped and ignition key removed to prevent accidental start. -
Page 20: Replacing Gaskets On Raise/Lower Cylinder
SUPERMAX Ensure no personnel are within the extension radius of the side sections. Replacing gaskets on raise/lower cylinder Fig. 8 1. Drain oil from cylinder by moving ram carefully backwards and forwards. 2. Extend ram to centre position. Unscrew upper part (pos. 3) from cylinder tube (pos. -
Page 21: Replacing Tips
SUPERMAX Replacing tips Replace on a level surface with the machine connected to a tractor and suspended from the lift. Support the machine properly, and do not walk beneath it. Replacing tips Do not walk under the machine unless it is properly supported. Fig. -
Page 22: Scrapping
SUPERMAX Scrapping Stand the machine on a firm surface. It is essential that all cylinders are removed. Beware of the weight of any given part when removing or disassembling. All parts must be supported or lifted to avoid danger of falling. Disconnect hydraulic hoses and cylinders and drain oil. -
Page 23: Spare Parts
SUPERMAX Spare parts Page 23... -
Page 24: Guarantee
SUPERMAX Guarantee DALBO A/S provides a 1 year guarantee on all new machines sold by an authorised DALBO dealer. The guarantee is valid for 1 year from date of delivery to the end-user. The guarantee covers material and manufacturing defects.
