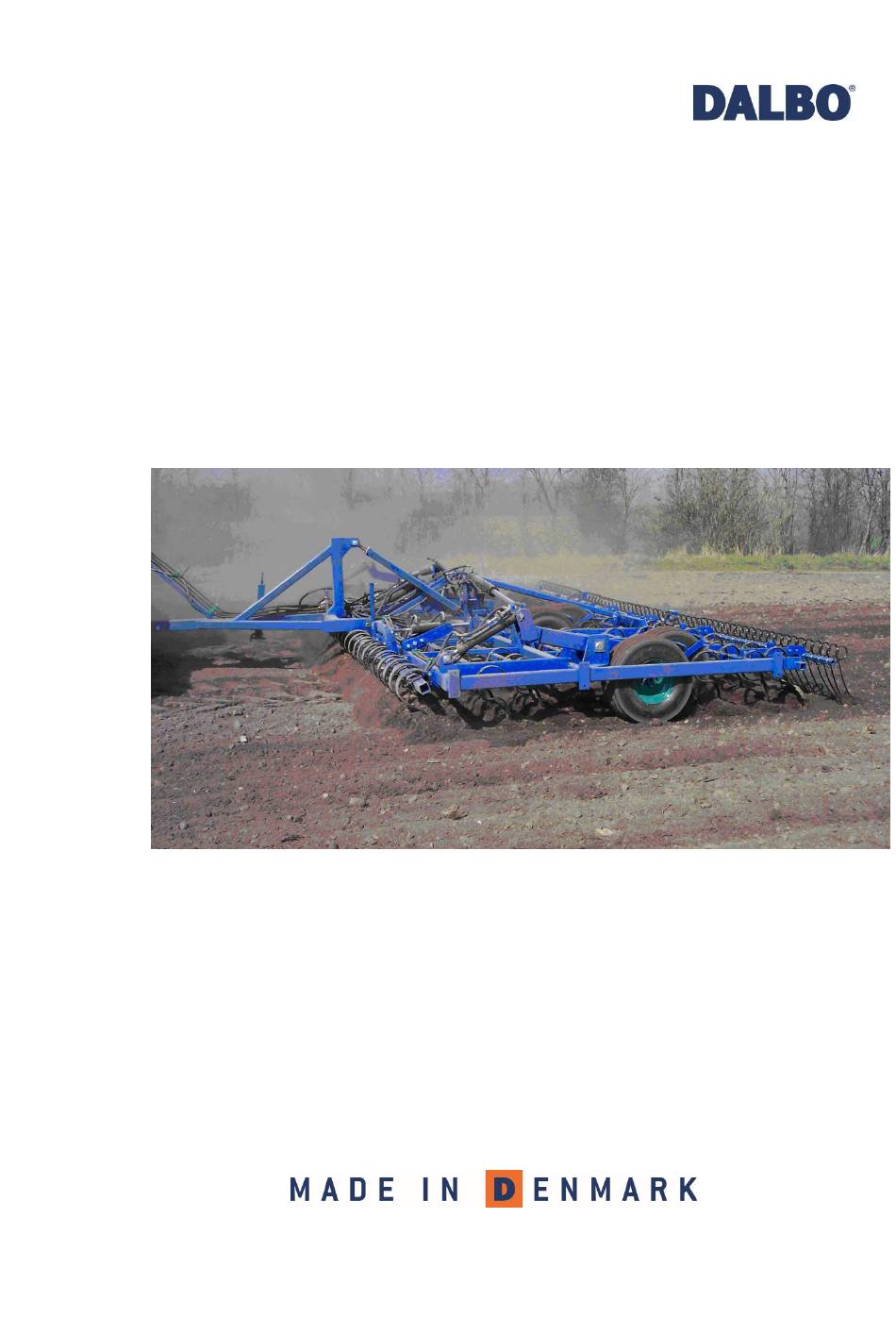

- Page 1 CULTIMAX 650/800/900/1000 cm Serie no.: 0100 – XXXX...
- Page 3 Congratulations on the purchase of your new CULTIMAX. To ensure safe operation and to ob- tain optimal use of the machine, read the rules and instructions of the following operator`s manual carefully before operating the machine. © Copyright 2006. All rights reserved, DALBO A/S. Your CULTIMAX: Type no.: Serial no.:...
-
Page 5: Table Of Contents
Table of Contents SAFETY ............................6 ..............................6 ENERAL ............................6 YDRAULIC YSTEM ..............................7 ITCHING ........................7 AINTENANCE AND EPAIRS ...............................7 RANSPORT ............................8 ORRECT TECHNICAL DATA ........................... 9 ..............................9 ELIVERY HOW TO USE THIS MANUAL ......................10 APPLICATION ..........................11 HITCHING AND UNHITCHING ....................... 12 ............................... -
Page 6: Safety
CULTIMAX Safety The safety alert symbol is used throughout this manual to identify important safety warning messages concerning your safety, the safety of other users or the func- tional safety of the implement. Observe all safety instructions and make them readily accessible to all users of the equipment. -
Page 7: Hitching
CULTIMAX • Clean the hydraulic fittings thoroughly before connection. Ensure that the pres- sure is relieved in the hydraulic system before connecting the hydraulic hoses to the tractor`s hydraulic services. • After making repairs to the hydraulic system, thoroughly bleed air out of the system. -
Page 8: Correct Use
CULTIMAX • It is the reponsibility of the driver to consult with local traffic authorities in order to ensure that the size, weight and load of the machinery may be transported on public roads. • When towing the implement, the total weight of the tractor and the maximum al- lowed axle load must not be exceeded. -
Page 9: Technical Data
CULTIMAX Technical Data CULTIMAX Model/Working width (cm) HP (recommended) 140-200 170-250 220-300 Gross weight kg: 3600 3940 4300 Wheels 300/65-12 300/65-12 300/65-12 Tines (pcs.) Delivery For export the machine may be partly dismantled. If the CULTIMAX needs to be lifted, lift with straps around the middle section, raising the machine so that it hangs in balance. -
Page 10: How To Use This Manual
CULTIMAX How to Use This Manual If the order of points described under the main subject areas of the manual seems confusing or illogical, refer to the Table of Contents where all subject headings can be found. The main points of the operator`s manual are placed into four main categories: •... -
Page 11: Application

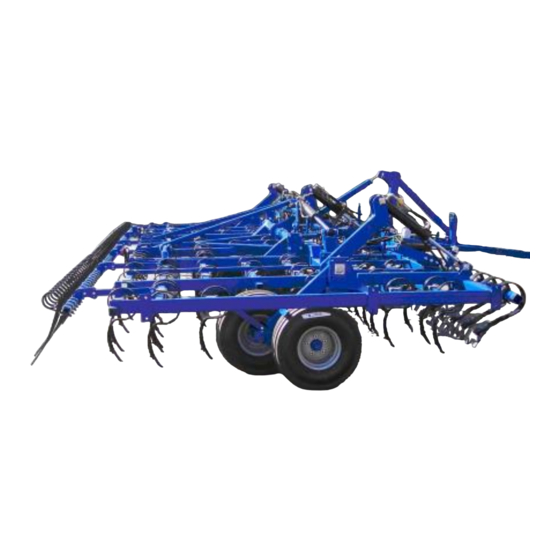

CULTIMAX Application CULTIMAX is a towed seed-bed harrow with 7 rows of tines and with three working parts that are engaged by use of the tractor drawbar. With 8 bogie suspended wheels CULTIMAX is designed for stable operation in the field which results in a very consistent working depth in the soil. -
Page 12: Hitching And Unhitching
CULTIMAX Hitching and Unhitching Hitching Fig. 2 1. Hitch CULTIMAX on the fixed draw- bar of the tractor (A). Remenber to secure with lynch pins. 2. The support leg is raised. 3. Attach the hydraulic hoses and open the ball valve to ensure flow to the wheel chassis. -
Page 13: Unhitching
CULTIMAX Unhitching Fig. 3 CULTIMAX can be unhitched folded or unfolded. Close the ball valve for the wheel chassis. Remember to relieve the pressure in the hydraulic system before discon- necting the hoses. Before unhitching check that the side-sections are engaged with the safety hooks. Position the CULTIMAX on solid, even ground. -
Page 14: Adjustments And Settings
CULTIMAX Adjustments and Settings The CULTIMAX is preset in the factory, but it will always be necessary to make some fine adjustments before use. Numerous adjustment possibilities make your CULTI- MAX more versatile and allow you to obtain optimum performance from the imple- ment. -
Page 15: Adjustment Of Rear Harrow
CULTIMAX Fig. 6 When not in use place the distance pieces on the retainer (A). Adjustment of Rear Harrow Fig. 8 Depending on the working depth and soil conditions the rear harrow should be adjusted. The rear harrow can be adjusted verti- cally in the holes (A). -
Page 16: Adjustment Of Crackerboard
CULTIMAX Adjustment of Crackerboard Fig. 9 The working part up front, the cracker- board, is completely hydraulically ad- justable from the tractor. The depth is indicated on the indicating device (A). The crackerboard is not intended to function as a dozerblade since it does not serve any purpose to inadvertently trail a large earth bank. -
Page 17: Operating And Driving Instructions
CULTIMAX Operating and Driving Instructions Proper operation is essential for optimum performance of your CULTIMAX. Proper operation concerns both the carrying out of tillage operations in the field, as well, as the following of safety precautions. Best results will be achieved, when the last pull is driven slightly diagonally to the following sowing direction. -
Page 18: Travel Speed
CULTIMAX When driving on public roads the ball valve to the wheel chassis is closed. In this way the ball valve functions as a lock and as a safeguard against unintentional op- eration. Travel Speed To obtain optimum tillage a working speed of 6-7 mph (8-12 kph) is recommended. However, one should always drive according to conditions. -
Page 19: Maintenance
CULTIMAX Maintenance Proper maintenance ensures a long life and optimum performance of your CULTI- MAX. To facilitate maintenance, grease nipples have been mounted on those loca- tions where wear on the equipment is the greatest. Tighten all nuts, bolts, hydraulic fittings or any other fastened assemblies after the first workday. -
Page 20: Dismounting/Mounting Of Wheels
CULTIMAX Lubricate all lubrication points at least once a year. Dismounting/Mounting of Wheels To dismount the wheels unfold and lower the CULTIMAX until the tines are resting on the surface but still supported by the wheels. You are now able to loosen the wheel nuts without the wheel rotating. -
Page 21: Replacements And Repairs
CULTIMAX Replacements and Repairs Safety is important in connection with all repair work on the CULTIMAX. The follow- ing safety precautions and the precautions listed in the beginning of this manual must be observed. Before performing any adjustments, maintenance or repairs on the machinery, always unfold the CULTIMAX, and lower the implement to the ground or secure in transport position, engage the tractor brakes, turn off the engine and remove the ignition key, to avoid unintentional operation. - Page 22 CULTIMAX After mounting the cylinder, activate the wing fold cylinders until the piston rods begin to move in the cylinders. Next, activate the cylinders in the opposite direc- tion until the cylinder is back in the starting position. Move the cylinders several times in this way.
-
Page 23: Replacing Wheel Bearings
CULTIMAX Fig. 15 9. Relieve the pressure in the cylin- ders. Disconnect the hoses. 10. Remove the split pins and the oth- er pins. The cylinders are now free. 11. Install new and repaired cylinders. Remember to make sure, that the pin is engaged in the stop and that the pins are secured with split pins. -
Page 24: Replacing Wearing Parts
CULTIMAX 6. Attach the split pin pos. 20. 7. Fill up the hub cap pos. 21 with ¾ ball bearing grease and mount the hub cap. Replacing Wearing Parts Unfold the CULTIMAX and position securely to avoid the danger of being trapped underneath, and to avoid the machine falling. -
Page 25: Scrapping
CULTIMAX Scrapping Relieve the pressure in the hydraulic system. When dismounting/mounting components, always pay attention to the weight of the part, that you are about to handle. It is important to support or secure the part, so that it cannot fall. Dismount all hydraulic hoses and cylinders and empty the oil. -
Page 26: Spare Parts
CULTIMAX Spare Parts Side 26...
