Operating instructions
Solenoid interlock
Operating instructions pages 1 to 10
EN
Translation of the original operating instructions
Content
1
About this document
11 Function 1
12 Target group: authorised qualified personnel 1
13 Explanation of the symbols used 1
14 Appropriate use 1
15 General safety instructions 1
16 Warning about misuse 1
2
26 Safety classification 3
3
Mounting
31 General mounting instructions 3
32 Dimensions 3
4
5
6
61 Diagnostic LED's 5
7
72 Maintenance 7
8
Disassembly and disposal
81 Disassembly 7
82 Disposal 7
9
Appendix
91 Wiring examples 8
92 Wiring configuration and connector accessories 9
93 EC Declaration of conformity 10
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only
Please make sure that you have read and understood these operat-
ing instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components
1.3 Explanation of the symbols used
Information, hint, note:
This symbol is used for identifying useful additional information
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine
1.4 Appropriate use
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machinery or plant
The safety switchgear must be exclusively used in accordance with the
versions listed below or for the applications authorised by the manufac-
turer Detailed information regarding the range of applications can be
found in the chapter "Product description"
1.5 General safety instructions
The user must observe the safety instructions in this operating instruc-
tions manual, labelled with the caution or warning symbol above, the
country-specific installation standards as well as all prevailing safety
regulations and accident prevention rules
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
wwwschmersalnet
The information contained in this operating instructions manual is
provided without liability and is subject to technical modifications
There are no residual risks, provided that the safety instructions as well
as the instructions regarding mounting, commissioning, operation and
maintenance are observed
1.6 Warning about misuse
In case of inadequate or improper use or manipulations of the
safety switchgear, personal hazards or damages to machi-
nery or plant components cannot be excluded The relevant
requirements of the standard EN 1088 must be observed
EN

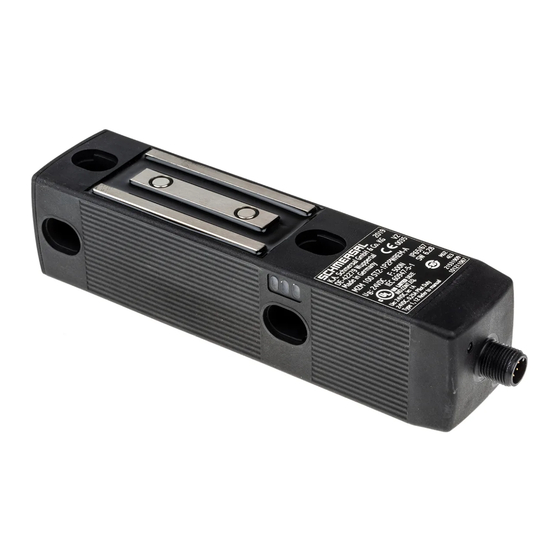

MZM 100
1
1
Advertisement
Table of Contents
Related Manuals for schmersal MZM 100
Summary of Contents for schmersal MZM 100
-
Page 1: Table Of Contents
Operating principles and latching force adjustment Further technical information can be found in the Schmersal 51 Mode of operation of the safety outputs 4... -
Page 2: 17 Exclusion Of Liability 2
2.3 Comprehensive quality insurance to 2006/42/EC Notice - Mechanical life: for safety guards ≤ 5 kg; Schmersal is a certified company to appendix X of the Machinery Direc- actuating speed ≤ 0.5 m/s tive As a result, Schmersal is entitled to autonomously conduct the... - Page 3 Operating instructions Solenoid interlock MZM 100 Electrical data - Safety inputs X1 / X2: The safety component and the actuator must be permanently Safety inputs X1 / X2: PELV unit to IEC 60204-1 fitted to the safety guards and protected against displacement Voltage range: −3 V …...
-
Page 4: 41 General Information For Electrical Connection 4
4. Electrical connection 5.2 Description of the latching force adjustment The latching force of the MZM 100 can be set in 8 steps of approx 4.1 General information for electrical connection 10 N each within a range of approx 30 N to approx 100 N To this end,... -
Page 5: Diagnostic Functions
Depending on the variant used, specific diagnostic signals are emitted (refer to table page 1) Error Errors, which no longer guarantee the function of the MZM 100 solenoid interlock (internal error)s cause the safety outputs to be disabled within Legend... -
Page 6: 63 Solenoid Interlock With Serial Diagnostic Function 6
Operating instructions Solenoid interlock MZM 100 Table 1: the diagnostic function of the MZM 100 solenoid interlock The diagnostic output "OUT" signals faults before the safety outputs are disabled, thus enabling a controlled shutdown System condition Solenoid control Safety outputs... -
Page 7: Set-Up And Maintenance
Operating instructions Solenoid interlock MZM 100 Table 3: I/O data and diagnostic data Communication directions: request byte: from the PLC to the local electronic safety switchgear response byte: from the local electronic safety switchgear to the PLC warning/error byte: from the local electronic safety switchgear to the PLC Bit n°... - Page 8 Wiring example 1: Series-wiring of the MZM 100 with conventional diagnostic output The voltage is supplied at both safety inputs of the terminal safety component of the chain (considered from the safety-monitoring module)...
- Page 9 Operating instructions Solenoid interlock MZM 100 9.2 Wiring configuration and connector accessories Function safety switchgear Pin configuration Colour code or Possible colour code of other of the connector conductor numbering commercially available connectors of the below-mentioned with conventional with serial...
- Page 10 Solenoid interlock MZM 100 Appendix 9.3 EC Declaration of conformity EC Declaration of conformity Translation of the original KA Schmersal GmbH & Co KG declaration of conformity Industrielle Sicherheitsschaltsysteme Möddinghofe 30, 42279 Wuppertal Germany Internet: wwwschmersalcom We hereby certify that the hereafter described safety components both in its basic design and...
