Operating instructions
Solenoid interlock
Operating instructions pages 1 to 12
EN
Original
Content
1
About this document
11 Function 1
12 Target group: authorised qualified personnel 1
13 Explanation of the symbols used 1
14 Appropriate use 1
15 General safety instructions 1
2
24 Purpose 2
3
32 Dimensions 4
4
5
6
61 Diagnostic LED's 6
7
71 Functional testing 9
72 Maintenance 9
8
Disassembly and disposal
81 Disassembly 9
82 Disposal 9
9
10 EU Declaration of conformity
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components
1.3 Explanation of the symbols used
Information, hint, note:
This symbol is used for identifying useful additional information
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine
1.4 Appropriate use
The products described in these operating instructions are developed
to execute safety-related functions as part of an entire plant or machine
It is the responsibility of the manufacturer of a machine or plant to
ensure the correct functionality of the entire machine or plant
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer Detailed information regarding the range of applications
can be found in the chapter "Product description"
1.5 General safety instructions
The user must observe the safety instructions in this operating
instructions manual, labelled with the caution or warning symbol above,
the country-specific installation standards as well as all prevailing safety
regulations and accident prevention rules
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
wwwschmersalnet
The information contained in this operating instructions manual is
provided without liability and is subject to technical modifications
EN

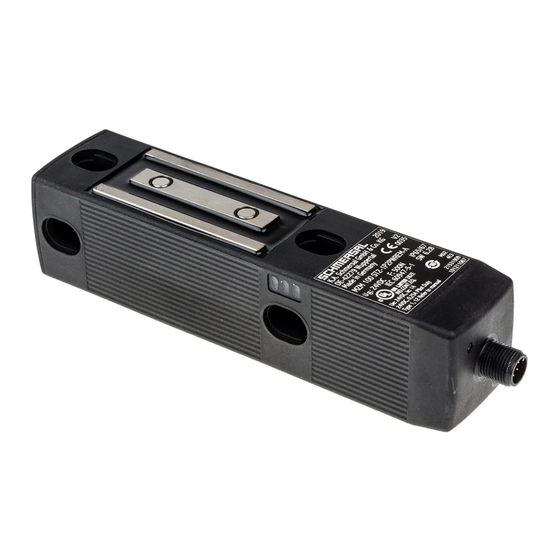

MZM 100
MZM 100 B
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for schmersal MZM 100
Summary of Contents for schmersal MZM 100
-
Page 1: Table Of Contents
Diagnostic functions Further technical information can be found in the Schmersal 61 Diagnostic LED's 6... -
Page 2: 16 Warning About Misuse 2
4 interlocking devices 1.6 Warning about misuse The MZM 100 is designed for application in safety circuits and is used In case of improper use or manipulation of the safety for monitoring the position of movable separating safety guards A door... -
Page 3: 25 Technical Data 3
Operating instructions MZM 100 Solenoid interlock MZM 100 B 2.5 Technical data Utilisation category: DC-13: U : 24 VDC / 025 A General data: Rated operating current I each max 025 A Standards: IEC 60947-5-1, IEC 60947-5-3, ISO 14119, Leakage current I ≤... -
Page 4: Electrical Connection
Information for the selection of suitable safety-monitoring modules can be found in the Schmersal catalogues or in the online catalogue on the Internet: wwwschmersalnet If the solenoid interlock is wired to relays or to non-safety relevant 6. -
Page 5: Operating Principles And Latching Force Adjustment
MZM 100 • the actuator has been detected and 3) Switch the voltage supply of the MZM 100 back on and wait at least • the interlock is locked, the magnetic force is > 500 N 10 seconds before removing the adjustment target The component... -
Page 6: Diagnostic Functions
Behaviour of the diagnostic outputs of the W and W2 variants 6.1 Diagnostic LED's Input signal magnet control The MZM 100 signals the operational state as well as errors through three coloured LED’s installed on the front side of the device green... - Page 7 Solenoid interlock MZM 100 B Table 1: Diagnostic function The diagnostic output "OUT" signals faults before the safety outputs are disabled, thus enabling a controlled shutdown Diagnostic function of MZM 100 variant "Solenoid interlock monitored" System condition Solenoid control Safety outputs...
-
Page 8: 63 Solenoid Interlock With Serial Diagnostic Function 8
An error warning is deleted when the cause of error is eliminated of a PLC The necessary software for the integration of the SD-Gateway is available for download at wwwschmersalnet Diagnostic error (warning) If an error (warning) is signalled in the response byte, detailed fault... -
Page 9: Set-Up And Maintenance
Solenoid interlock MZM 100 B Table 4: Function of the visual diagnostic LED`s, the serial status signals and the safety outputs by means of an example - of MZM 100 variant "Solenoid interlock monitored" System condition Safety outputs Response byte bit n°:... -
Page 10: Appendix
Wiring example 1: Series-wiring of the MZM 100 with conventional diagnostic output The voltage is supplied at both safety inputs of the terminal safety component of the chain (considered from the safety-monitoring module)... -
Page 11: 92 Wiring Configuration And Connector Accessories
Operating instructions MZM 100 Solenoid interlock MZM 100 B 9.2 Wiring configuration and connector accessories Function safety switchgear Pin configuration of the Conductor numbering or Poss. colour codes of other connector colour code of the customary connectors Schmersal connectors with conventional... - Page 12 MZM 100, MZM 100 B Type: See ordering code Description of the component: Interlocking device with electromagnetic interlock for safety functions (MZM 100) and safety switch with interlocking functions (MZM 100 B) Relevant Directives: Machinery Directive 2006/42/EC EMC-Directive 2014/30/EU RoHS-Directive...
