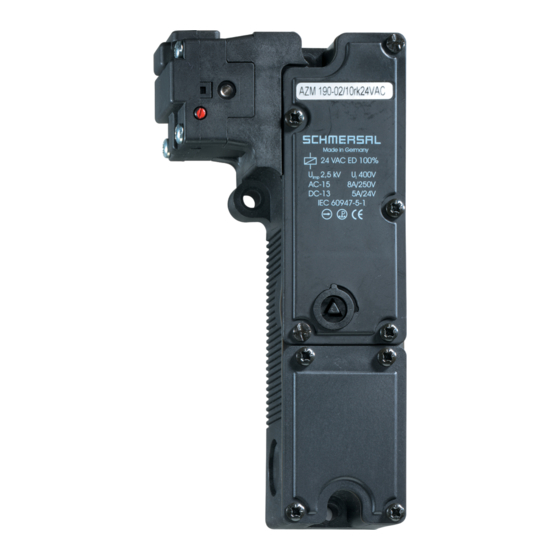

schmersal AZM190 RK Series Operating Instructions Manual

schmersal AZM190 RK Series Operating Instructions Manual

Solenoid interlocks

Advertisement

Quick Links

Operating instructions
Solenoid interlocks
Operating instructions            pages 1 to 8
EN
Original
Content
1

About this document

11 Function                                              1
12 Target group: authorised qualified personnel                 1
13 Explanation of the symbols used                           1
14 Appropriate use                                        1
15 General safety instructions                               1
16 Warning about misuse                                   1
17 Exclusion of liability                                     2
2
21 Ordering code                                         2
22 Special versions                                       2
23 Purpose                                              2
24 Technical data                                         3
3
31 General mounting instructions                             4
32 Dimensions                                           4
4
41 General information for electrical connection                 4
42 Contact variants                                        5
5
51 Functional testing                                      6
52 Maintenance                                          6
6
61 Disassembly                                          6
62 Disposal                                              6
7
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components
1.3 Explanation of the symbols used
Information, hint, note:
This symbol is used for identifying useful additional informa-
tion
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions
Warning: Failure to comply with this warning notice could lead
to physical injury and/or damage to the machine
1.4 Appropriate use
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machine or plant
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer Detailed information regarding the range of applications
can be found in the chapter "Product description"
1.5 General safety instructions
The user must observe the safety instructions in this operating
instructions manual, the country specific installation standards as well
as all prevailing safety regulations and accident prevention rules
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
wwwschmersalnet
The information contained in this operating instructions manual is
provided without liability and is subject to technical modifications
There are no residual risks, provided that the safety instructions as well
as the instructions regarding mounting, commissioning, operation and
maintenance are observed
1.6 Warning about misuse
In case of improper use or manipulation of the safety switch-
gear, personal hazards or damages to machinery or plant
components cannot be excluded The relevant requirements
of the standard ISO 14119 must be observed
EN
AZM190
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZM190 RK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for schmersal AZM190 RK Series

  • Page 1 25 Safety classification of the interlocking function               3 Further technical information can be found in the Schmersal 26 Safety classification of the guard locking function              3...
  • Page 2 Operating instructions Solenoid interlock AZM190 The safety switchgears are classified according to 1.7 Exclusion of liability ISO 14119 as type 2 interlocking devices We shall accept no liability for damages and malfunctions resulting from defective mounting or failure to comply with this operating instructions Manual release (for set-up, maintenance, etc.) manual The manufacturer shall accept no liability for damages resulting from the use of unauthorised spare parts or accessories...
  • Page 3 Operating instructions Solenoid interlock AZM190 2.4 Technical data 2.5 Safety classification of the interlocking function Standards: IEC 60947-5-1, ISO 14119 Standards: ISO 13849-1 Enclosure: glass-fibre reinforced thermoplastic Envisaged structure: Actuator and locking bolt: galvanised steel / zinc die-cast - Basically: applicable up to cat 1 / PL c Holding force F 2,550 N...
  • Page 4 Alternative mounting plates that can be used in combination with actuator AZM190-B3V especially for attaching 4.1 General information for electrical connection aluminium profiles, see www.schmersal.net. MP190-V For internal mounting with right-hinged door The electrical connection may only be carried out by...
  • Page 5 Operating instructions Solenoid interlock AZM190 4.2 Contact variants Contacts shown in a de-energised condition and with the actuator A Positive break inserted The contact configurations of the versions with or without LED Monitoring the interlock according to ISO 14119 are identical LED display: YE (1) Safety guard closed GN (2) Safety guard closed and locked...
  • Page 6 Operating instructions Solenoid interlock AZM190 5. Set-up and maintenance 5.1 Functional testing The safety function of the safety components must be tested The following conditions must be previously checked and met: 1 Fitting of the solenoid interlock and the actuator 2 Check the integrity of the cable entry and connections 3 Check the switch enclosure for damage 5.2 Maintenance...
  • Page 7 Oliver Wacker of the technical documentation: Möddinghofe 30 42279 Wuppertal Place and date of issue: Pune, 11 July 2019 Authorised signature Sagar Jeevan Bhosale Managing Director The currently valid declaration of conformity can be downloaded from the internet at wwwschmersalnet...
  • Page 8 Production site: Schmersal India Private Limited K.A. Schmersal GmbH & Co. KG G-7/1, MIDC, Ranjangaon Möddinghofe 30, 42279 Wuppertal Tal. Shirur, Dist. Pune – 412 220 Germany Maharashtra Phone: +49 202 6474-0 India Telefax: +49 202 6474-100 Phone: +91 21 38 61 47 00 E-Mail: info@schmersal.com...
