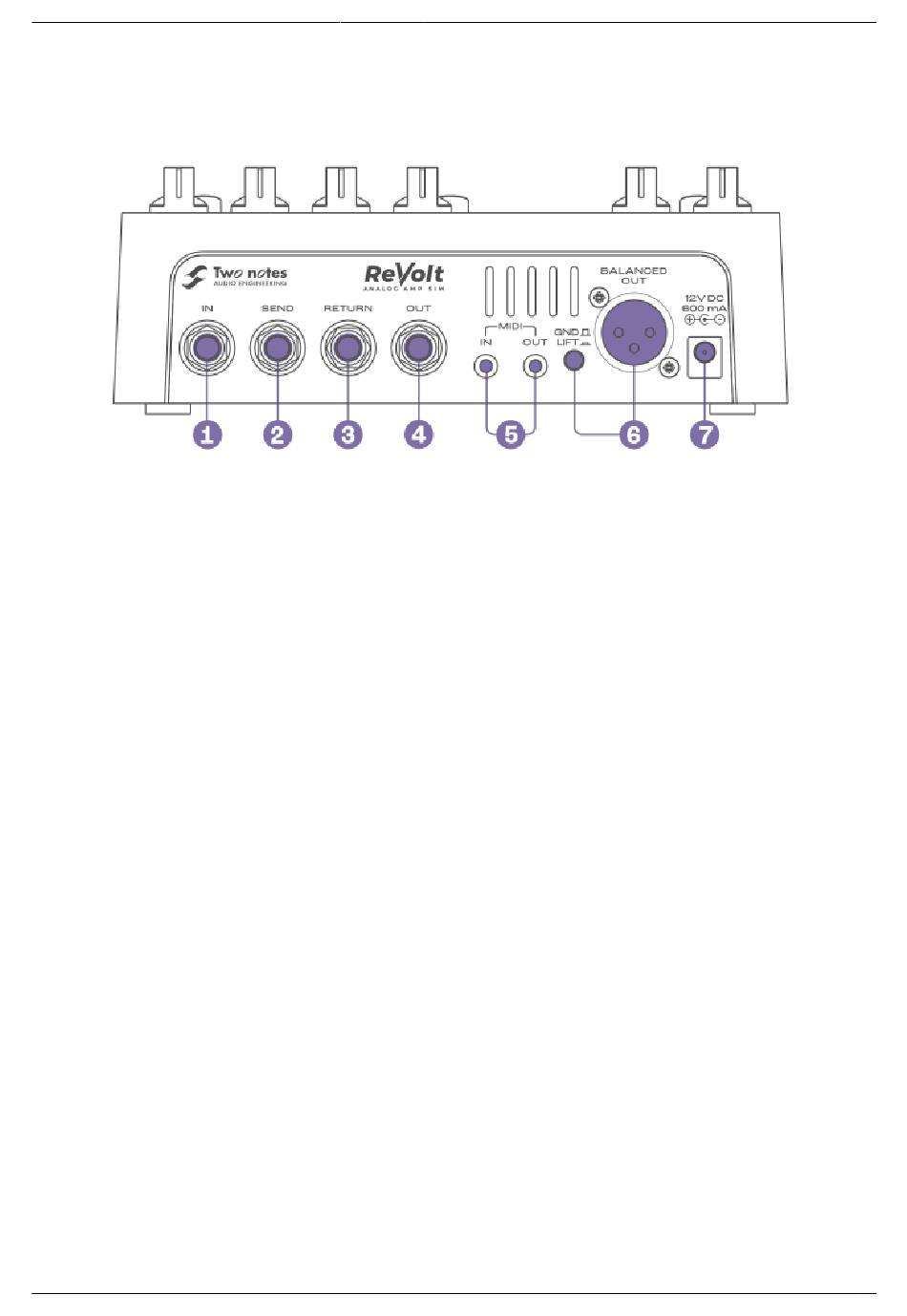

4. Back Panel

1 - IN
Connect your instrument here. The input is a ¼" TS (unbalanced) jack socket.
2 - SEND
Use this unbalanced output to connect to effects pedals or to an amp's Instrument input when the 4-
CABLE METHOD switch (E) is activated. The SEND output is a ¼" TS jack socket.
When the 4-CABLE METHOD switch is activated, and when ReVolt is bypassed (no active channel), the
SEND outputs the dry/unaffected guitar signal to the connected amplifier/device.
3 - RETURN
Use this unbalanced input to connect the output of any external effects to ReVolt, or connect the
amp's effects loop SEND to this input when the 4-CABLE METHOD switch (E) is activated. The RETURN
input is a ¼" TS jack socket panel-mount connector.
When using effects pedals (delay, reverb, etc.), ensure the 4-CABLE METHOD is set to O. The
processed signal of the effects will be heard when a channel is active on ReVolt.
4 - OUT
This unbalanced output (¼" TS jack) sends the dry signal of ReVolt's channels - the CAB SIM is never
applied to this output.
