5 - MIDI IN/OUT
The MIDI In/Out sockets are ⅛" TRS jack panel-mount connectors. One TRS 1/4" jack to MIDI type A
adapter cable is provided with ReVolt.
By default, ReVolt sends and receives Program Change (PC) messages from 1 to 7 . Edit all MIDI
messages through ReVolt's dedicated MIDI Setup menus (see the MIDI SETUP section of the manual
for more details)
6 - BALANCED OUT
Use this balanced output to connect directly to your audio interface, monitors or mixing desk. Apply
speaker simulation to this output with the CAB SIM Switch (F). The GND/LIFT switch eliminates
unwanted hum caused by ground loops when activated.
7 - MAINS POWER ADAPTOR
Connect the provided power supply here. ReVolt needs 12V DC, 600mA and a center negative polarity
to work.

USE CASES

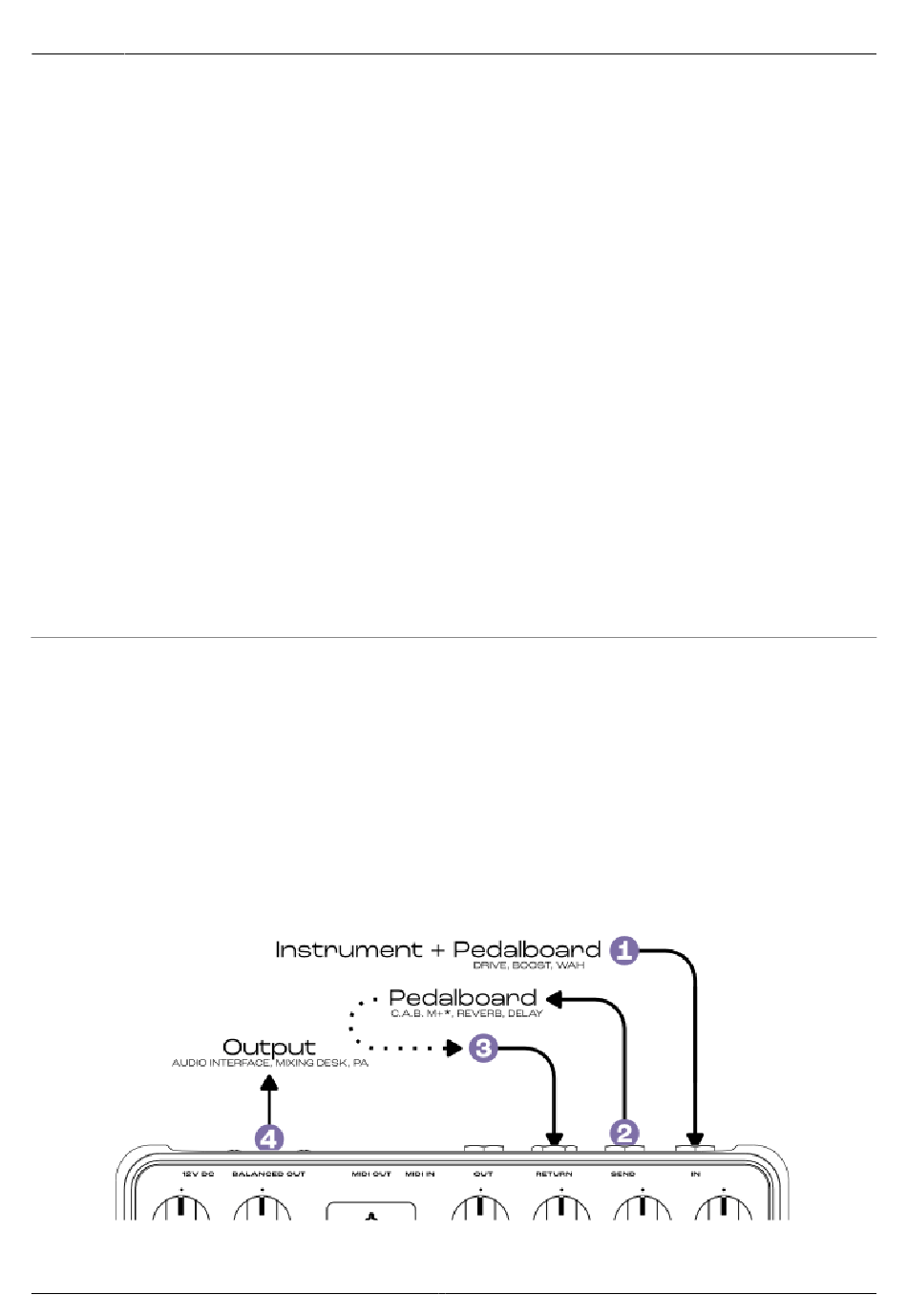

1. Go Direct - On Stage & In The Studio
Use ReVolt to go-direct to mixing desks audio interfaces when on stage or recording respectively.
