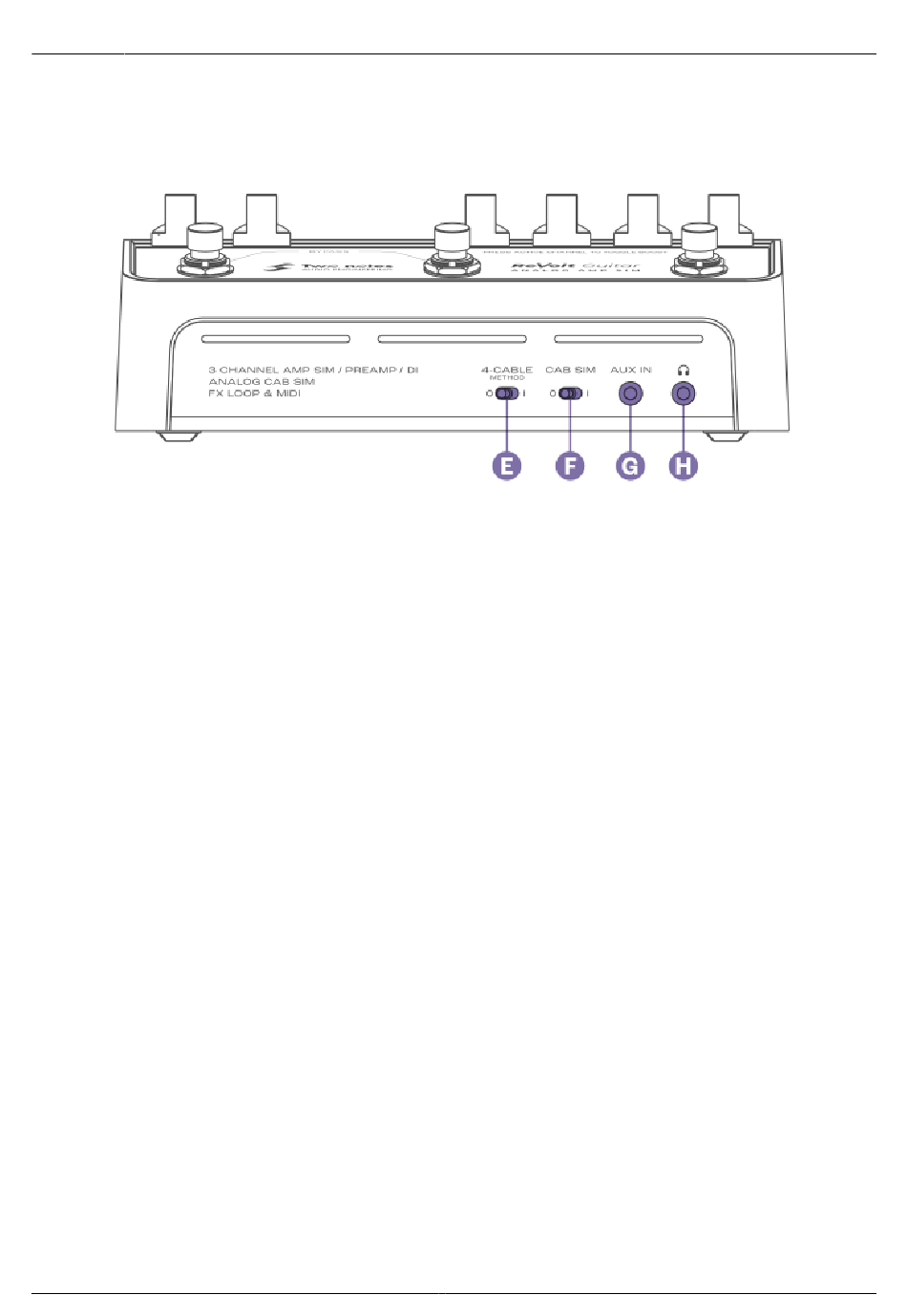

3. Front Panel

E - 4-CABLE METHOD
This switch determines the behavior of ReVolt's effects loop alongside its bypass behavior. See the
section Supercharge your amp with the 4 cable method
feature.
F - CAB SIM
Enables the analog cabinet simulation applied to the BALANCED and Headphone outputs of ReVolt by
engaging the CAB SIM switch (I Position) For ReVolt Guitar, the analog simulation is inspired by a
Marshall® 4×12 Slash Signature cabinet.
G - AUX IN
Connect your music player here and control the playback level via the source's controls. This input is
stereo.
H - Headphone Output
The headphone output is a 1/8" TRS jack socket. This output is calibrated for headphones rated up to
100Ω. ReVolt's signal is mono - the AUX IN can only be heard in stereo via headphones. The cabinet
simulation applied with the CAB SIM switch can also be heard through the headphone output.
