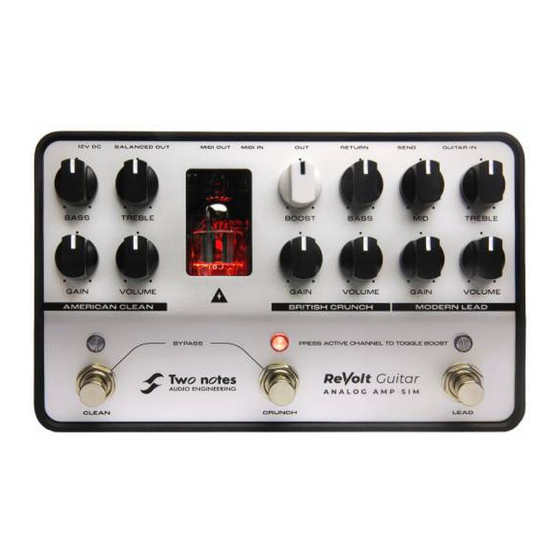

Two notes Audio Engineering ReVolt Guitar User Manual

3-channel all-analog guitar amp simulator

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

2022/12/12 19:40

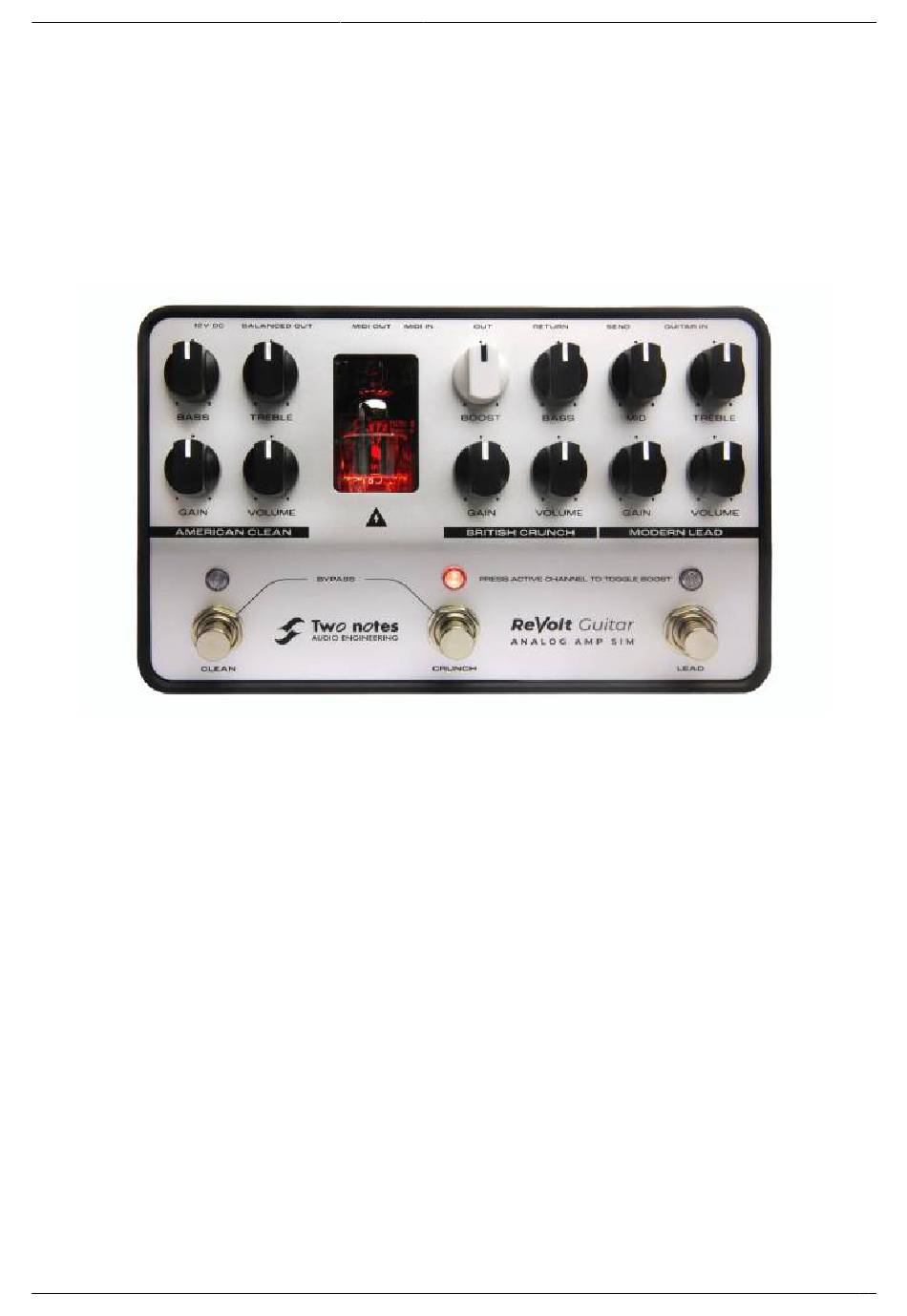

ReVolt Guitar - User Guide

3-Channel All-Analog Guitar Amp Simulator

Thank you for purchasing ReVolt Guitar, you're about to embark on a world of next-generation tonal

possibilities!

From sublime cleans to the gnarliest of Metal tones, your performance demands the pinnacle in tonal

excellence.Enter ReVolt Guitar, a forward-thinking all-analog 3-channel preamp primed to serve as

the beating-heart of your rig. The latest-iteration of Two notes' critically- acclaimed preamp solutions

has been engineered with a singular mission: to empower players with the ultimate in foundation

tone. Forget any preconceptions of a run-of-the-mill amp-in-a-box: ReVolt Guitar stands-apart. It's

inspired by a trio of iconic amps; It's fuelled by 200V and genuine tube power; It's born to assimilate

into a myriad of usage scenarios; It cuts above the rest with its integrated OD-Boost circuit.Two notes'

gets it: Your Tone Matters. Why settle for anything short of perfection?

The complete electronic version of this manual, as well as the Two notes Audio Engineering software

and hardware products, are subject to updates. You can download the most recent versions of the

products on the Two notes Audio Engineering website.

This manual describes ReVolt Guitar and provides instructions for its operation. It is highly

recommended that you read this document before using the product. The contents of this manual

have been thoroughly veriﬁed and it is believed to accurately describe the product at the time of

User's manuals - https://wiki.two-notes.com/

1/17

ReVolt Guitar - User Guide

Table of Contents

Need help?

Do you have a question about the ReVolt Guitar and is the answer not in the manual?

Questions and answers

Summary of Contents for Two notes Audio Engineering ReVolt Guitar

Page 1 ReVolt Guitar - User Guide 3-Channel All-Analog Guitar Amp Simulator Thank you for purchasing ReVolt Guitar, you’re about to embark on a world of next-generation tonal possibilities! From sublime cleans to the gnarliest of Metal tones, your performance demands the pinnacle in tonal excellence.Enter ReVolt Guitar, a forward-thinking all-analog 3-channel preamp primed to serve as...
Page 2: Important Safety Instructions
OROSYS SAS. All product names and trademarks are the property of their respective owners. Product names and trademarks found in this document were used during the development of ReVolt Guitar but are in no way associated or aﬃliated with OROSYS SAS.
Page 3: Package Contents
2022/12/12 19:40 3/17 ReVolt Guitar - User Guide clean and free from dust All maintenance operations must be carried out by service centers approved by Two notes Audio Engineering or by qualiﬁed technicians. Never attempt to repair the product by yourself.
Page 4: Disposal Of Waste Equipment By Users In Private Household In The European Union
5. Warranty OROSYS SARL warrants that this TWO NOTES AUDIO ENGINEERING product shall be free of defects in parts and workmanship when used under normal operating conditions for a period of two (2) years from the date of purchase.
Page 5: Top Panel
2022/12/12 19:40 5/17 ReVolt Guitar - User Guide location, it is of vital importance that you keep the original packing materials. It is very diﬃcult to avoid damage when shipping the product without these materials. OROSYS SAS is not responsible for damages caused to the product by improper packaging and reserves the right to charge a reboxing fee for any unit returned for service without the original packing material.
Page 6 Last update: 2022/12/12 revolt_guitar:revolt_guitar_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_guitar:revolt_guitar_user_s_manual 14:25 A - AMERICAN CLEAN Name Function Adjusts the passive low frequency voicing section. BASS As the knob is rotated the signal is attenuated (down to -26dB) or boosted (up to +6dB), below 100Hz. Adjusts the passive high frequency voicing section. TREBLE As the knob is rotated your signal is attenuated (down to -13dB) or boosted (up to +12dB), above 1.5kHz.
Page 7 2022/12/12 19:40 7/17 ReVolt Guitar - User Guide Name Function Adjusts the output volume of the MODERN LEAD channel, the volume is positioned pre the VOLUME FX Loop. In the instance unwanted clipping occurs, try lowering the volume to ensure any subsequent devices in your signal path are not overdriven.
Page 8: Front Panel
F - CAB SIM Enables the analog cabinet simulation applied to the BALANCED and Headphone outputs of ReVolt by engaging the CAB SIM switch (I Position) For ReVolt Guitar, the analog simulation is inspired by a Marshall® 4×12 Slash Signature cabinet.
Page 9: Back Panel
2022/12/12 19:40 9/17 ReVolt Guitar - User Guide 4. Back Panel 1 - IN Connect your instrument here. The input is a ¼” TS (unbalanced) jack socket. 2 - SEND Use this unbalanced output to connect to eﬀects pedals or to an amp’s Instrument input when the 4- CABLE METHOD switch (E) is activated.
Page 10: Use Cases
Last update: 2022/12/12 revolt_guitar:revolt_guitar_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_guitar:revolt_guitar_user_s_manual 14:25 5 - MIDI IN/OUT The MIDI In/Out sockets are ⅛” TRS jack panel-mount connectors. One TRS 1/4” jack to MIDI type A adapter cable is provided with ReVolt. By default, ReVolt sends and receives Program Change (PC) messages from 1 to 7 . Edit all MIDI messages through ReVolt’s dedicated MIDI Setup menus (see the MIDI SETUP section of the manual for more details) 6 - BALANCED OUT...
Page 11 2022/12/12 19:40 11/17 ReVolt Guitar - User Guide Using the BALANCED OUT with the CAB SIM engaged, send your complete guitar tone out of ReVolt. Further reﬁne your tone by adding eﬀects in the FX Loop of ReVolt. You can also use a C.A.B. M+ connected to either the eﬀects loop or OUT output to add our class- leading DynIR cabinet emulation to your rig.
Page 12: Specifications
Last update: 2022/12/12 revolt_guitar:revolt_guitar_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_guitar:revolt_guitar_user_s_manual 14:25 SPECIFICATIONS Input Size Function / Speciﬁcations Jack 6.35 mm (1/4”), unbalanced (TS, Tip/Sleeve) 6.35mm (1/4“) Impedance: 1MΩ Jack 6.35mm (1/4“), unbalanced (TS) SEND 6.35mm (1/4”) Max output level: 11 dBu Impedance : 10kΩ Jack 6.35mm (1/4“), unbalanced (TS) Max input level: 11dBu RETURN 6.35mm (1/4“)
Page 13: Midi Setup
2022/12/12 19:40 13/17 ReVolt Guitar - User Guide LEDs will ﬂash quickly. To enter a sub-menu, press the footswitch C button. The “tube-window” color will quickly blink. Once in a sub-menu, a power-cycle is required to exit. Valid settings are saved immediately...
Page 14: Midi Learn
Last update: 2022/12/12 revolt_guitar:revolt_guitar_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_guitar:revolt_guitar_user_s_manual 14:25 3.2 MIDI Learn This menu can be used to set the MIDI PC number associated with each ReVolt Channel (including the Boost state per channel) and the Bypass Mode The Default MIDI PC values are as follows : Channel Channel Channel...
Page 15: Midi Channel
FS A = -1 FS B = +1 FS C = +10 Note: If you program the pedal to go further than max permitted MIDI PC starting value (122 for ReVolt Guitar, 125 for ReVolt Bass), it will revert back to the ﬁrst option and vice versa. 3.4 MIDI CHANNEL Please note, by default ReVolt’s MIDI Channel conﬁguration is set to 17 (OMNI)
Page 16 4.1 BOOST DEFAULT MODE Note, this is an option for how ReVolt Guitar’s boost behaves. Users can either choose Boost Default Mode or Boost Memo Mode. Boost Default Mode sets the default state of each channel - e.g. boost on or oﬀ...
Page 17 2022/12/12 19:40 17/17 ReVolt Guitar - User Guide Using this setup menu allows the user to select the FX loop state for each channel, when not using the 4CM mode. Once inside the menu, if the Channel LED shows ON, the FX loop is active for this channel. Press the corresponding channel footswitch to toggle between the ON/OFF FX loop states for the associated channel.
