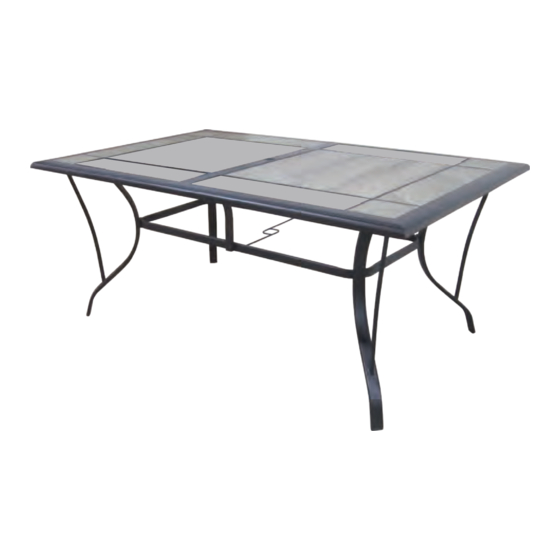

Courtyard Creations TCS67SD Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1 TCS67SD-CS05-1
2
TCS67SD-CS04-1
3 TCS67SD-CS04-2
4 62TGS66PAY101
5 13C??1B0200A001
Note:
The tiles are easy to be broken, be careful when you remove
them.
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.
Step 1:
Place the table top (#1) onto a non-abrasive surface, such as
a carpet, with its underside facing upwards. Fasten the legs
(#2) and the supports (#3) to the underside of the table top
(#1) rim by using bolts (#8). Keep the bolts loose.
See Figure 1.
!
Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely assembled.
!
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
E-2
INTENDED FOR RESIDENTIAL USE ONLY.
TCS67SD
PART Q'TY
TABLE TOP
LEG
SUPPORT
CENTER
CONNECTOR WITH RING
TILE A 600*600*10
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
6
13C??2CF100A001
1 7 13C??1B3000A001
4 8
17C40A0709001YX
2 9 17C40A0705001YX
1 10 17KAA0101----Y4
2 11 17KAC3101----Y3
FIGURE 1
2
8
TILE B 600*148.5*10
TILE C 149.5*149.5*10
BOLT M6*25
BOLT M6*15
HEX.KEY WRENCH 4MM
HEX. KEY WRENCH 10MM
2
2
3
3
1
25
#8 BOLT M6*25
COURTYARD CREATIONS INC.
6
4
8
8
1
1
2
