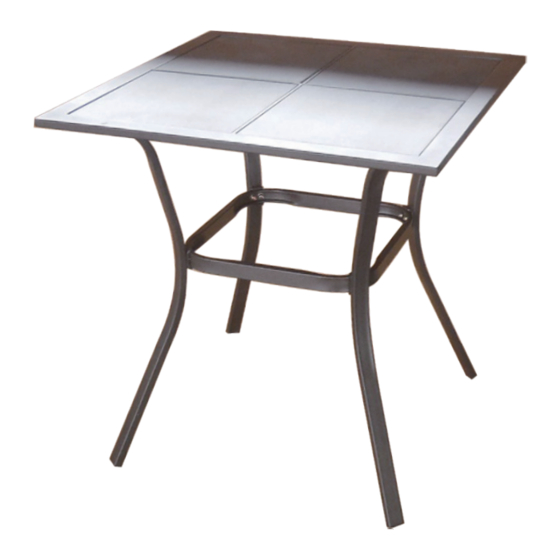

Courtyard Creations TCS26SH Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
TCS27SH-CS05-1
2
TCS27SH-CS04-1
3
62TCS27HVY101
Note:
The tiles are easy to be broken, be careful when you
remove them. Do not throw the residual tiles away,
retain them for future use.
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.

Step 1:

Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Fasten the legs (#2) to the underside of the table top
(#1) rim by using bolts (#5) . Keep the
bolts loose. See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely
!
assembled.
Do not sit or stand on this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
!
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TCS26SH
PART Q'TY
1
TABLE TOP
4
LEG
1
CENTER
CONNECTOR
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
4
13C??1B29008001
5
17C40A0705001YX
6
17KAA0101----Y4
7
17KAC3101----Y3
FIGURE 1
2
2
2
1
15
#5 BOLT M6*15
COURTYARD CREATIONS INC.
4
TILE
12
BOLT M6*15
1
HEX.KEY WRENCH 4MM
1
HEX.KEY WRENCH 10MM
2
5
