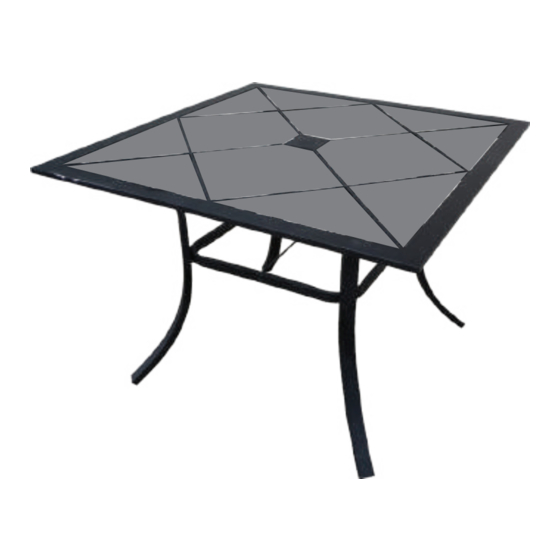

Courtyard Creations TCS38CJ Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
TCS38SF-CS05-1
2
TCS40CZ-CS04-1
3
TGS38CK-CS06-1

Tools

Ⅱ
Ⅰ
Note:
The tiles are easy to be broken, be careful when you
remove them.
!
Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely assembled.
!
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children.
Children should always be under direct adult supervision while using this product.
! Retain these assembly instructions for future reference.
! Quote the following FQC No. when contacting the service center.
E-219
INTENDED FOR RESIDENTIAL USE ONLY.
TCS38CJ
PART Q'TY
1
TABLE TOP
4
LEG
1
CENTER
CONNECTOR WITH RING
0 mm
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
4
13C??7B29008001
5
13C??ECP008001
6
17C33A0706001YX
7
17FA05040301-YX
10 20 30 40

FIGURE 1

PARTS REQUIRED: 1, 2, 6, & 7
Keep the bolts loose.
2
1
TILE A
TILE B
BOLT M6*15
WASHER d6.5*D13*1.0
50
60 70
2
2
2
COURTYARD CREATIONS INC.
4
8
12
12
100
80 90
6
7
