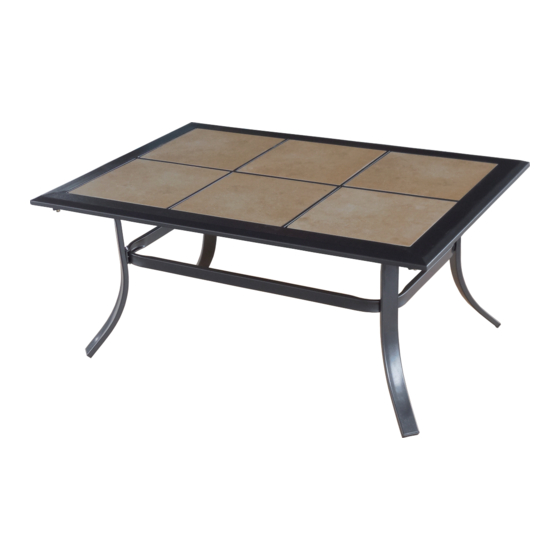

Courtyard Creations TCS41CK Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1 TCS41CK-CS01
2 TCS42CK-CS02
3 62TCS42CKY101
4 13C??1B29008001
5 17C33A0709001Y4
Note:
The tiles can break easily. Therefore, be careful
when removing them. Do not throw away the residual
tiles. Keep them for future use.
Attention:
Make sure that each bolt needed for all steps
matches the corresponding figure to ensure proper
assembly.
Step 1:
Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Fasten the legs (#2) to the underside of the table
top (#1) rim by using bolts (#5) and washers (#7).
Keep the bolts loose. See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely
!
assembled.
Do not sit or stand on this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
!
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TCS41CK
PART Q'TY
1
TABLE TOP
4
LEG
1
CENTER
CONNECTOR
6
TILE
4
BOLT M6*25
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
PART
MATERIAL CODE
NO.
6 17C01A0706001Y4
7 17FA05040301-Y4
8 18000337004
9 18000337001
10 17KAA0101----Y4
FIGURE 1
2
2
1
25
COURTYARD CREATIONS INC.
PART Q'TY
BOLT M6*16
WASHER d6.5*D13*1.0
BOLT CAP
BOLT CAP M6
HEX.KEY WRENCH 4MM
8
2
5
2
7
#5 BOLT M6*25
8
12
4
8
1
