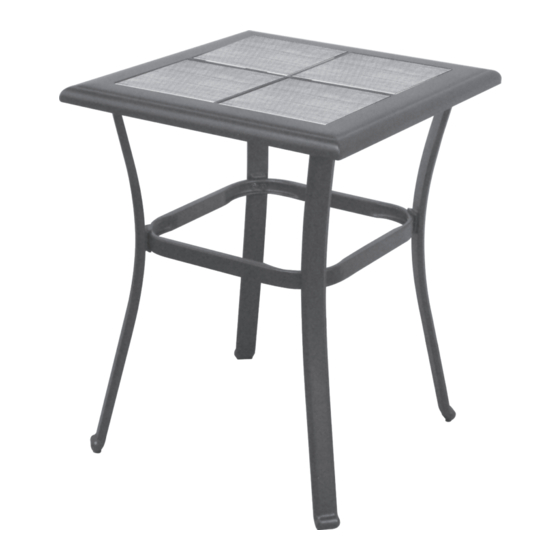

Courtyard Creations TCS21CW Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
TCS21CW-CS05-1
2
TCS21CW-CS04-1
3
62TCS27HVY101
Note:
The tiles can be easily broken, be careful when
removing them.
Step 1:
Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Fasten the legs (#2) to the
(#1) rim by using bolts (#5). Keep the bolts loose.
See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely assembled.
!
Do not sit or stand on this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
!
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC No. when contacting the service center.
!
V-3
INTENDED FOR RESIDENTIAL USE ONLY.
TCS21CW
PART
TABLE TOP
LEG
CENTER CONNECTOR
underside of the table top
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DO NOT RETURN TO THE STORE!
STOP
4
Q'TY 13C??B30008001
1 5
17C40A0705001YX
4 6
17KAA0101----Y4
1 7
17KAC3101----Y3
FIGURE 1
2
1
PAGE 1 OF 2
TILE
BOLT M6*15
HEX. KEY WRENCH 4MM
HEX. KEY WRENCH 10MM
2
2
2
COURTYARD CREATIONS INC.
4
12
1
1
5
