TM

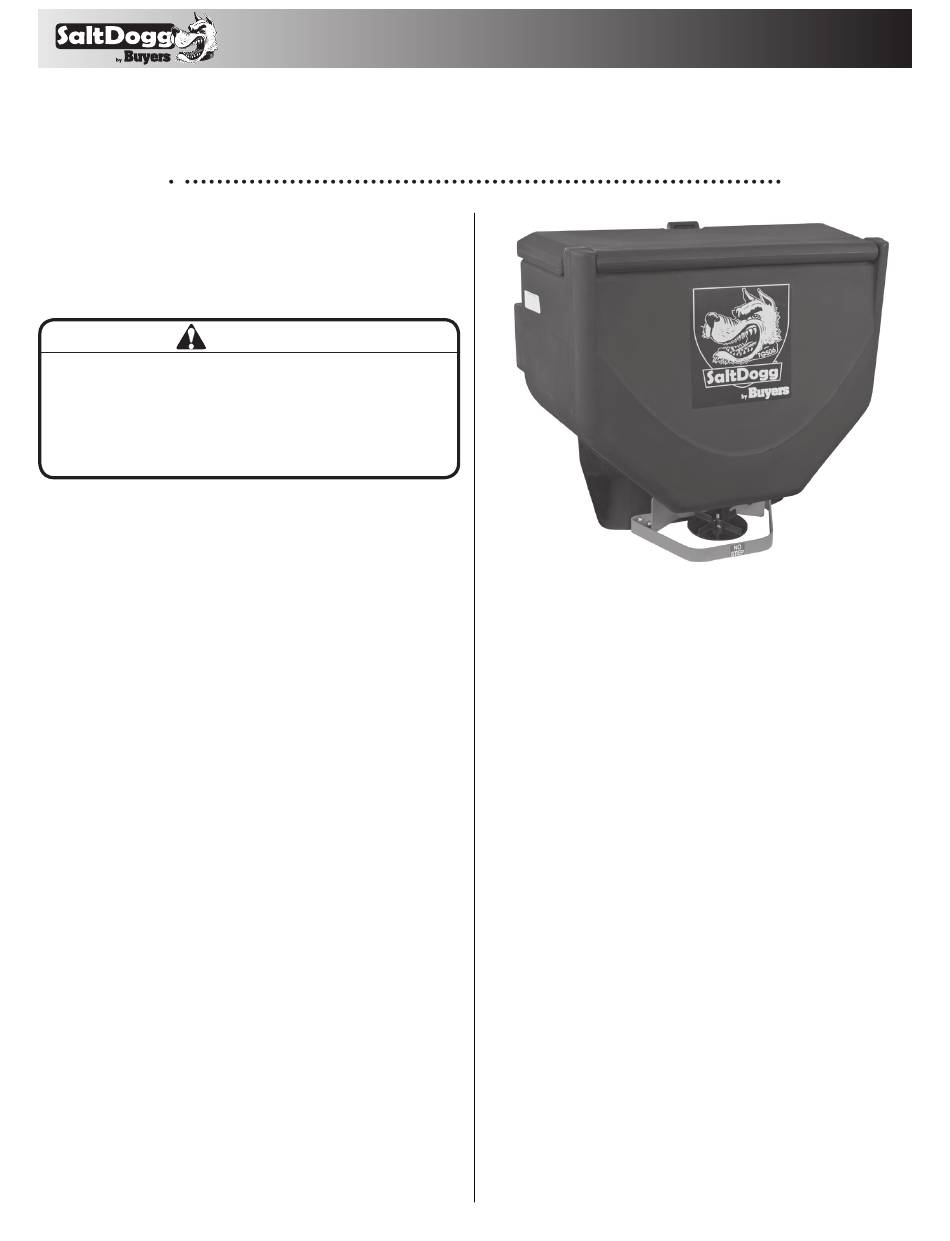

Installation Instructions

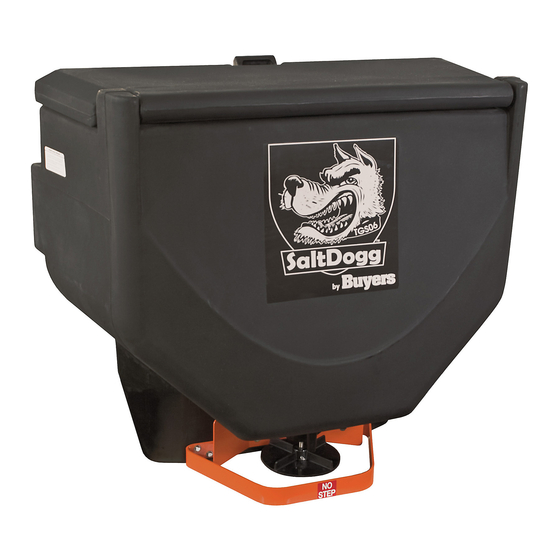

TGS06 Salt Spreader
Safety Precautions
WARNING
Observe the following Safety Precautions before, dur-
ing and after operating this spreader. By following
these precautions and common sense, possible injury to
persons and potential damage to this machine may be
avoided.
1. Read this entire Installation Instruction before
operating this spreader.
2. Read all safety decals on the spreader before
operating.
3. Verify that all personnel are clear of the spread-
er spray area before starting or operating this
spreader.
4. Do not adjust, clean, lubricate or unclog material
jams without first turning off the spreader.
5. Make sure the spreader is securely fastened to
the vehicle in accordance with this manual.
6. Do not operate a spreader that is in need of
maintenance or repairs.
7. Always disconnect the battery before removing
or replacing electrical components.
Spreader Assembly
Check contents of box against parts list to make
sure all components are included. When ordering
replacement or spare parts refer to parts list
(figures 8 and 9) for part numbers.
9
—continued inside
Advertisement
Related Manuals for Buyers SaltDogg TGS06
Summary of Contents for Buyers SaltDogg TGS06
- Page 1 Installation Instructions TGS06 Salt Spreader Safety Precautions WARNING Observe the following Safety Precautions before, dur- ing and after operating this spreader. By following these precautions and common sense, possible injury to persons and potential damage to this machine may be avoided.
- Page 2 • Assemble hardware (2) 1/2"-13 x 3.5" bolts 39, 1. Assemble and install Hitch Adjuster to spreader assembly. Refer to Fig. 1. (4) 1/2" washers 40, and (2) 1/2"-12 jam nuts 41. • Hand tighten hardware at this time. • Insert and align hitch adjuster 28 between mounting brackets as shown.
- Page 3 2. Assemble and install Hitch Receiver to Vehicle Select one of the three mounting holes, insuring opening in vertical tube is not obstructed by bumper. Option A (hitch assembly) suggested • Insert hitch pin 37 and secure with cotter pin 38. Refer to Fig.
- Page 4 3. Assemble Stake Pocket Mounts Refer to Fig. 3 • Insure “U” portion of retainer plate is facing up, or towards cover plate. • Assemble two stake pocket mounts as shown using (1) • Thread bolt into retainer nut plate using 2-2½ turns. This cover plate 32, (1) retainer nut plate 34, (1) retainer plate 35, bolt will be tightened once inserted into stake pocket and (1) 3/8"-16 x 2½"...
- Page 5 5. Install Spreader Assembly to Vehicle 6. Install Stake Pocket Straps Refer to Fig. 6 Refer to Fig. 5 • Insert (2) stake pocket straps 26 into holes located in • Lift and align the spreader so that the adjuster hitch aligns spreader.
-
Page 6: Maintenance Instructions
MOTOR PART #3009320 VIBRATOR PART #3008076 WIRE HARNESS 4-PIN PART #3008620 CONNECTOR WIRE PART #0203700 FUSE CONNECTOR CONNECTOR TO FUSE TERMINAL BATTERY OR IGNITION SWITCH POWER CABLE 2-PIN CONNECTOR is recommended to stay clear of the exhaust system. Excess heat can damage the wire harnesses. Use quick ties to secure harness to underbody. -
Page 7: Bill Of Materials
(Inside Hopper) (Inside Hopper) Fig. 8 Bill of Materials item pArt no. qty. description item pArt no. qty. description 3010963 Hopper TGS06 – Nut, Nylock 3/8-16 x 7/16 SST 3010965 Bumper TGS06 – Screw, Hex HD Cap 3/8-16 x 1½ SST 3009320 Motor, 12 VDC, 1000 RPM, 1/8 HP –... - Page 8 Screw, HH Cap 5/8-11 x 5.0 Gr 8 Zn Spcl 3010292 Spacer, Stake Pocket Washer, 5/8 SAE Flat Zn 3007795 Retainer Nut Plate Nut, Hex Nylock 5/8-11 SST 3007755 Plate Retainer 0203700 Wire Assembly for Ignition View other truck bed accessories made by Buyers on our website.
