Installation and Mounting:

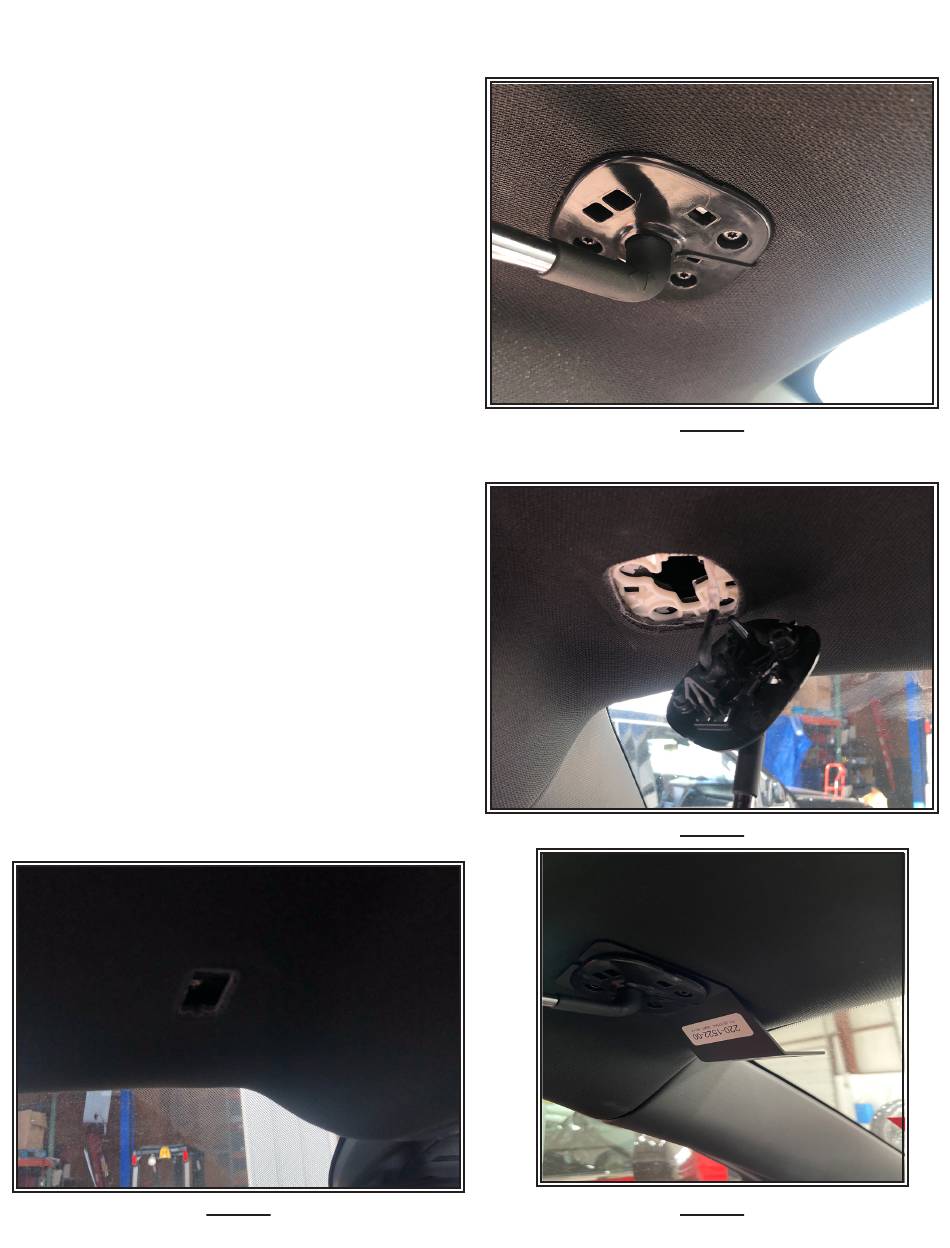

Step 1. Remove the plastic covers from the driver and passenger
outer sun visor pivot brackets as shown in Figure 1. Remove the
three (3) Torx screws from each pivot bracket as shown in Figure 2
and pull the visor pivot brackets down from the headliner. Thread
the screws all the way back into the plastic pivot bracket for easier
assembly later.
Step 2. Pry open the small cover on the sun visor retaining clip
with a small flat blade screwdriver to gain access to the sun visor
retaining clip screw. Remove the single Torx screw that holds
each clip in place. Note: The plastic visor clips are held to the
headliner fabric with stamped sheet metal clips that are located
above the headliner fabric. Carefully pull and angle the plastic clips
back and forth from side to side until the stamped sheet metal clips
release the plastic clips from the headliner as shown in Figure 3.
Remove the stamped clips and discard them so they don't interfere
with the Unit's Installation or cause rattles after the installation.
Thread the Torx screw back into the plastic clip just slightly for easier
assembly later.
Step 3. Position the outer bracket to the headliner and reinstall
the visor mount as shown in Figure 4. Leave screws loose for
adjustment.
Step 4. Position the inner bracket to the headliner and reinstall the
visor clip as shown in Figure 5. Leave screw loose for adjustment.
Step 5. Slide the light shield and product onto brackets as shown in
Figure 6. Ensure gasket is in the correct orientation before moving to
the next step.
Step 6. Mount the product to the brackets using provided hardware.
Leave screws loose for adjustment.
Step 7. Begin adjusting product and tightening all hardware until the
product is fully seated against the glass as shown in Figure 7.
Step 8. Mount the light shield to the product as shown in Figure 8.
Figure 3
Figure 1
Figure 2
Figure 4
Page 2 of 4
