Installation And Mounting; Wiring Instructions - Code 3 MEGA THIN CD3801 Installation And Operation Instruction Manual

Installation and Mounting:

IMPORTANT! This unit is a safety device and it must be connected
to its own separate, fused power point to assure its continued
operation should any other electrical accessory fail.
Note: It is recommended to isolate wires/blunt wires that were cut or not used.
10in-lbs max. screw torque

Wiring Instructions:

CD3801X
RED Wire: Positive (need to add 2A fuse)
BLACK Wire: Negative
BLUE Wire: Pattern Select to Negative
YELLOW Wire: Synchronized Function
(Up to 8 units can be Synchronized)
CAUTION!
When drilling into any vehicle surface, make sure that the
area is free from any electrical wires, fuel lines, vehicle
upholstery, etc. that could be damaged.

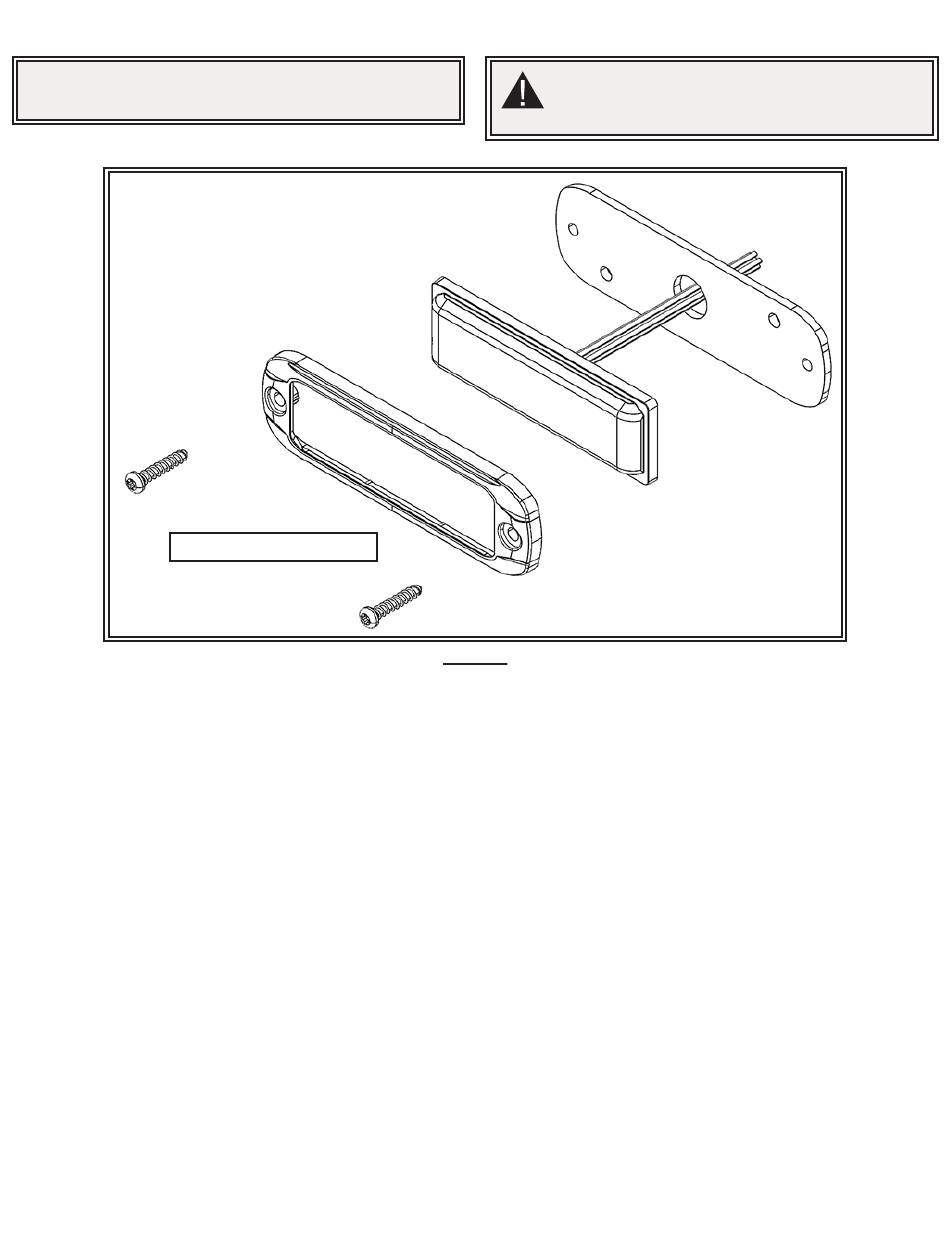

Figure 1
CD3802XX
RED Wire:
WHITE Wire:
BLACK Wire:
BLUE Wire:
YELLOW Wire:
(Up to 8 units can be Synchronized)
CD3802XXX
RED Wire:
WHITE Wire:
RED & WHITE Wire:
BLACK Wire:
BLUE Wire:
YELLOW Wire:
GREEN Wire:
(Up to 8 units can be Synchronized)
Positive, Colors 1 & 3 (need to add
2A fuse)
Positive, Colors 2 & 4 (need to add
2A fuse)
Negative
Pattern Select to Negative
Synchronized Function
Positive, Group 1 (need to add 2A
fuse)
Positive, Group 2 (need to add 2A
fuse)
Positive, Group 3 (need to add 2A
fuse)
Negative
Pattern Select to Negative
Synchronized Function
Mode Select
