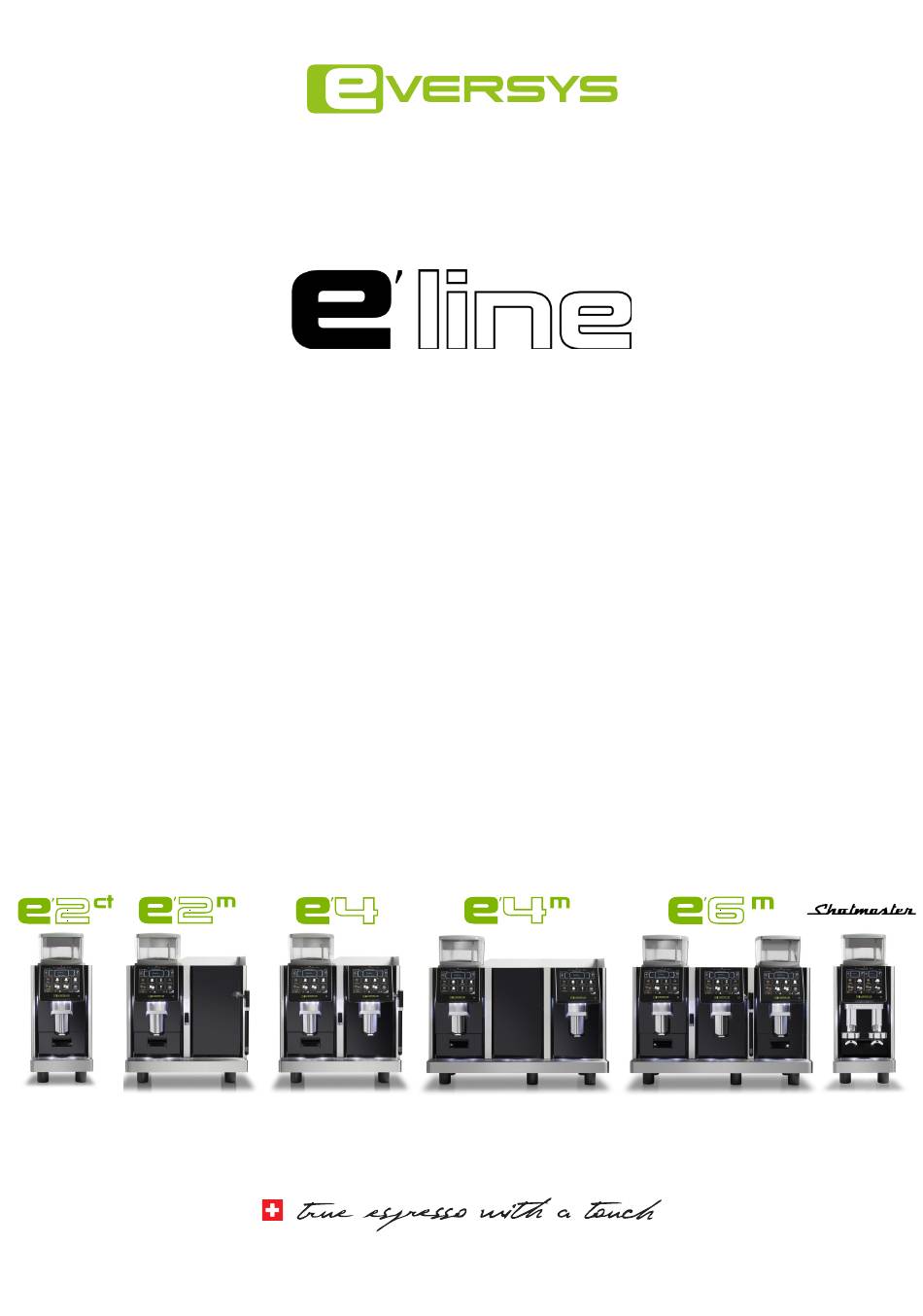

  • Page 1 User Manual DOC 107678 - 1.5 - 10/2019...
  • Page 2 (photocopy, photography, magnetic supports or other recording processes), without the written authorization of Eversys AG. All rights and particularly reproduction, translation, edition, distribution and also industrial property and recording are reserved.

  • Page 3: Table Of Contents

    Table of Contents For Your Safety..........9 Intended use ............... 9 Introduction...............10 1.2.1 Importance of the safety instructions.......10 1.2.2 Disregarding the safety rules ........10 1.3 Directives ..............10 General safety instructions .......... 11 Information for disposal ..........14 1.6 Decommissioning and disposal ........14 1.6.1 Packaging material ..........
  • Page 4 2.2.3 Touch screen ............20 2.3 Technical data ............21 2.3.1 Performance ............21 2.3.2 Eversys AG article number........21 2.3.3 Dimensions and weight of the machine (packed) ..21 2.3.4 Dimensions and weight of the machine (unpacked) . 21 2.3.5 Electrical data and power overview ......
  • Page 5 Table of Contents Operation ............37 Daily setup guidelines..........37 5.2 Switch on ..............38 5.2.1 Standby (wake up)..........38 5.3 Rinse ............... 39 5.3.1 Pre-heat rinse ............39 5.3.2 Auto-rinse ............. 39 5.4 Fill the coffee bean hoppers ........40 5.5 Cups heating panel ............
  • Page 6 Coffee / milk outlet ..........67 7.3.3 Bean hoppers (and decaffeinated powder chute)..67 7.3.4 Housing and display (touch screen)......67 7.3.5 Drip tray ..............68 7.3.6 Refill and visual check of the cleaning balls dispenser68 6/30 e’line User Manual © Eversys AG...
  • Page 7 Table of Contents 8 Troubleshooting ..........69 Error message example ..........69 8.2 Error messages ............70 8.3 FAQs ................ 78 8.3.1 Bean hoppers unlocked ...........78 8.3.2 No water connected ..........78 8.3.3 No milk dispensed...........78 8.3.4 Steam wand is clogged ...........78 8.3.5 Cups on the cup heater are not warm enough.
  • Page 8 11.4 User rights ............... 98 11.4.1 Statistic / History.............98 11.4.2 Product & Keys (e.g. Cappuccino)......99 11.4.3 Display..............100 11.4.4 Beans & Grinder............. 101 11.4.5 Clean / Standby............102 11.4.6 Password ..............102 11.4.7 Other settings and parameters ......102 8/30 e’line User Manual © Eversys AG...

  • Page 9: For Your Safety 1

    For Your Safety 1 This chapter sets out the intended use and safety instructions to ensure safe and trouble-free operation of the machine and its associated software. It also describes handling and storage conditions. The instructions contained in this User Manual must be adhered to in particular the safety instructions.

  • Page 10: Introduction

    Materials and articles intended to come into contact with food. • Regulations (EU) 10/2011 Plastic materials and articles intended to come into contact with foodstuffs. • - German Food and Feed Code (Lebensmittel-, Bedarfsgegenstände- und Futtermittelgesetzbuch - LFBG) 10/ 106 e’line User Manual © Eversys AG...

  • Page 11: General Safety Instructions

    The recommended maximum length for the power cord is 2 meters. The use of accessories, transducers and cables other than those specified, with the exception of transducers and cables sold by Eversys AG as replacement parts for internal components, may result in increased emissions or decreased immunity of e’line.
  • Page 12 It is imperative to use only the products, accessories, spare parts and software specified in this manual. The powder chute, the bean hoppers, and the Eversys cleaning ball dispenser may only be filled with materials for the use intended. Except for cups, do not place anything on top or above the e’line.
  • Page 13 Refer to method and frequency under “7 Care” on page Only use original Eversys cleaning products. Use of products that are not explicitly recommended by Eversys could damage the machine. It is forbidden to clean the machine with a water jet or a water spray.

  • Page 14: Information For Disposal

    1.6.2 Removal of equipment Disconnect the coffee machine from the power supply and water mains. If the coffee machine is hard- wired, it must be disconnected by an authorized service agent. 14/ 106 e’line User Manual © Eversys AG...

  • Page 15: Special Safety Instructions And Signs

    For Your Safety 1 Special safety instructions and signs Appropriate safety instructions are mentioned in the specific chapters. They should be observed in the same way as the general safety instructions contained in this chapter. 1.7.1 Signs The following signs can be found on the e’line. Associated warnings are explained in the table. Sign Description Explanation...

  • Page 16: Packaging Signs

    Maximum and minimum humidity limit. Maximum and minimum temperature limit. Stacking limit by number. Not to be vertically stacked higher than the specified number of items «n». Phytosanitary treatment of the pallet. Serial Number. 16/ 106 e’line User Manual © Eversys AG...

  • Page 17: Description 2

    Description 2 Chapter Overview This chapter offers a general overview and presentation of the e’line. Identification The e’line is a super automatic coffee machine that automates the entire process of making a perfect Barista coffee drink. The e’line coffee machine has numerous options. An overview of your machine is illustrated in the following chapters.

  • Page 18: Overview

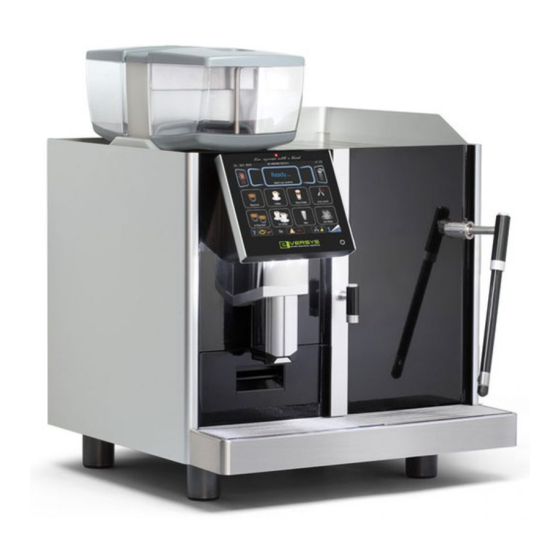

    2 Description Overview 2.2.1 Front view Fig. 2-1 Front view (1) Bean hopper rear (7) Steam wand (2) Eversys cleaning balls dispenser (8) Coffee outlet (3) Bean hopper front (9) Grounds drawer (4) Touch screen left (10) Drip tray (5) Touch screen right...

  • Page 19: Drip Tray And Drawer Removed

    Description 2 2.2.2 Drip tray and drawer removed Fig. 2-2 (1) Main power switch (see “5.2” on page (2) Water inlet 107678 V1.5-10/2019 19/ 106...

  • Page 20: Touch Screen

    For more information on the graphical user interface, refer to “3 Software” on page 29. Display of the stop and standby buttons depend on the settings. See chapter “11.4 User rights” on page 98. 20/ 106 e’line User Manual © Eversys AG...

  • Page 21: Technical Data

    Description 2 Technical data 2.3.1 Performance See datasheets in appendix Performance depends on cup size and machine settings. 2.3.2 Eversys AG article number Model e’2ct e’2 e’2m e’4 e’4m e’4 s/s e’6 e’6m shotmaster REF # 102098 102099 102100 102098...

  • Page 22: Electrical Data And Power Overview

    6000 W 6000 W 6000 W 4500 W 60 Hz, 30 A Frequency 50/60 Hz Power consumption 3000 W to 8600 W (machine on) Power consumption Less than 2 W (standby mode) 22/ 106 e’line User Manual © Eversys AG...

  • Page 23: Environmental Conditions

    Description 2 2.3.6 Environmental conditions Do not use the e’line outside of the defined ranges of environmental conditions. Description (all e’line) Operating temperature 10°C to 32°C Storage & transport temperature -10°C to 50°C (boilers empty). Relative humidity, no condensing 5 to 80% RH (storage, transport and operating) Transient over-voltage Category II 107678...

  • Page 24: Other Specifications

    If the main flow rate is under 200 LPH min, there is a risk of Main water flow rate (min.) damaging the water pump. Heat emission Noise < 70 dB (A) maximum 24/ 106 e’line User Manual © Eversys AG...

  • Page 25: Rating Plate

    Description 2 2.3.8 Rating plate The rating plate is located behind the left bean hopper. e’4 Please copy the following information from the identification label in the fields below: Type 2x1.5 L 5.6 L Serial number (SN) Fig. 2-4 Symbol Description Manufacturer’s reference (order number) Serial number...

  • Page 26: E'connect

    It is possible to provide dashboards to enable you to converge data into simple reporting. Specific user rights are necessary to access the telemetry system. Contact your service organization and/or refer to the e’CONNECT instructions for use for more information. 26/ 106 e’line User Manual © Eversys AG...

  • Page 27: Process Flow

    Fig. 2-5 (1) Grinding Eversys - designed ceramic blades driven by a powerful yet quiet motor, whose heat is cleverly channeled away from the coffee beans, to maintain their quality, via a set of fans. Electronic control maintains consistency of product throughout the day, ensuring optimal extraction at all times.
  • Page 28 2 Description PAGE INTENTIONALLY LEFT BLANK 28/ 106 e’line User Manual © Eversys AG...

  • Page 29: Software 3

    Software 3 Chapter Overview This chapter describes the software at a glance. Using the touch screen The e’line software is operated with a touch screen. • Press to click. • Swipe down from top (to open rinse or info layer). •...

  • Page 30: Main Screen

    (1) Product buttons (See “3.3” on page (4) Rinse button (See “5.3” on page (2) Emergency stop button (See “5.7” on (5) Footer strip (See page page (3) Header strip (See page 30/ 106 e’line User Manual © Eversys AG...

  • Page 31: Header Strip

    Software 3 3.2.1 Header strip The header strip is always visible except when the rinse top layer is displayed (see “5.3” on page 39). Fig. 3-2 Header strip (1) Login access area (long press to open: (3) Time “6.1” on page (2) Date (day, month and year) To change the language, time zone and date, please refer to “11.4.3 Display”...

  • Page 32: Product Buttons (Default)

    Ristretto Latte 2 x Espresso Cappuccino Coffee button Milkfoam Coffee powder - Decaf. (special Espresso Macchiato product) Americano Latte Macchiato Coffee Pot Milk Filter Coffee Manual Steam Hot Water Auto Steam Everfoam 32/ 106 e’line User Manual © Eversys AG...

  • Page 33: Help Button

    Software 3 Help button Display of this button depends on the settings. Default settings are limited to technician login (see “11.4.3” on page 100). The help button gives access to quick tips, such as how to: • Start cleaning of the machine. •...
  • Page 34 3 Software PAGE INTENTIONALLY LEFT BLANK 34/ 106 e’line User Manual © Eversys AG...

  • Page 35: Commissioning 4

    Commissioning 4 Chapter Overview This chapter outlines the initial setup of the machine. Initial commissioning It is imperative to read the “1.4 General safety instructions” on page 11 and understand this manual before commissioning the machine. Specifications for the electrical connection and the standards quoted apply for connecting the coffee machine in EU countries.

  • Page 36: Requirements Prior To Initial Commissioning

    If using the optional grounds bin make sure to previously cut out the countertop. Specific settings Settings are done by the Eversys service organization. If wishing to change factory parameters, make sure to go through the “11.4 User rights” on page 98 with your service engineer during commissioning.

  • Page 37: Operation 5

    “5.3” on page 39 Empty the grounds drawer. “5.8” on page 45 Fill with fresh coffee. “8.1” on page 69 If necessary, fill with “7.3.6” on page 68 Eversys cleaning balls Enjoy your drink! “5.6” on page 41 107678 V1.5-10/2019 37/ 106...

  • Page 38: Switch On

    Standby mode switches off all the functions like heating the boiler, the touch screen and the front lighting to save energy. It is possible to use this function to switch off, for instance overnight. 38/ 106 e’line User Manual © Eversys AG...

  • Page 39: Rinse

    Operation 5 Rinse To initialize the machine, it is necessary to rinse after each startup. Each time a rinse is necessary this button will flash. It is possible to rinse at any time by pressing the Rinse (1) button. The Rinse button dispenses hot water. Depending on settings, the Rinse button will display either in the products area or on a swipe-down layer.

  • Page 40: Fill The Coffee Bean Hoppers

    Fill the heating panel with cups. Be careful as the cups and the heating panel may be hot. Fig. 5-5 e’4m illustrated (with optional fridge/cup heater ref 101596) 40/ 106 e’line User Manual © Eversys AG...

  • Page 41: Make A Drink

    Operation 5 Make a drink It is not possible to outline all drink products in this manual. You can find an overview of the main types in the following chapters. To change settings or display of the product buttons, refer to “11.4.3 Display” on page 100. All product buttons function as stop/start buttons.

  • Page 42: Steam Product

    Each time the steam button is used, it is necessary to purge and wipe the steam wand. Press the purge button on the main screen (1). On the screen that displays, press purge. Wipe the steam wand with a damp cloth (2). Change cloths every day. Fig. 5-8 42/ 106 e’line User Manual © Eversys AG...

  • Page 43: Powder Coffee Product (Decaf.)

    Operation 5 5.6.6 Powder coffee product (decaf.) Only add ground coffee in the decaffeinated powder chute! Depending on settings, the Decaf. button may not be displayed in the products area. Refer to chapter “11.4.3 Display” on page 100 for more information. Press the button with measuring scoop (1).

  • Page 44: Emergency Stop

    To stop all products dispensing and all mechanical movements, press the mergency stop button (1). Depending on the settings, the STOP button may look different. Removing a lid stops all e’line functions. Fig. 5-10 44/ 106 e’line User Manual © Eversys AG...

  • Page 45: Empty Grounds Drawer

    Operation 5 Empty grounds drawer RISK OF BURNS. After first startup or during cleaning, the grounds drawer may contain hot water, empty it carefully (see “7” on page 59 for more information). Coffee grounds may be composted or recycled with organic waste (3). Once the grounds drawer is full with coffee cakes, empty it according to the following steps and the instructions displayed.

  • Page 46: Switch Off

    5 Operation Switch off Shut down the machine at the main power switch, to «O» (Off). Refer to chapter “5.2 Switch on” on page 38 for more information. 46/ 106 e’line User Manual © Eversys AG...

  • Page 47: End Of The Day Guidelines

    Operation 5 5.10 End of the day guidelines To avoid odors and possibly sticky coffee and milk residues (which might also block the machine), make cleaning part of your daily end-of-the-day procedure. This will ensure top quality coffee and smooth operation. Procedure See chapter Clean...

  • Page 48: Emergency Stop

    The e’line must be located in such a manner that the main switch and power cord are accessible at all times. The mains power socket must be located near the e’line and must be easily accessible by the operator. Fig. 5-13 Emergency stop 48/ 106 e’line User Manual © Eversys AG...

  • Page 49: Settings Menu

    Settings Menu 6 Chapter Overview This chapter outlines operator and manager basic settings. Never give your password to untrained users. Incorrect entries or changes may reduce the quality of drinks. The display of these chapters depends on your login level. Please refer to the Appendix, chapter “11.4 User rights”...

  • Page 50: Login Menu

    Operator access lets you view statistics (product counter) and cleaning history. (2) Menu example with manager access. Limited access for product settings and display functions. Full access to all statistics and history. Fig. 6-2 50/ 106 e’line User Manual © Eversys AG...

  • Page 51: Use Of The Menu Software

    Settings Menu 6 Use of the menu software Fig. 6-3 (1) Select a product. (2) Press a sub-menu to display its settings. (3) Slider: Slide left or right to adjust settings. (4) Up/down keys: Use these arrows (green) for fine adjustments. (5) Browse layers.

  • Page 52: Statistic / History

    This menu allows access to: • Product Counter. Fig. 6-4 All counters are linked to a password. It is possible to reset counters if necessary. 6.3.1 Product Counter Fig. 6-5 Total counter example Fig. 6-6 52/ 106 e’line User Manual © Eversys AG...

  • Page 53: Products & Keys

    Settings Menu 6 Products & Keys With manager access it is possible to modify the following settings. The hot water quantity is set in seconds when dispensed from the steam boiler and in ticks (controlled by the flowmeter) when it is dispensed from the coffee boiler. Adjustment range is 0 to 1000 ticks.

  • Page 54: Display

    • Color (fixed color under front panel) • Mix (whole color spectrum within 3 minutes) Number of display layers 1 to 3 layers (up to 12 products per layer depending on settings). 54/ 106 e’line User Manual © Eversys AG...

  • Page 55: Import Icons

    Settings Menu 6 6.5.1 Import Icons Process is similar to language import, see “6.5.2 Import Language” on page 55 Store the «.Icons» file in the main directory of the USB drive. The button Delete All Icons deletes all user defined icons. Filetype: JPEG or PNG.

  • Page 56: Beans & Grinder

    Adjustment tips Adjust by setting the grinder either finer or coarser to increase or decrease the extraction time. Average extraction time for two espressos at 25 ml each is 21 to 23 seconds. 56/ 106 e’line User Manual © Eversys AG...

  • Page 57: Clean / Standby

    Settings Menu 6 Clean / Standby Standby after cleaning • No (machine continues to work after cleaning). • Yes (machine switches to standby mode after cleaning). Standby On / Off times Set the time and choose the days.  The machine will automatically switch on, rinse and heat up accordingly. Wednesday Fig.

  • Page 58: Logout (Tech)

    6 Settings Menu Logout (tech). If a service engineer forgot to logout, check that nobody is still working on the machine and press Logout (1). Fig. 6-15 58/ 106 e’line User Manual © Eversys AG...

  • Page 59: Care 7

    . In case of unclear information, please contact your local service organization. Use only Eversys cleaning balls and Everclean solutions to clean the system. Ensure that no one ever ingests these cleaning solutions.

  • Page 60: Cleaning And Maintenance Operations

    If care and cleaning of the coffee machine is not carried out properly, dispensing milk beverages will constitute a food hygiene hazard point. All automatic cleaning operations are logged. See chapter “7.2 Periodic cleaning” on page 62. 60/ 106 e’line User Manual © Eversys AG...

  • Page 61: Maintenance

    Care 7 7.1.2 Maintenance The needs to be serviced every 12 months or every 50’000 products. Maintenance may only be carried out by a service organization appointed by the manufacturer. Please contact your local service organization for any maintenance tasks. Fig.

  • Page 62: Periodic Cleaning

    Cleaning plan Description Daily Weekly Or as required  Automatic system rinse page 39 Automatic system cleaning   page 64 Eversys cleaning balls Automatic milk system cleaning   page 64 Everclean   page 42 Steam wand  ...

  • Page 63: Cleaning Table

    Care 7 7.2.2 Cleaning table V = Visual inspection, C = Clean, R = Replace Daily Weekly Or as required Fig. 7-2 107678 V1.5-10/2019 63/ 106...

  • Page 64: Cleaning Procedures

    Fig. 7-4 Remove the milk tank (1) and store it in a fridge during the cleaning process. If necessary clean the milk tank with warm water and soft soap. Rinse thoroughly. Fig. 7-5 64/ 106 e’line User Manual © Eversys AG...
  • Page 65 Care 7 Fill the empty Everclean cleaning tank (2.1) with 25 ml Everclean (press pump once, e’2m) or with 50 ml Everclean (press pump twice, e’4m - e’6m) and place the milk in-take tube (2.2) inside of it. Press Continue (3). e’2m: 25 ml of Everclean (press pump once) e’4m - e’6m:...
  • Page 66 RISK OF BURNS. The grounds drawer contains hot water, so empty it carefully. Lift the drip tray and replace the grounds drawer (10). Fig. 7-10 Acknowledge emptying of the grounds drawer. Fig. 7-11 66/ 106 e’line User Manual © Eversys AG...

  • Page 67: Coffee / Milk Outlet

    Care 7 7.3.2 Coffee / milk outlet To clean the coffee / milk outlet proceed as follows. Switch off the machine at the main switch (see “5.9 Switch off” on page 46). Gently pull (1) to remove it. Clean with soft soap and use a nylon hand tube brush to clean the holes (2). Gently reassemble in the reverse order.

  • Page 68: Drip Tray

    Make sure to previously switch off the machine. There is a risk of minor injury with moving parts. If necessary, clean the dispenser and remove the blocked or broken cleaning balls. Refill with Eversys cleaning balls Make sure that there are no broken Eversys cleaning balls Replace the lid (1). Fig. 7-15 68/ 106 e’line User Manual...

  • Page 69: Troubleshooting 8

    In case of unclear information, please contact your local service organization. Error message example All Eversys coffee machines are equipped with an internal troubleshooting and error message system. The following screen shows an example. If an action of the user is required, the warning sign (1) is displayed.

  • Page 70: Error Messages

    Steam boiler connector mis- Contact service organization. sing E-197 Please set machine type Contact service organization. E-198 Please start software update Contact service organization. E-199 See E-099 on page 70. Communication Error Steam 70/ 106 e’line User Manual © Eversys AG...
  • Page 71 Troubleshooting 8 Info message Explanation / Corrective action Refer to S-000 Initialize, please wait... Wait until the initialization has finished S-001 Wait until the coffee boiler has reached its nomi- Coffee boiler is heating... nal temperature. S-002 Check if the bean hopper or lid is inserted correc- “5.4”...
  • Page 72 2) Fill the empty cleaning tank 2) Fill the empty cleaning tank with 25ml “7.3.1” on page 64 with 25 ml Everclean (press Everclean (press pump once) pump once) 3) Press "Continue". 3) Press "Continue". 72/ 106 e’line User Manual © Eversys AG...
  • Page 73 Troubleshooting 8 Info message Explanation / Corrective action Refer to S-027 Interface not detected. All coffee products are locked. This message only occurs if you use an external Please check the interface interface (CSI or CCI). connection and setting. S-028 The milk system has been Can only occur if you have set the parameter "If “11.4.7”...
  • Page 74 => Please check the brewing unit. W-013 The machine has reached the predefined number Service necessary. Please of products or the service date interval has contact your service techni- elapsed. cian. Please call your service technician. 74/ 106 e’line User Manual © Eversys AG...
  • Page 75 Troubleshooting 8 Info message Explanation / Corrective action Refer to W-014 Predefined water amount has been reached. The water filter has to be changed after its life Please change the water filter. time cycle. Otherwise the boilers will be damaged due to the limescale.
  • Page 76 Please press "Continue" to If the warning doesn't disappear after the rinse, page 98 start a rinse. login with manager password: => Consult the rinse history for more information => Please call your service technician. 76/ 106 e’line User Manual © Eversys AG...
  • Page 77 Troubleshooting 8 Info message Explanation / Corrective action Refer to W-077 The flow rate during rinse is The flow rate during rinse on the front side is “11.4.1” on too high. higher than 15 ticks/s. Consult the rinse history for Please call your service technician.

  • Page 78: Faqs

     The cup heater is not intended to keep cups warm in a cold air flow (e.g. near an open window or door). See chapter “5.5 Cups heating panel” on page 40 78/ 106 e’line User Manual © Eversys AG...

  • Page 79: Options 9

    Options 9 Chapter Overview This chapter describes all e’line options. Option list 9.1.1 e’2 line e’2 e’2m e’2m Description Shotmaster e’2ct e’2 e’2m fridge Everfoam Steam - automated      milk foam production (e’foam) Additional steam wand ...

  • Page 80: E'4 Line E'6 Line

     Coffee pot dispensing outlet Option selection 2 kinds of milk       9.10 e’4m          Cup centering guide 9.11 80/ 106 e’line User Manual © Eversys AG...

  • Page 81: Everfoam

    An air injector is a added to the milk module which allows to make milk-foam automatically with the steam wand. The Eversys' improved Foam system provides a 2-step Barista solution. This generation of e'Foam allows you to texture the milk by product type. This is done through the Micro AirDosing (MAD) system controlled electronically.

  • Page 82: No Steam Wand

    No steam wand No steam wand is installed (e.g. self-service machines). Everfoam, manual steam and auto steam functions described in this manual are not available if there is no steam wand. Fig. 9-3 82/ 106 e’line User Manual © Eversys AG...

  • Page 83: Undercounter Ground Coffee Disposal

    Options 9 Undercounter ground coffee disposal The undercounter ground coffee disposal allows a higher amount of coffee grounds in the bin. Your service engineer will configure settings according to your needs during initial commissioning. Fig. 9-4 (1) Grounds chute table, inserted into the counter-top cut out by your service engineer during initial commissioning.

  • Page 84: Decaffeinated Powder Chute

    Add one portion of ground coffee max. 20 g (0.7 oz). Use espresso fine grind coffee for optimal in-cup quality. Close the powder chute lid and press Continue to dispense the product. Fig. 9-5 Led illuminated rear panel The Led illuminated rear panel displays a white light. Fig. 9-6 84/ 106 e’line User Manual © Eversys AG...

  • Page 85: Bean Hopper Lock

    Options 9 Bean hopper lock The bean hopper lock is available for safety purpose (e.g. self-service machines). Fig. 9-7 Coffee pot dispensing outlet This option is available to fill coffee pots that don’t fit under the standard coffee outlet (max. adjustable height 165 mm (6.5 in)).

  • Page 86: Option Selection 2 Kinds Of Milk

    If using e.g. regular milk on milk tank #1 and e.g. soy milk on milk tank #2, it is not possible to guarantee Lactose-Free Milk on milk tank #2. 9.11 Cup centering A guide is clipped to the drip tray, to help center cups under the coffee outlet. Fig. 9-10 86/ 106 e’line User Manual © Eversys AG...

  • Page 87: Warranty And Generalities

    Mandatory service and maintenance schedule not respected; Mandatory daily cleaning not respected; Damage due to improper storage; Use contrary to the instructions given in this manual or according to information other than the manufacturer’s original tips. Each e’line is tested by Eversys AG before shipping. 107678 V1.5-10/2019...

  • Page 88: Glossary

    10.2.3 Injury Minor Injury A reversible injury that does not require medical treatment. Moderate Injury A reversible injury that does require medical treatment. 88/ 106 e’line User Manual © Eversys AG...

  • Page 89: Products (And Coffee Product Types)

    This is the e’line coffee machine manufactured by Eversys AG. Everfoam (e’foam) The Eversys' improved Foam system provides a 2-step Barista solution. This generation of e'Foam allows you to texture the milk by product type. This is done through the Micro Air Dosing (MAD) system controlled electronically.

  • Page 90: Typographical Conventions

    • Procedure results use this symbol: • Software buttons: text in bold italic style is used (e.g. OK, Save, Rinse). • List of numbers: text linked to an illustration (1, 2, 3). 90/ 106 e’line User Manual © Eversys AG...

  • Page 91: Appendix 11

    This chapter contains additional content such as the equipment list, user manager module and more. 11.1 Equipment list Description Quantity e’line machine (c’2ct or c’2 or c’2m or c’fridge) Eversys cleaning balls container (62 pcs) Water inlet hose (3/8”-3/8”, L=2 m) Hose clamp 16-27 mm Drain hose (Ø22/16 - 2 m) Drain connection O-ring (Ø15.6x1.78 mm)

  • Page 92: Spare Parts Ordering

    Coffee boiler size 2 x 1.5 Litre (2 x 0.39 gal US) pH value: ideal 7.0 - 7.2 Lighting concept Front panel full color LED Dimensions: mm (inch) 282 (11) 600 (23.6) 92/ 106 Cameo User Manual © Eversys AG...

  • Page 93: E'2Ct

    Appendix 11 11.3.2 e’2ct e'2 ct e'2 ct w/h/d mm 282/713/600 w/h/d (inch) (11 / 27.9 / 23.6) weight kg weight (lb) Coffee 175 Espresso / hour at 23s extraction time 1/N/PE, 220-240V~, 50/60Hz, 15A, 3.0 Single-phase 2 Espresso at the same time 2/PE, 200-210V~, 50/60Hz, 15A, 2.5kW Two-phases Hot Water...

  • Page 94: E'2 / E'2M

    5.6 litre (1.48 gal US) Milk tube length max 1.5m (59 inch) Coffee boiler size 1.5 litre (0.39 gal US) Lighting concept Front panel full color LED Dimensions: mm (inch) 560 (22) 840 (33) 600 (23.6) 94/ 106 Cameo User Manual © Eversys AG...

  • Page 95: E'4 / E'4M

    Appendix 11 11.3.4 e'4 / e'4m e'4m / fridge e'4 / e'4m e'4 / e'4m / cup heater e'4m e'4m e'4m cup heater cup heater fridge w/h/d mm 560/713/600 560/713/600 840/713/600 840/713/600 840/713/600 w/h/d (inch) (22 / 27.9 / 23.6) (22 / 27.9 / 23.6) (33 / 27.9 / 23.6) (33 / 27.9 / 23.6)

  • Page 96: E'4M Self-Service

    7.0 - 7.2 Coffee boiler size 2 x 1.5 Litre (2 x 0.39 gal US) Lighting concept Front panel full color LED Dimensions: mm (inch) 600 (23.6) 840 (33) 96/ 106 Cameo User Manual © Eversys AG...

  • Page 97: E'6 / E'6M

    Appendix 11 11.3.6 e’6 / e’6m e'6 / e'6m e'6m w/h/d mm 840/713/600 840/713/600 w/h/d (inch) (33 / 27.9 / 23.6) (33 / 27.9 / 23.6) weight kg weight (lb) Coffee 525 Espresso / hour at 23s extraction time 6 Espresso at the same time 1/N/PE, 220-240V~, 50/60Hz, 25A, 5.8kW Single-phase Steam...

  • Page 98: User Rights

    - Total counter “6.3.1” on page 52  Machine Counter  History  - Product history  - Error history  - Cleaning history  - Rinse history  - Service history 98/ 106 Cameo User Manual © Eversys AG...

  • Page 99: Product & Keys (E.g. Cappuccino)

    Appendix 11 11.4.2 Product & Keys (e.g. Cappuccino) Parameter Default Operator Manager Tech See chapter page 1/2  Contact service  Contact service   Product test “5” on page 53   Learn water “4” on page 53  Product type Contact service ...

  • Page 100: Display

    Contact service   Display brightness Contact service  Show help button Contact service  Show grinder adjust button Contact service  Show rinse key Contact service  Show stop key Contact service 100/ 106 Cameo User Manual © Eversys AG...

  • Page 101: Beans & Grinder

    Appendix 11 11.4.4 Beans & Grinder Operator Parameter Default (password Manager Tech See chapter protected)    Grind Hopper front “6.6” on page 56    finer (-) [1/100 mm] “6.6” on page 56    Coarser (+) [1/100 mm] “6.6”...

  • Page 102: Clean / Standby

    Manager “6.8” on page 57   - Change password “6.8” on page 57 11.4.7 Other settings and parameters For all other settings and parameters not listed, please contact your service organization. 102/ 106 Cameo User Manual © Eversys AG...
  • Page 103 Index Eversys cleaning balls ....... 18, 89 Eversys cleaning ballsTM .........12 Bean hoppers .......... 18, 19 Bean hoppers unlocked ........78 Blocked or broken cleaning balls ....68, 74 Burning danger ..........15 Front view ........... 18 Coffee outlet ..........18 Heating panel ..........
  • Page 104 Water tap closed .......... 15 Protective earthing ........15 Water tap open ..........15 Water Temperature ........53 Rating plate..........25 Refill Eversys cleaning balls ......68 Rinse ............39 Risk of burns ..........11 Risk of electrocution ........11 Safety Importance of the instructions ....10 Non-compliance with rules ......
  • Page 105 Notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................107678 V1.5-10/2019 105/ 106...
  • Page 106 Foam ™ and e’ Clean ™ are trademarked Eversys AG www.cameo-espresso.com and regional distributors. These partners property of Eversys AG. This manual is Rue du Biais 19 www.eversys.com provide a fully integrated service pro- designed for final user purpose only 1957 Ardon - Switzerland sales@eversys.com...
