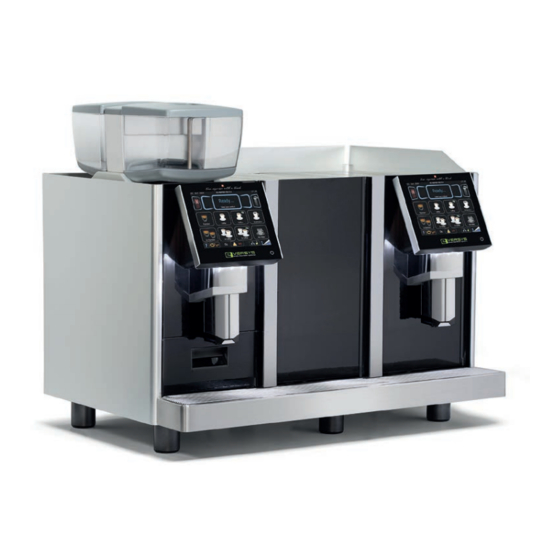

Eversys e4 Installation Information

Data sheet and installation information
1. Machine configuration and overall dimensions
w/h/d mm
w/h/d (inch)
weight kg
weight (lb)
Capacity
Coffee 350 Espresso / hour at 23s extraction time
4 Espresso at the same time
Hot Water 150 hot water units / hour, 200ml (6.8 oz US)
Milk system 350 Cappuccino / hour
Technical data
Brew chamber 2 x up to 24g
Grinding 2 x drive ceramic grinder disk
User Interface 2 x 8" color touch screen
Bean hoppers 2 x 1.5kg (3.3 lb)
Coffee spout hgt 65mm to165mm (2.55 to 6.49 inch)
Interface USB, SD-Card, Ethernet, Serial, RS-232, CCI
Standby mode less than 2W
Steam boiler size 5.6 litre (1.48 gal US)
Coffee boiler size 2 x 1.5 Litre (2 x 0.39 gal US)
Lighting concept Front panel full color LED
Eversys AG I Rue du Biais 19 I 1957 Ardon I Switzerland
161010_Data_sheet_and_installation_e4self_4004_EN
e'4m Self-Service
Dimensions: mm (inch)
840 (33)
+41 27 305 25 50
Page_1_of_2
e'4m Self-Service
840/713/600
(33 / 27.9 / 23.6)
119
262
Power requirement
1/N/PE, 220-240V~, 50/60Hz, 25A, 5.8kW
Single-phase
2/PE, 200-210V~, 50/60Hz, 30A, 4.9kW
Two-phases
3/N/PE, 380-420V~, 50/60Hz, 15A, 9.6kW
Three-phases
Three-phases
3/PE, Δ 220-230V~, 50/60Hz, 20A, 5.8kW
(Triangle)
Water Connection
Water G3/8" female, 2.5 - 4 bar,
Water hose 2 m length (78.7 inch)
Drain Self priming (see drawing rear side)
Water quality Total hardness: 5 - 8°dGH (89-142 ppm)
Carbonate hardness: max. 6°dKH (107 ppm)
pH value: ideal 7.0 - 7.2
600 (23.6)
eversys@eversys.com www.eversys.com
10.2016 / V4
