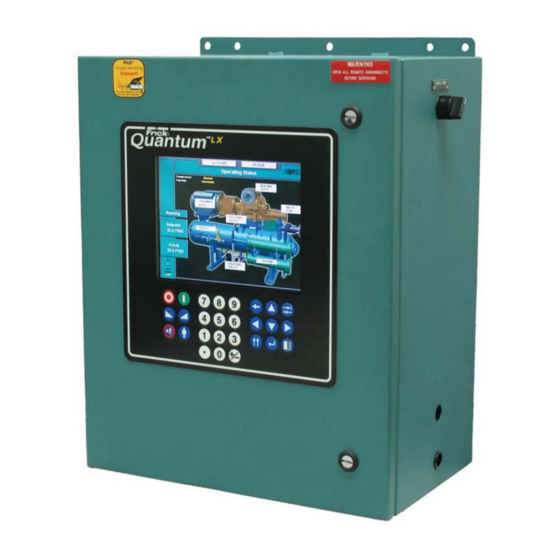

COMMUNICATIONS SETUP
FRICK
QUANTUM™ LX
®
COMPRESSOR
Version 7.0x
Form 090.020-CS (JUNE 2011)
COMUNICATIONS SETUP
File:
SERVICE MANUAL - Section 90
Replaces:
090.020 CS (MAR 10)
Dist:
3, 3a, 3b, 3c
