Description of Left-Side of Tablet Client

ORTS
S
LOTS AND
The Motion Tablet Client contains a number of ports and connectors that
C
ONNECTORS
you can use to attach to input/output and networking devices. The following

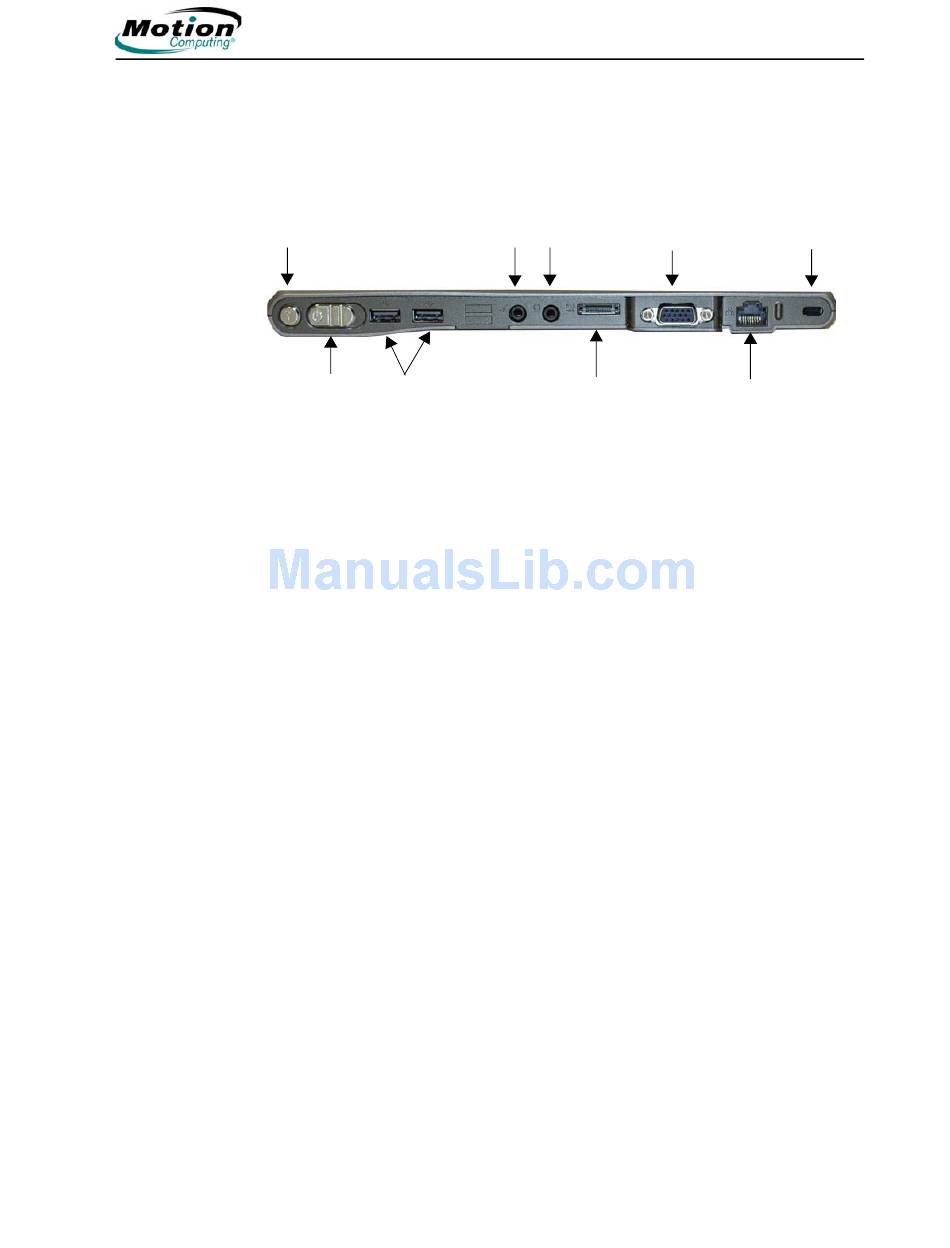

illustration shows the ports, slots, and connectors that are located on the left
side of the LE1600
Wireless On/Off
USB Connectors. Two USB connectors are included. These can be used
to connect any USB device to the Tablet Client.
Audio In/Out Connectors. The connectors are marked for microphone
input and speaker output connections.
DVI-D Connector. The Digital Video Interface (DVI-D) connector can be
used to attach a third-party Digital Video Interface enabled monitor to the
Tablet Client. An optional DVI-D cable is offered by Motion Computing for
this purpose. Refer to "Mirroring or Extending Your Display" on page 25
about how to set up video that is displayed on an attached external display/
monitor.
VGA Connector. The VGA connector can be used to attach a third-party
VGA capable display/monitor to the Tablet Client. Motion Computing does
not provide a VGA cable; refer to the information that came with your
display for the type of cable to use.
LAN Connector. This is a Gigabit Ethernet LAN (RJ-45) connector that
can be used to connect to a network, cable modem, or DSL; it contains two
status LEDs.
Tablet Client.
TC
Power USB Connectors
Motion Computing LE1600
Chapter 1 Getting Started with Your Tablet Client
Audio In/Out
VGA
DVI-D
LAN Connector
Tablet Client User Guide
