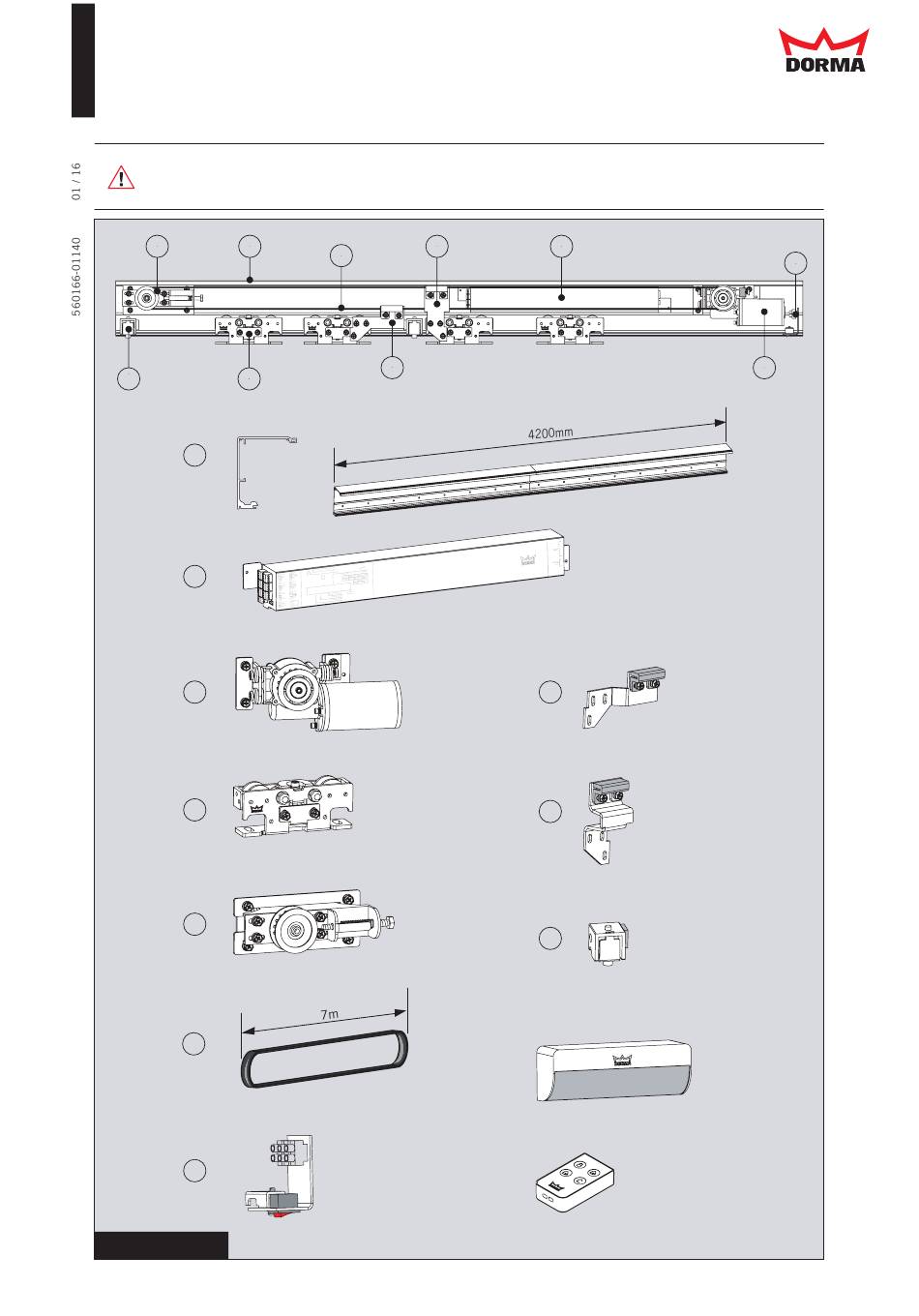

- Page 1 ES 68 SERIES 精智系列 — Mounting Instructions 安装说明 Installation is to be carried out by trained professionals (e.g. electricians) only! 安装人士均应受过培训，并通过相关技能考核（如：专业电工）！ Package Contents...
- Page 2 ES 68 SERIES 精智系列 — L min = 2 x PW + 370, DW = PW/2 + 50 (in mm) Double Opening (DW<900mm) L min = 2 x PW + 100, DW = PW/2 + 50 150 150 (in mm)
- Page 3 ES 68 SERIES 精智系列 — L min = PW x 2 + 220, DW = PW + 50 (in mm) Single Left-Open (DW<900mm) L min = PW x 2 + 220, DW = PW + 50 (in mm) Single Right-Open (DW<900mm)
- Page 4 ES 68 SERIES 精智系列 — L min = PW x 2 + 50, DW = PW + 50 (in mm) Single Left-Open (DW≥900mm) L min = PW x 2 + 50, DW = PW + 50 (in mm) Single Right-Open (DW≥900mm)
- Page 5 ES 68 SERIES 精智系列 — Mounting Height < 4mm ~400 Ø7 < 4mm...
- Page 6 ES 68 SERIES 精智系列 —...
- Page 7 ES 68 SERIES 精智系列 — < 8mm 2-3mm 2-3mm...
- Page 8 ES 68 SERIES 精智系列 — > 40mm...
- Page 9 ES 68 SERIES 精智系列 — 110V AC 230V AC...
- Page 10 ES 68 SERIES 精智系列 — DORMA Install SAFETY sensors! 安装安全感应器！...
- Page 11 ES 68 SERIES 精智系列 — DIRECTION E-MODE RIGHT ON ON BATTERY LEFT OFF OPEN CLOSE OFF OFF NONE ON DIP HOLD OPEN TIME LEARN CLOSING SPEED OPENING SPEED LEARN DIRECTION RIGHT ON DIP DIRECTION LEFT ON DIP...
- Page 12 ES 68 SERIES 精智系列 — Troubleshooting 故障诊断 Error Possible Cause Measures 故障描述 可能原因 措施 Power failure Check if power supply complies with requirements. 电源故障 检查系统电源是否符合要求。 Door obstruction Check if there is obstruction causing the operator to go into safe mode.
