ED700
Low Energy
Automatic Swing Door
LOW ENERGY
AUTOMATIC SWING DOOR
INSTALLATION AND TUNE IN MANUAL
Distributed by:
924 Sherwood Drive
Lake Bluff, IL 60044
E-mail: automatics@dorma-usa.com
Toll-Free: 877-367-6211
Fax: 877-423-7999
Subject to change without notice
1
6/08
DL3038-010 Rev. B
Advertisement
Table of Contents
Related Manuals for Dorma ED700
Summary of Contents for Dorma ED700
- Page 1 ED700 DORMA Low Energy Automatic Swing Door LOW ENERGY AUTOMATIC SWING DOOR INSTALLATION AND TUNE IN MANUAL Distributed by: DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev. B E-mail: automatics@dorma-usa.com Subject to change without notice...
- Page 2 ED700 DORMA Low Energy Automatic Swing Door Contents ED700 LOW ENERGY AUTOMATIC DOOR OPERATOR Page Number 1. Cover 2. Contents 3. Instructions, Safety Standards and Suggested Tools 4. Sales Packages Surface Applied 5. Arm Styles 6. Mounting the Header 7. Installing the Operator 8.
- Page 3 After installation and adjustment, the installers final responsibility is to properly Instruct the owner in the safe use of the door. He must also present the owner With the ED700 Owner’s Manual and carefully explain how to perform the Daily Safety Check. Save These Instructions for Future Reference Compliance with Safety Standards Your door system was designed to the latest operating and safety standards.
- Page 4 ED700 Low Energy DORMA Automatic Swing Door ED700 SALES PACKAGES: SURFACE APPLIED See page 25 for minimum and maximum header lengths and door weights. PULL (IN) PULL (IN) PUSH (OUT) DS2418-02A OR DS2418-02B DS2419-02A OR DS2419-02B DS2519-02A OR DS2519-02B PULL (IN)
- Page 5 ASSY, TRACK ARM LH DB DS2409-01A ASSY, SLIDE TRACK DS2409-01B ASSY, SLIDE TRACK Scissor Arm (Push) Slide Track Arm (Pull) 0’- 6” Reveals DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev. B E-mail: automatics@dorma-usa.com...
- Page 6 ” 4 ” (= Door width + 3”) “ ” 11” Incoming 115VAC (opposite pivot) DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev. B E-mail: automatics@dorma-usa.com Subject to change without notice...
- Page 7 WITHOUT FIRST CONNECTING THE CONTROLER TO THE OPERATOR. THE CLOSING SPEED CONTROL IS IN THE CONTROLER, ALLOWING THE OPERATOR TO SLAM CLOSED WITHOUT THE CONTROLER CONNECTED MAY RESULT IN DAMAGE TO THE OPERATOR. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211...
- Page 8 (Phillips screwdriver required). #2 Header Bottom Drill Ø1” hole for clearace. #6-32 x ½” Recommended Locations for Mode Switch. Place Mode Switch in opening and fasten. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev.
- Page 9 GROUND ATTACHED TO HEADER White Motor POWER Green Black 115 Vac Connect Operator Internal Wiring to Control DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev. B E-mail: automatics@dorma-usa.com Subject to change without notice...
- Page 10 Please see Sensors Manufacturer’s Installation Guides for further instructions and wiring details. Follow the installation and adjustment instructions accompanying the sensors to be installed. Insure compliance with BHMA/ANSI Standards. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044...
- Page 11 If the control will not rotate to the hardstop the control may need to be reset to default settings. Reseting the control to defaults. REFER TO BOTTOM OF PAGE 19 FOR DETAILS • The display will read “ALL”. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev.
- Page 12 If you can not swing the door past 90 degrees there are alternative options to preload the arm please contact technical services for assistance. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211...
- Page 13 MICROPROCESSOR CONTROL 115 VAC 60 Hz DORMA AUTOMATICS Phone: 877-367-6211 Motor: 4A slow blow Line: 2A fast acting THIS OPERATOR CONTROLLER MUST BE ADJUSTED TO MEET ANSI STANDARDS BY DORMA TRAINED PERSONNEL Breakout 2“ 2” 4” Incoming 120VAC (opposite pivot) 16”...
- Page 14 MICROPROCESSOR CONTROL 115 VAC 60 Hz DORMA AUTOMATICS Phone: 877-367-6211 Motor: 4A slow blow Line: 2A fast acting THIS OPERATOR CONTROLLER MUST BE ADJUSTED TO MEET ANSI STANDARDS BY DORMA TRAINED PERSONNEL Breakout “ 2" 4” ” 11” Incoming 115VAC...
- Page 15 90 opening Mount arm in fully-open position. Open door and attach arm to slide track. Power down door & allow to shut. Install slide channel endcaps. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev.
- Page 16 DORMA AUTOMATICS Phone: 877-367-6211 Motor: 4A slow blow Line: 2A fast acting THIS OPERATOR CONTROLLER MUST BE ADJUSTED TO MEET ANSI STANDARDS BY DORMA TRAINED PERSONNEL Breakout ” ” 4” Incoming 120VAC (opposite pivot) Note: For installation with 0” reveals.
- Page 17 Low Energy Automatic Swing Door Basic Set-Up • Turn selector knob to “BCK STP”. The purpose of the initial set-up is to bring the ED700 to a point where it can open the door. Preparation for Initial set-up BasicRequirements •...
- Page 18 In some situations you may have to assist The door is now ready for normal the door during learn cycle during the initial operation. opening. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 6/08 Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev.
- Page 19 Automatic Swing Door Customized Set-Up Open Speed to Back-Check (example) The purpose of the customized set-up is to change the default ED700 settings. This can be done during or • Turn selector knob to “OPN SPD”. after a completed learn cycle.
- Page 20 +24V +24V Safety Safety BEAM BEAM Beam Beam Mode Switch H.O. H.O. Fire FIRE sensor DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 Lake Bluff, IL 60044 Fax: 877-423-7999 6/08 DL3038-010 Rev. B E-mail: automatics@dorma-usa.com Subject to change without notice...
- Page 21 Mode Switch door. Knowing that, the operators will H.O. H.O. extend the Hold-Open time to ensure that both doors remain in synchronization. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 6/08 Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B E-mail: automatics@dorma-usa.com...
- Page 22 •Make sure that all electrical wiring is connected correctly and away from moving parts. Phillips Flat Head Machine Screw 1/4”-20 UNC, 1/2” long Place and fasten removable cover (Phillips screwdriver required). DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 6/08...
- Page 23 The closing speed is limited. The user may open the door manually. Restart after power failure When the power is turned ON, the ED700 goes back to normal operation. 2. Care and Maintenance Prior to first use and periodically thereafter, but at least once a year, the system must be checked and maintained by a qualified, knowledgeable technician.
- Page 24 Traffic Patterns. O ser e traffic patterns. Plan routing so people enter and e it in a straight approach directly onto the center of the door opening. DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 6/08...
- Page 25 ESD protection ±5 KV, human body model Overvoltage protection ±5 Vdc continuous, with respect to GND Indicators 1 LED/Sensor, 3-Digit Display DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211 6/08 Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B E-mail: automatics@dorma-usa.com...

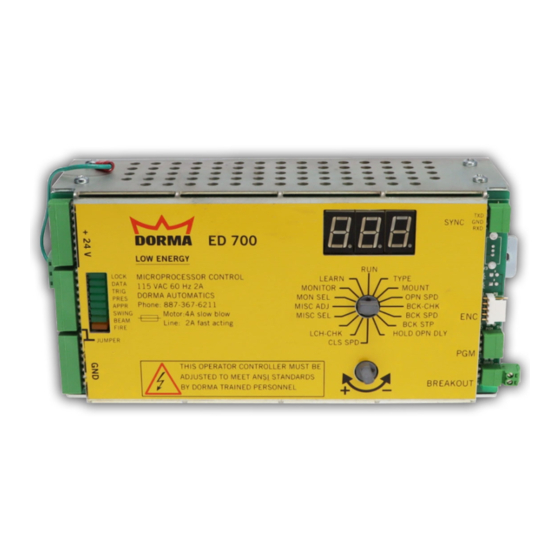

- Page 26 ED700 DORMA Low Energy Automatic Swing Door ED700 Controller Code Information DISPLAY Low Energy operation, switch on side of control must also be turned to LE for Low Energy function. Adjusted according to ANSI 156.19. Low Energy Power Assist Power Assist operator will assist in manual operation but will not open the door.
