Genelec Smart IP Manager Operating Manual page 43

Smart IP Manager - System Operating Manual
If the Default zone is the only zone you want to have, the zone addition process is now
complete, you can move to using the Controller app controls for the Default zone.

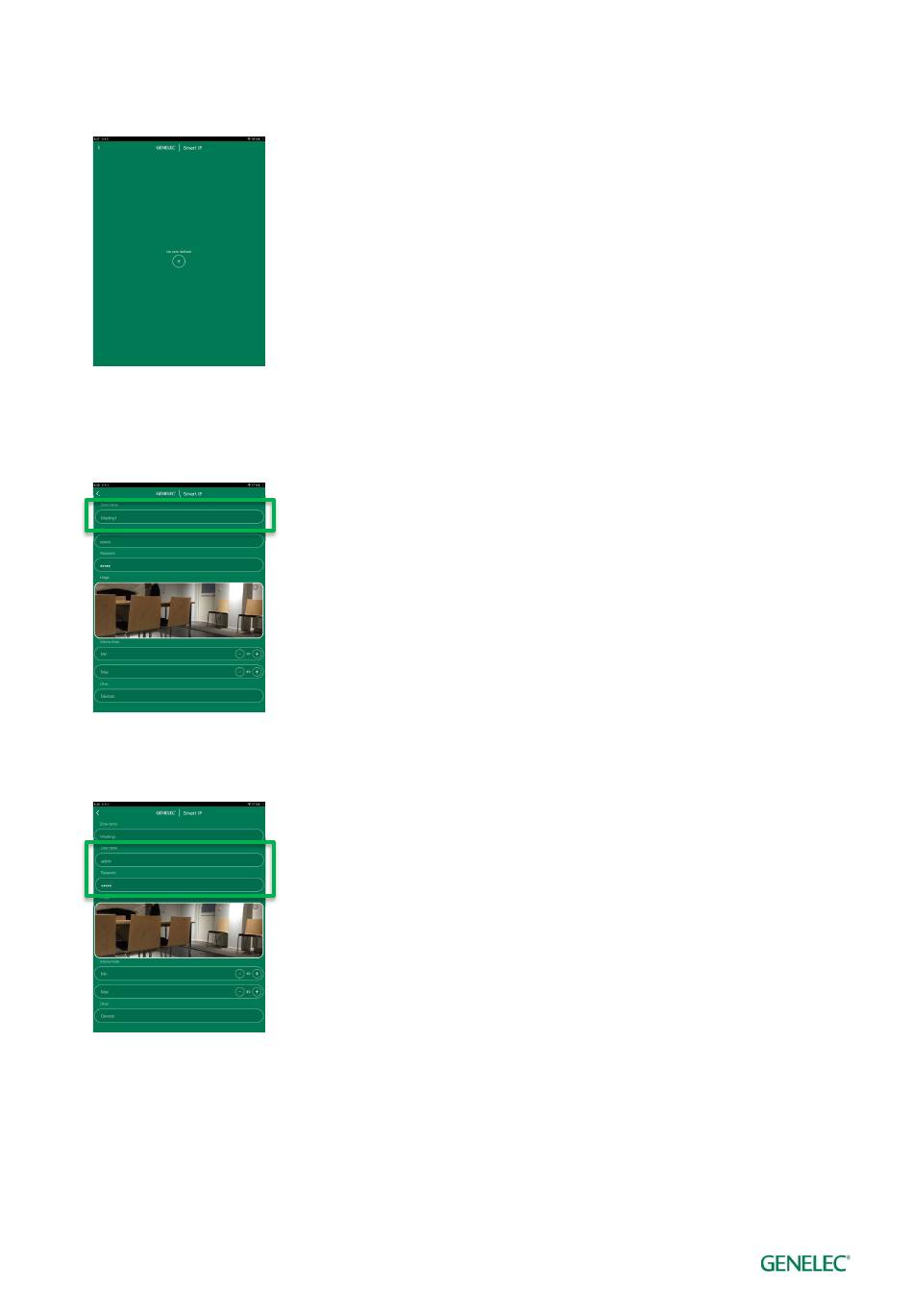

Figure 41. The main page without any zones. Clic + icon to create a zone.
3. Type in the zone name, for example 'Meeting1' (Name is case sensitive).
Figure 42. Zone name field.
4. Give the username and password needed to access this zone.
Figure 43. Zone credentials.
5. Add an optional image of the zone. Adding an image makes it easier to identify the zone by
just seeing the image.
page 43 of 48
