Input Tab - Genelec Smart IP Manager Operating Manual

Smart IP Manager - System Operating Manual

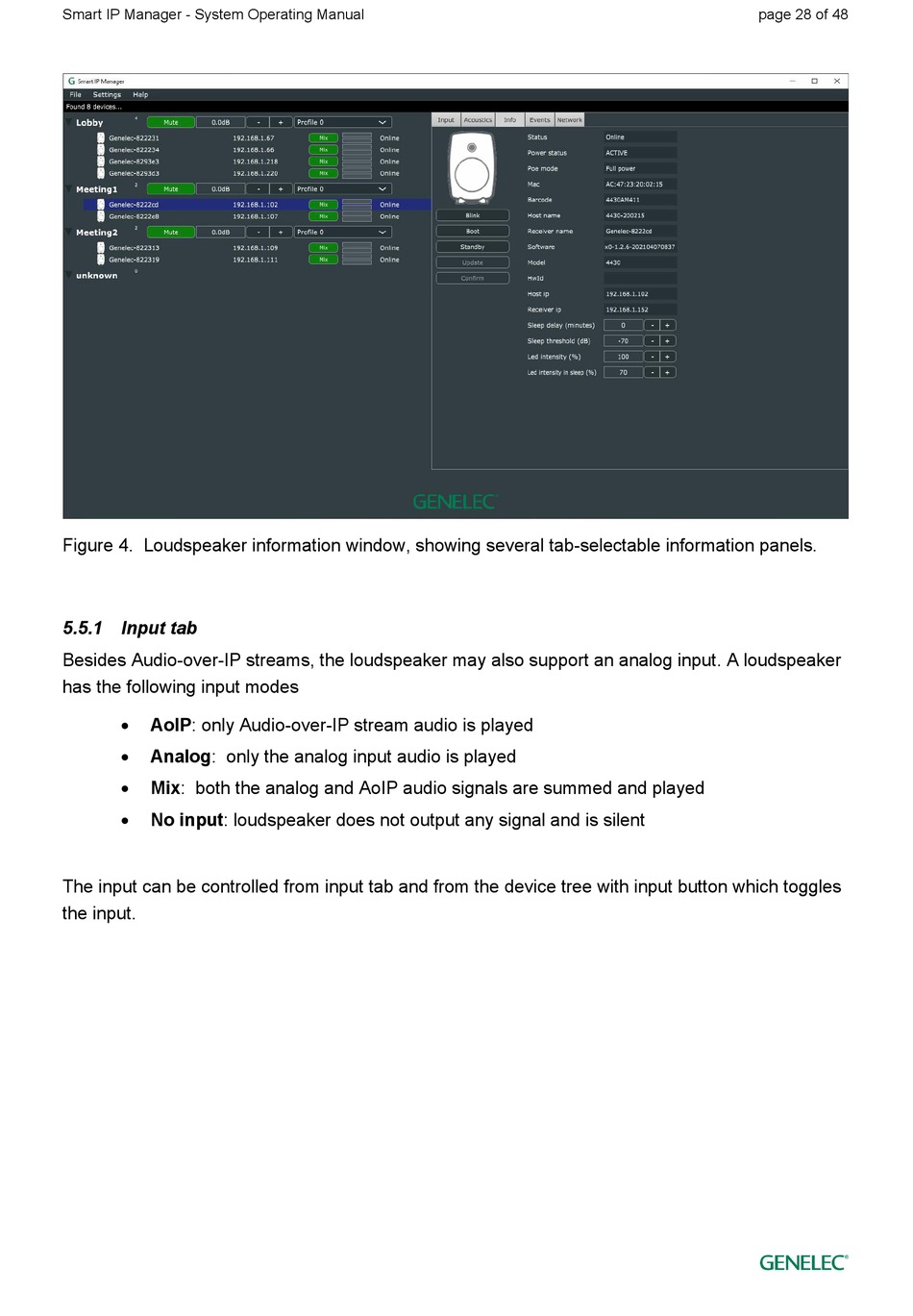

Figure 4. Loudspeaker information window, showing several tab-selectable information panels.

5.5.1 Input tab

Besides Audio-over-IP streams, the loudspeaker may also support an analog input. A loudspeaker
has the following input modes

AoIP: only Audio-over-IP stream audio is played

Analog: only the analog input audio is played

Mix: both the analog and AoIP audio signals are summed and played

No input: loudspeaker does not output any signal and is silent
The input can be controlled from input tab and from the device tree with input button which toggles
the input.
page 28 of 48
