- Page 1 DSP monitoring SyStemS 8130A 8240A 8250A 7260A Se7261A 7270A 7271A gLm™ gLm.Se™...
- Page 2 • The Genelec 8200 and 7200 loudspeaker systems have utilized DSP to allow for all standard AES/EBU formats of digital audio. • The 8200/7200 Series will accept sampling rates ranging from 32kHz to 192kHz. • The 8200 Series will also accept traditional analog signals and perform with all the features and benefits of Genelec 8000 Series products. • AutoCal is an automated loudspeaker system alignment algorithm within GLM™ and GLM.SE™. A factory-calibrated Genelec measurement microphone is included.
- Page 3 DSP monitoring Systems Since the very beginning in 1978, Genelec Oy has provided tools in our products to assist in improving the acoustic integration of the monitoring loudspeaker into real-world working environments. These tools are now an essential part of Genelec’s pioneering active loudspeaker technology. Genelec has always measured, analyzed and calibrated its monitoring systems in its own testing chambers as well as customers’ working environments. It is well known that any listening room imparts its own signature on the response of any monitoring loudspeaker system. A monitor is only as good as its acoustic integration into the room. The acoustic performance advances made in developing the ™ ™ 8000 MDE Series and 7000 LSE Series products have provided significant performance gains, both in the test chamber and in customer control rooms. These solid acoustic foundations have been essential in taking the next step into the digital world with the 8200, 7200, and GLM.SE ™ monitoring systems. Harnessing DSP power in an attempt to improve the fundamental performance of a compromised loudspeaker design to an acceptable level is hardly a worthwhile effort. A solid acoustic design complemented with enhancing DSP allows further...
- Page 4 AutoCal™ – Fast, easy and consistent acoustic self-calibration AutoCal™ provides the industry’s first integrated process for complete automated measurement, analysis, and adjustment of every monitoring loudspeaker in the control network to correctly align and integrate each monitoring loudspeaker into the mixing environment. • Uses factory-calibrated Genelec acoustic measurement microphone (included) • AutoCal automatically creates a compensation file for host soundcard • AutoCal aligns Level and compensates Distance differences • Acoustic Response Editor provides accurate graphical display of the...
- Page 6 8240A 8250A 7260A 7270A 7271A...

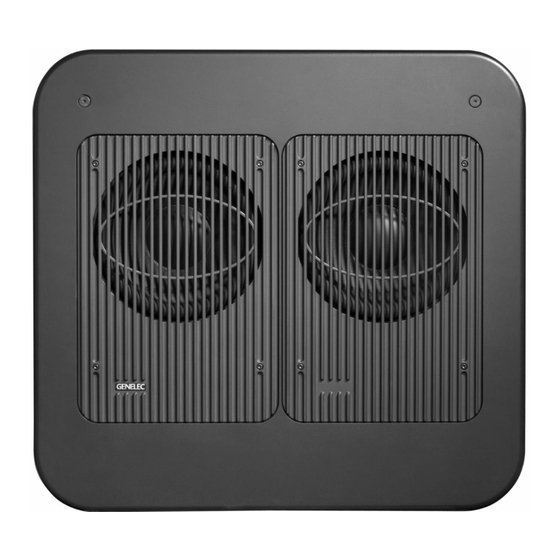

- Page 7 • Enables unlimited custom User Setups with all settings and functions stored in GLM™ setup files, or one setup stored directly into each To complement the 8200 DSP two-way systems, Genelec has developed loudspeaker for Stand Alone -use three robust DSP subwoofers. Built upon the proven LSE™ (Laminar Spiral • Step-by-step Wizard guides user through complete cabling connections Enclosure™) technology, the 7260A, 7270A and 7271A deliver articulate and loudspeaker labeling •...
- Page 9 • GLM.SE™ provides interface to AutoCal™ automated acoustic self- calibration algorithm 8130A genelec gLm.Se systems support three modes of operation: • Stand Alone: This mode models Genelec 8000/7000 products with standard set of room response controls and sensitivity adjustments Se7261A found on the connector panel DIP switches. • GLM.SE™ Computer Assisted: Once the loudspeaker control network is connected and running, all DIP switches on the SE7261A connector panel are ignored. All acoustic parameters of the loudspeakers set through AutoCal™ or User Adjustment are controlled by GLM.SE™.
- Page 10 HiP-Studiot, Helsinki, Finland...
- Page 11 Stereo and Surround Sound environments Creating a balanced surround sound monitoring environment calls for matched loudspeakers and subwoofers. The Genelec DSP Systems offer several different alternatives to suit your space and SPL requirements. Here are some examples of balanced loudspeaker/ subwoofer combinations for small and medium mixing environments.
- Page 12 278 mm (10 15/16“) 363 mm (14 5/16“) 490 mm (19 5/16“) 490 mm (19 5/16“) Depth 365 mm (14 3/8“) 452 mm (17 13/16“) Height with Iso-Pod™ Weight 9.4 kg (20.8 lb) 14.6 kg (32 lb) 27 kg (59 lb) 51 kg (112 lb) 82 kg (180 lb) * The notch and shelving filter adjustments and AutoCal™ system calibration features are part of the Genelec Loudspeaker Manager (GLM ) and Genelec Loudspeaker Manager Small Environment (GLM.SE ) softwares. AD9200A Analog to Digital Converter number of channels Analog input type Balanced DB25 Tascam pin order Digital audio format AES/EBU (AES3) Word length 24 bits Sample rate 192 kHz...
- Page 13 Se™ DSP monitoring System gLm™ genelec Loudspeaker manager Software 8130A Se7261A Genelec Loudspeaker Manager™ software manages connectivity to all loudspeakers on the network – up to 30 – from cabling and labeling to complete loudspeaker definitions. Standard 130 mm (5") 254 mm (10”) 19 mm (3/4") metal dome system configurations are provided as well as provision for customized User Setups. All functions and settings are 58 Hz - 20 kHz (± 2 dB) 19 Hz - 100 Hz (± 3 dB) stored in these Setups or you can store this data in each ≥ 108 dB SPL loudspeaker should you wish to disconnect the network and operate without GLM™ to ensure security of your monitoring (from 100 Hz to 3 kHz) (from 30 Hz to 85 Hz) system. ≥ 100 dB SPL ≥ 108 dB SPL 3 kHz ≤ 10 dB ≤ 15 dB < 2 % < 0.5 % operating system supported Windows XP, Mac OS X number of loudspeakers supported...
- Page 14 Accessories This page shows some samples of the wide Genelec Accessories Wall bracket - black and white Ceiling mount 8000-402-B and 8000-402-W 8000-415B range. Versatile mounting options and carrying bags for the 8200 Series For all 8000 series models. For all 8000 series models. Length 905-1505 mm. are comprehensively listed on the web pages of the corresponding products and the Accessories Catalogue for Two-Way Monitors, which can be downloaded at www.genelec.com Flush mount kits for 8240A and 8250A...
- Page 15 Detailed Datasheets of all Genelec models, Quick Setup Guides and other useful information can be downloaded at www.genelec.com international enquiries: Genelec Oy, Olvitie 5, FIN-74100 Iisalmi, Finland T +358 17 83 881 F +358 17 81 2267 Email: genelec@genelec.com in the USA: Genelec, Inc., 7 Tech Circle, Natick, MA 01760, USA T +1 508 652 0900 F +1 508 652 0909 Email: genelec.usa@genelec.com in Sweden: Genelec Sverige, Box 5521, S-141 05 Huddinge, Sweden T +46 8 449 5220 F +46 8 708 7071 Email: info@genelec.com in China: Beijing Genelec Audio Co. Ltd. Jianwai SOHO, Tower 12, Room 2306 39 East 3rd Ring Road, Chaoyang District Beijing 100022, China T: +86 10 5869 7915 F: +86 10 5869 7914...
- Page 16 WWW.geneLeC.Com Genelec Document BBAGE043a. Copyright Genelec Oy 10.2007. All data subject to change.
