Genelec Smart IP Manager Operating Manual page 22

Smart IP Manager - System Operating Manual
Meeting Room1 zone

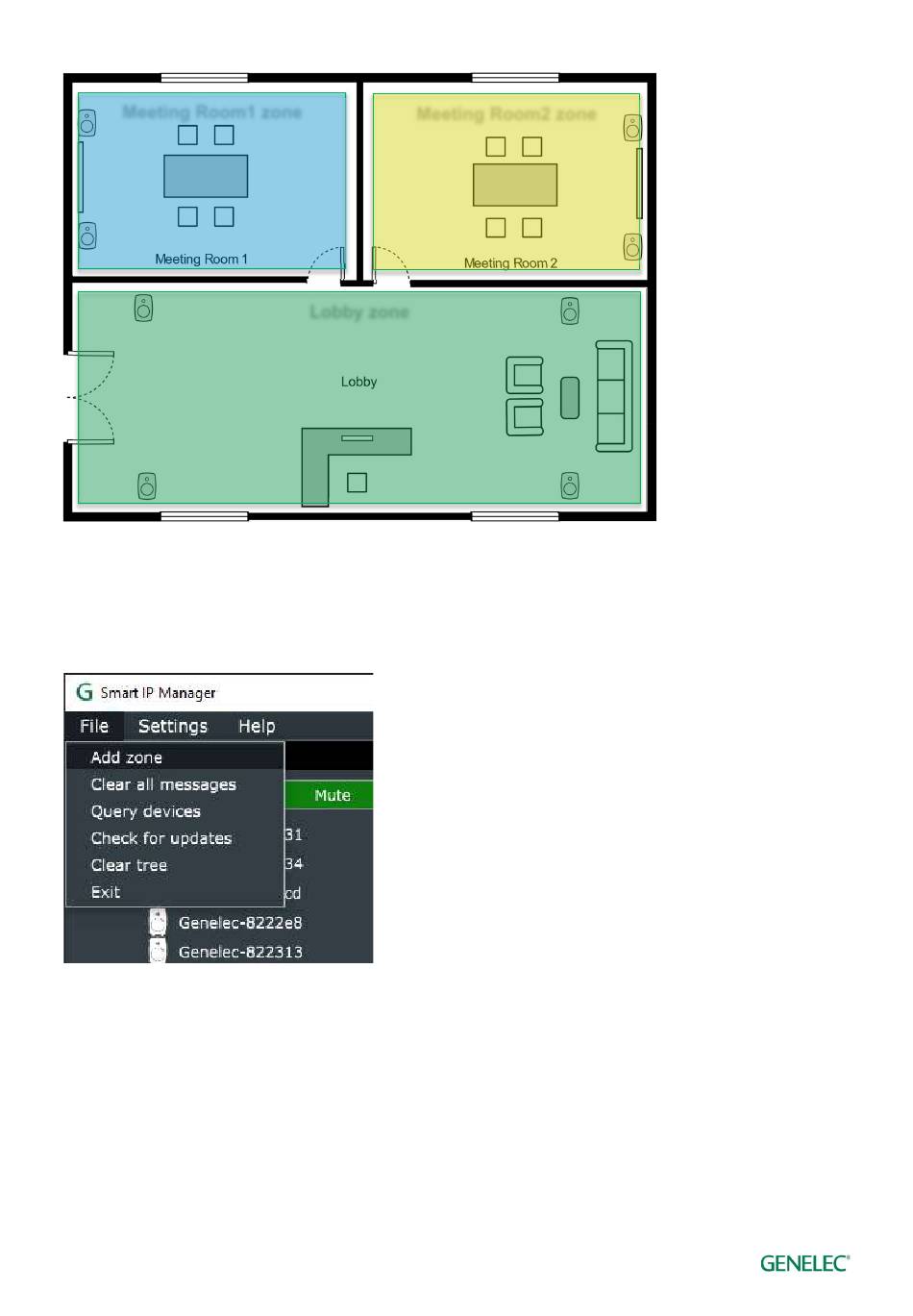

Figure 15. Three Zone example.
1. To create a zone, click 'File : Add zone' menu item in the Smart IP Manager. The Create
zone window opens.
Figure 16. Add a new zone.
2. Give name "Meeting1" for the zone. Id(port) is automatically created by Smart IP Manager.
If the port number is reserved or blocked for any reason, the port number used can be
changed. Click the 'Create' button to create a zone. Note: If loudspeakers are not assigned
to a zone and Smart IP Manager closed the zone and the zone will disappear from the
Smart IP Manager window.
Meeting Room2 zone
Lobby zone
page 22 of 48
