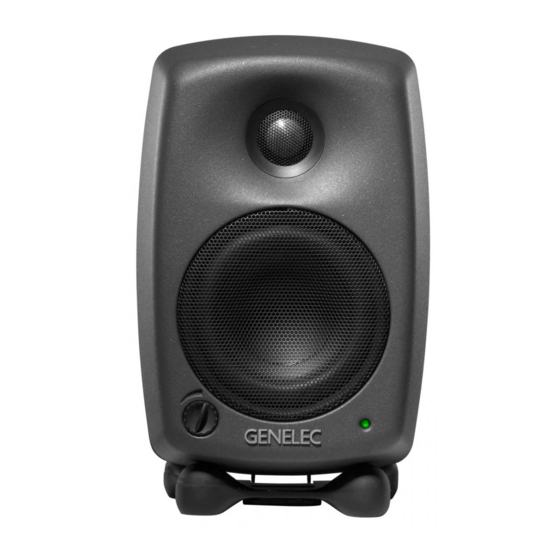

Genelec 8020A Specification

6010A and 8000 Series
Drivers
Bass 76 mm (3")
Treble 19 mm (3/4") metal dome
Both drivers are magnetically shielded
≤ 73 Hz
Lower cut-off frequency, –3 dB
≥ 21 kHz
Upper cut-off frequency, –3 dB
Free field frequency response of system 74 Hz – 18 kHz (± 2.5 dB)
≥ 93 dB SPL
Maximum short term sine wave acoustic output @
1 m on axis in half space, averaged from
100 Hz to 3 kHz
≤ 5 dB
Self generated noise level in free field @ 1 m on
axis (A-weighted)
Harmonic distortion (at given SPL@ 1 m on axis) @ 80 dB
Frequency: 70...400 Hz < 3 %
> 400 Hz
Crossover
Crossover frequency 3 kHz
Treble Tilt control (2 dB steps) n/a
Desktop Low Frequency control –4 dB @ 200 Hz
Bass Roll-Off control n/a
(2 dB steps, 8020A & 8030A – 6 dB step)
Bass Tilt control (2 dB steps) 0 to –6 dB @ 100 Hz
Bass amplifier output power 12 W (8 Ohm load)
Treble amplifier output power 12 W (8 Ohm load)
(Long term output power is limited by driver
protection circuitry)
Signal to Noise ratio, referred to full output
Bass ≥ 95 dB
Treble ≥ 95 dB
Power consumption
Idle 5 VA
Full output 35 VA
Dimensions
Height 181 mm (7
Width 121 mm (4
Depth 114 mm (4
Height with Iso-Pod™ 195 mm (7
Weight 1.4 kg (3.1 lb)
6010A 8020A
105 mm (4") 130 mm (5")
19 mm (3/4") metal dome 19 mm (3/4") metal dome
≤ 65 Hz ≤ 55 Hz
≥ 21 kHz ≥ 21 kHz
66 Hz – 20 kHz (± 2.5 dB) 58 Hz – 20 kHz (± 2 dB)
≥ 95 dB SPL ≥ 100 dB SPL
≤ 10 dB ≤ 10 dB
@ 85 dB @ 85 dB
50...100 Hz < 3 % 50...100 Hz < 2 %
< 0.5 % > 100 Hz < 0.5 % > 100 Hz
3 kHz 3 kHz
0 to –2 dB @ 15 kHz 0 to –2 dB @ 15 kHz
n/a n/a
–6 dB @ 85 Hz –6 dB @ 85 Hz
0 to –6 dB @ 100 Hz 0 to –6 dB @ 100 Hz
20 W (8 Ohm load) 40 W (8 Ohm load)
20 W (8 Ohm load) 40 W (8 Ohm load)
≥ 95 dB ≥ 100 dB
≥ 95 dB ≥ 100 dB
5 VA 10 VA
50 VA 80 VA
/ ") 226 mm (8 / ") 285 mm (11
1 7
8 8
/ ") 151 mm (6") 189 mm (7
3
4
/ ") 142 mm (5 / ") 178 mm ( 7
1 5
2 8
/ ") 242 mm (9 / ") 299 mm (11
11 1
16 2
3.7 kg (8.1 lb) 5.6 kg (12.3 lb)
8030A 8040A
165 mm (6.5") 205 mm (8")
19 mm (3/4") metal dome 25 mm (1") metal dome
≤ 45 Hz ≤ 35 Hz
≥ 21 kHz ≥ 21 kHz
48 Hz – 20 kHz (± 2 dB) 38 Hz – 20 kHz (± 2 dB)
≥ 105 dB SPL ≥ 110 dB SPL
≤ 10 dB ≤ 10 dB
@ 90 dB @ 90 dB
50...100 Hz < 2 % 50...100 Hz < 2 %
< 0.5 % > 100 Hz < 0.5 % > 100 Hz
3 kHz 1.8 kHz
+2 to –4 dB @ 15 kHz & Mute +2 to –4 dB @ 15 kHz & Mute
–4 dB @ 160 Hz –4 dB @ 160 Hz
0 to –6 dB @ 45 Hz 0 to –6 dB @ 35 Hz
0 to –6 dB @ 100 Hz & Mute 0 to –6 dB @ 100 Hz & Mute
90 W (8 Ohm load) 150 W (6 Ohm load)
90 W (8 Ohm load) 120 W (8 Ohm load)
≥ 100 dB ≥ 100 dB
≥ 100 dB ≥ 100 dB
10 VA 10 VA
110 VA 170 VA
/ ") 350 mm (13 / ") 433 mm (17
1 13
4 16
/ ") 237 mm (9 / ") 286 mm (11
7 3
16 8
/ ") 223 mm (8 / ") 278 mm (10
1 13
16 16
/ ") 365 mm (14 / ") 452 mm (17
13 3
16 8
8.6 kg (18.9 lb) 12.7 kg (28 lb)
Monitoring Line Specifications
8050A
< 0.5 %
/ ")
1
16
/ ")
1
4
/ ") Detailed Data Sheets of all Genelec models,
15
16
/ ")
13
16 Quick Setup Guides and lots of other useful
information can be downloaded at
www.genelec.com
