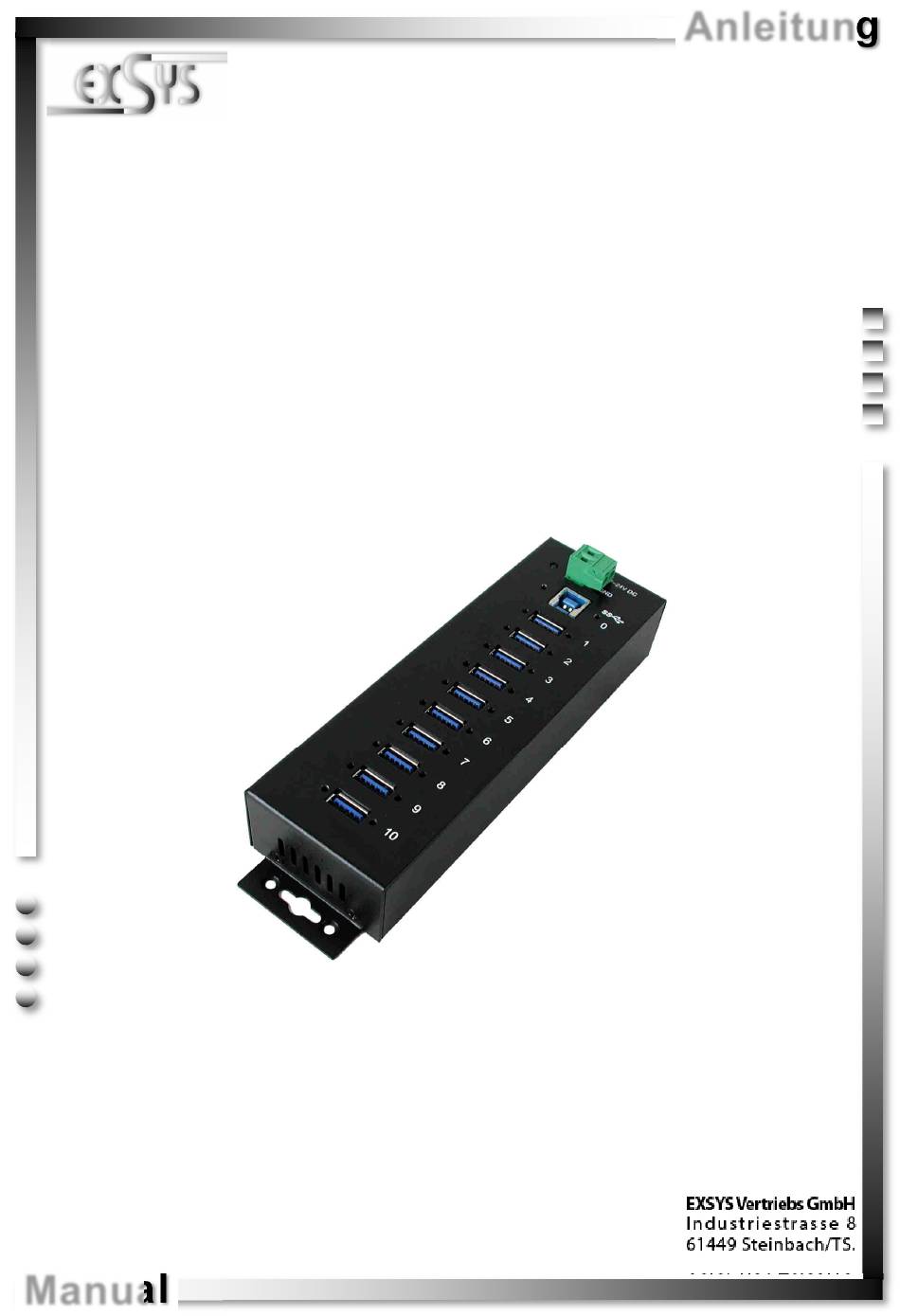

- Page 1 Anleitung EX-1110HMVS 10 Port USB 3.1 (Gen1) Metall HUB mit 1,5A Strom pro Port und 15KV ESD Überspannungsschutz 10 Port USB 3.1 (Gen1) Metal HUB with 1,5A power for each port and 15KV ESD Surge Protection Vers. 1.0 / 26.09.18...
-
Page 2: Table Of Contents
3.1 Layout ····································································································· 11 3.2 Connections ························································································ 10-11 3.3 Jumper Settings ························································································ 11 Hardware Installation ··········································································· 12 Driver Installation ················································································ 13 Cleaning ··························································································· 13 Technical Information ·········································································· 14 Technical Drawing ·············································································· 14 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1110HMVS ist ein USB 3.1 (Gen1) Metall HUB für bis zu 10 Endgeräte. Der Hub ist mit 10 USB A-Buchsen für Endgeräte und 1 USB B-Buchse für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Jeder Anschluss an der EX-1110HMVS ist zusätzlich verschraubbar. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V USB 3.1 (Gen1) A-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + Achtung! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
3.3 Jumper Einstellungen Die EX-1110HMVS wird mit der Einstellung Self-Power ausgeliefert. Sie haben aber die Möglichkeit die EX-1110HMVS mit Bus-Power zu versorgen. Dafür müssen Sie zu erst das Gehäuse mit den zwei Schrauben auf den Seiten öffnen. Nun müssen Sie den Jumper JP1 von DIS (Disable) auf ENA (Enable) setzen. -
Page 6: Hardware Installation
PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der EX- 1110HMVS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie die EX-1110HMVS an die Wand oder mit dem mitgelieferten DIN- Rail Kit auf einer Tragschiene. DIN-Rail Clip... -
Page 7: Treiber Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 197,70 x 55,50 x 31,00 mm Gewicht: 700g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description

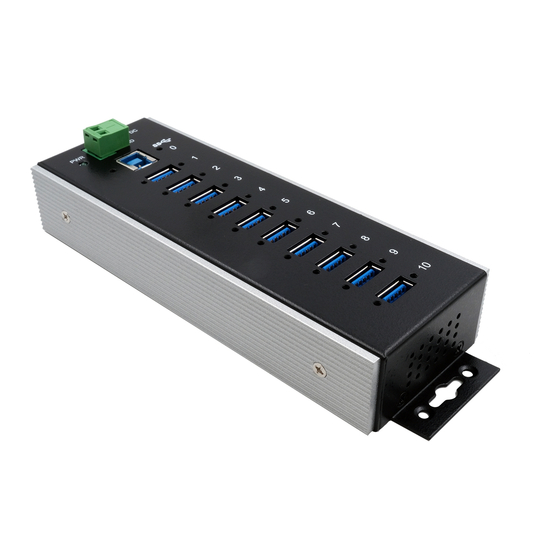

English 1. Description The EX-1110HMVS is a plug & play high-speed USB 3.1 (Gen1) metal hub for 10 USB devices. The EX-1110HMVS provides 10 USB A-Ports for devices and 1 USB B-Port for PC. It supports all USB connections from 1.1 to 3.1. All ports can fix with screw lock. -
Page 10: Layout, Connections & Jumper Settings
Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V USB 3.1 (Gen1) A-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Layout, Connections & Jumper Settings
The EX-1110HMVS comes with the setting Self-Power. You also have the possibility the EX-1110HMVS to supply Bus-Power. For this you open the case with the two screws on both sides. Then you must set the jumper JP1 from DIS (Disable) to ENA (Enable). -
Page 12: Hardware Installation
Because there are large differences between PC’s, we can give you only a general in- stallation guide for the EX-1110HMVS. Please refer your computer’s reference manual whenever in doubt. 1. Install the EX-1110HMVS to the wall or to a DIN-Rail if required. DIN-Rail Clip Installation to... -
Page 13: Driver Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 197,70 x 55,50 x 31,00 mm Weight: 700g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
