Anleitung

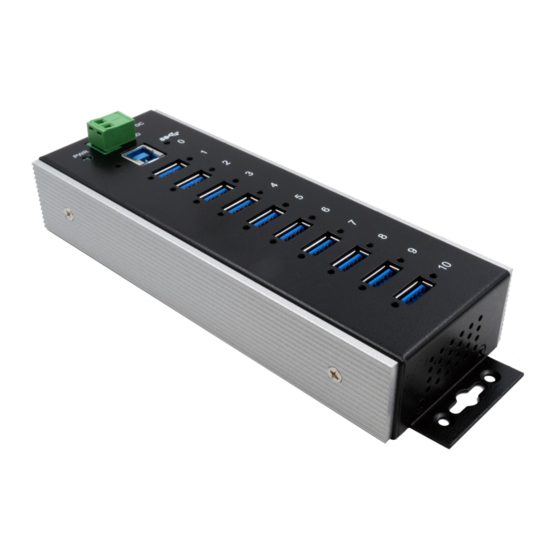

EX-1110HMVS-WT
10-Port USB 3.2 Gen 1 Metall HUB mit
1,5A Strom pro USB Port und
15KV ESD Überspannungsschutz für Trägerschiene
und erweitertem Temperaturbereich von -40°C bis 85°C
10-Port USB 3.2 Gen 1 Metal HUB with
1,5A power for each USB port and
15KV ESD Surge Protection for DIN-Rail
and extended Temperature Range from -40°F to 185°F
Vers. 1.1 / 31.03.22
Manual
Advertisement
Table of Contents
Related Manuals for Exsys EX-1110HMVS-WT
Summary of Contents for Exsys EX-1110HMVS-WT

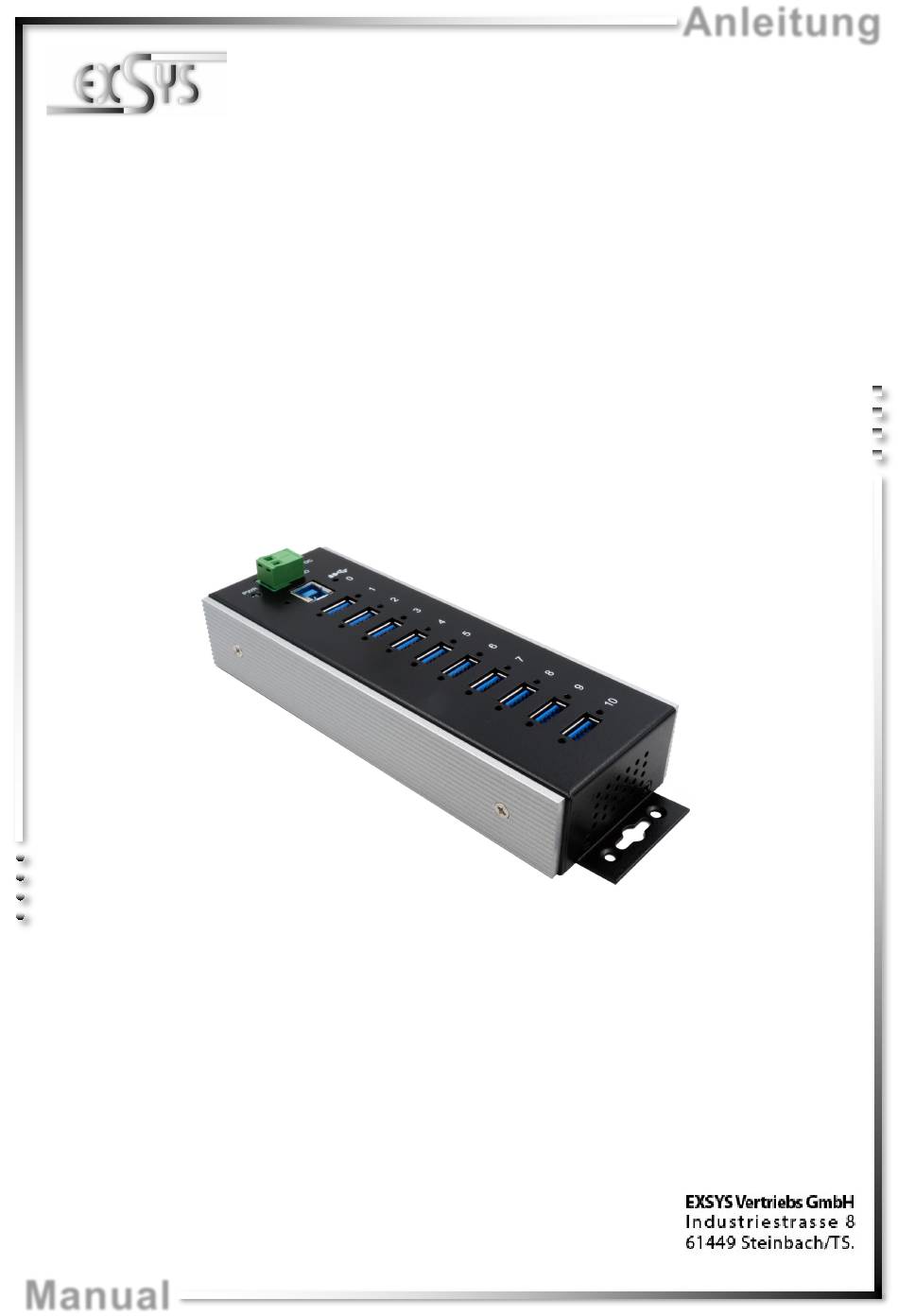

- Page 1 Anleitung EX-1110HMVS-WT 10-Port USB 3.2 Gen 1 Metall HUB mit 1,5A Strom pro USB Port und 15KV ESD Überspannungsschutz für Trägerschiene und erweitertem Temperaturbereich von -40°C bis 85°C 10-Port USB 3.2 Gen 1 Metal HUB with 1,5A power for each USB port and 15KV ESD Surge Protection for DIN-Rail and extended Temperature Range from -40°F to 185°F...
-
Page 2: Table Of Contents
Layout, Connections & Jumper Settings ··························································· 10-11 Layout ·······················································································································10 Connections ·········································································································· 10-11 Jumper Settings ··········································································································11 Hardware Installation ························································································· 12 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1110HMVS-WT ist ein USB 3.2 Gen 1 Metall HUB für bis zu zehn Endgeräte. Der Hub ist mit 10 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Ports von 1.1 bis 3.2. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V USB 3.2 Gen 1 A-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + Achtung! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
Der EX-1110HMVS-WT wird mit der Einstellung USB-Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1110HMVS-WT auf der Datenleitung zum PC sprich die USB B-Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. -
Page 6: Hardware Installation
Ihnen nur eine generelle Anleitung zum Einbau des EX-1110HMVS-WT geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-1110HMVS-WT an die Wand oder mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene. -
Page 7: Treiber Installation
EX-1110HMVS-WT Deutsch 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1110HMVS-WT automatisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgenden Eintrag sehen: Ist dieser oder ein ähnlicher Eintrag vorhanden, ist der USB Hub richtig installiert. -
Page 8: Technische Daten
-40° bis 85° Celsius Lagertemperatur: -40° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 198,00 x 62,08 x 39,98 mm Gewicht: 715g 8. Technische Zeichnung © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description
1. Description The EX-1110HMVS-WT is a USB 3.2 Gen 1 metal HUB for up to ten end devices. The hub is equipped with 10 ports for end devices and 1 port for connection to PC. It supports all USB ports from 1.1 to 3.2 and each USB port on the EX-1110HMVS-WT is additionally screwable. -
Page 10: Layout, Connections & Jumper Settings
Hardware!!! GND (Ground) +7V - 24V USB 3.2 Gen 1 A-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Jumper Settings
VBus or in wrong direction. 3.3 Jumper Settings The EX-1110HMVS-WT will be delivered with the setting USB-Bus-Power. But you have the possibility to cut the power at the data line. For this you open the case with the four screws on both sides. -
Page 12: Hardware Installation
Because there are large differences between PC’s, we can give you only a general installation guide for the EX-1110HMVS-WT. Please refer your computer’s reference manual whenever in doubt. 1. Install the EX-1110HMVS-WT to the wall or to a DIN-Rail if required. Installation to DIN-Rail... -
Page 13: Driver Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
-40° to 185°Fahrenheit Storage Temperature: -40° to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 198,00 x 62,08 x 39,98 mm Weight: 715g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
