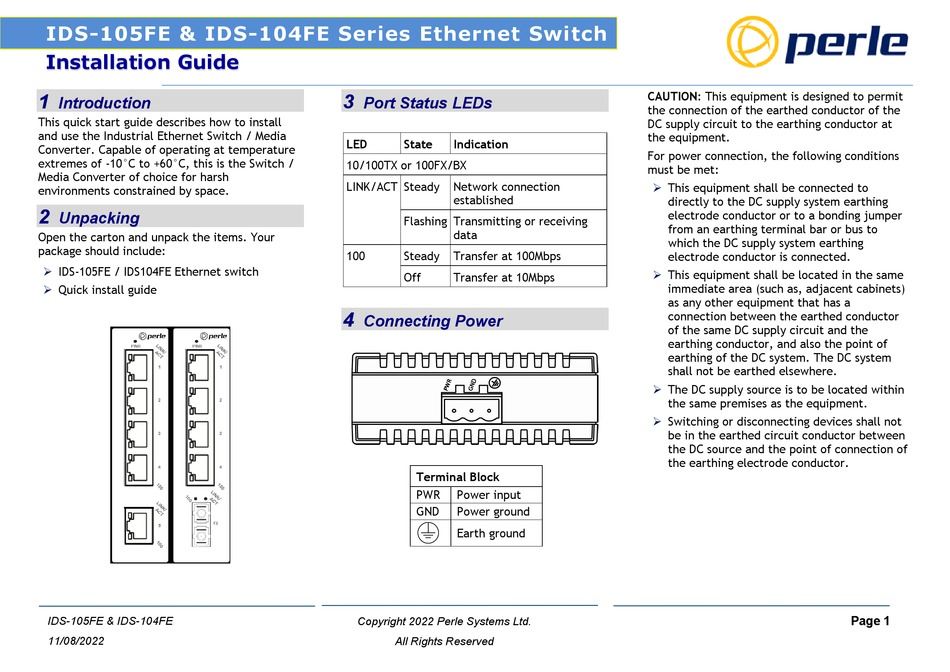

IDS-105FE & IDS-104FE Series Ethernet Switch
IDS-105FE & IDS-104FE Series Ethernet Switch
Installation Guide
1
Introduction
This quick start guide describes how to install
and use the Industrial Ethernet Switch / Media
Converter. Capable of operating at temperature
extremes of -10°C to +60°C, this is the Switch /
Media Converter of choice for harsh
environments constrained by space.
2
Unpacking
Open the carton and unpack the items. Your
package should include:

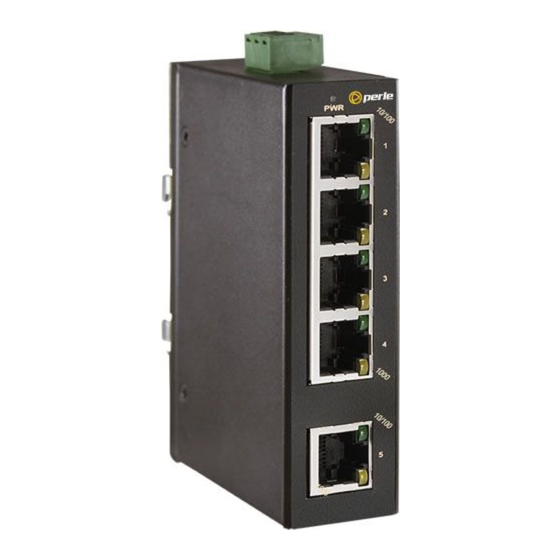

IDS-105FE / IDS104FE Ethernet switch

Quick install guide

IDS-105FE & IDS-104FE
11/08/2022
3
Port Status LEDs
LED State Indication
10/100TX or 100FX/BX
LINK/ACT Steady Network connection
established
Flashing Transmitting or receiving
data
100 Steady Transfer at 100Mbps
Off Transfer at 10Mbps
4
Connecting Power
Terminal Block
PWR Power input
GND Power ground
Earth ground
Copyright 2022 Perle Systems Ltd.
All Rights Reserved
CAUTION: This equipment is designed to permit
the connection of the earthed conductor of the
DC supply circuit to the earthing conductor at
the equipment.
For power connection, the following conditions
must be met:
This equipment shall be connected to

directly to the DC supply system earthing
electrode conductor or to a bonding jumper
from an earthing terminal bar or bus to
which the DC supply system earthing
electrode conductor is connected.
This equipment shall be located in the same

immediate area (such as, adjacent cabinets)
as any other equipment that has a
connection between the earthed conductor
of the same DC supply circuit and the
earthing conductor, and also the point of
earthing of the DC system. The DC system
shall not be earthed elsewhere.
The DC supply source is to be located within

the same premises as the equipment.
Switching or disconnecting devices shall not

be in the earthed circuit conductor between
the DC source and the point of connection of
the earthing electrode conductor.
