Page 1: Installation Guide

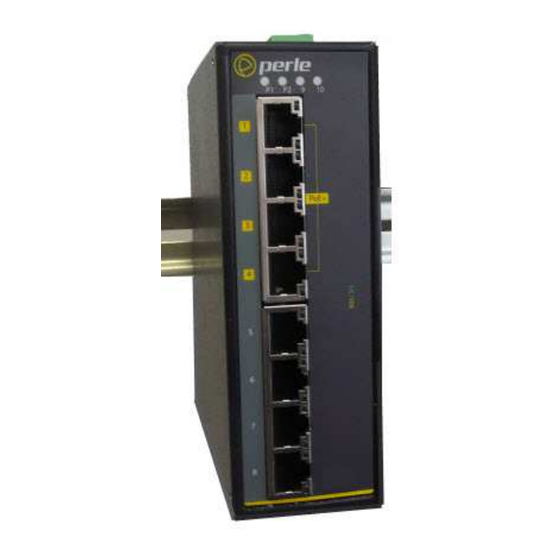

Perle IDS-108FPP (XT) Unmanaged 10/100 PoE/PoE+ Ethernet Switches with Fiber Ports Installation Guide P/N 5500341-10 (Rev I) - Page 2 Powered Devices must comply with the IEEE 802.3af or the 802at-2009 standard for PoE or PoE+ devices. The IDS-108FPP is available in various copper and fiber configurations (see table below). The fiber ports can be either single mode (SM) or multimode (MM) depending on the model selected and can operate over different wavelengths and distances.
- Page 3 • Industrial temperature models • Din-rail or wall/panel mounting Note – In this guide the various models will be referred to as the IDS-108FPP Getting to know your IDS-108FPP Switch Package Contents: • IDS-108FPP • DIN-rail mounting clip (pre-installed on the unit) •...
- Page 4 Front View of IDS-108FPP (8 port RJ-45) IDS-108FPP Installation Guide...
-
Page 5: Fiber Ports
Front View of IDS-108FPP ( with one or two fiber ports) IDS-108FPP Installation Guide... - Page 6 Bottom view of the IDS-108FPP (with two ST fiber ports installed) Top view of the IDS-108FPP The IDS-108FPP switch has two power inputs that can be connected simultaneously. If one power source fails, the other source acts as a backup, and automatically powers the switch.
-
Page 7: Ethernet Port Status
Port Link / Speed (Green and Yellow LEDs) Port Link (Green LED) • On: Link up • Flashing: Link up and Ethernet activity detected Port Speed (Yellow LED) • On: communicating at 100 Mbps • Off: communicating at 10 Mbps IDS-108FPP Installation Guide... - Page 8 Views for the IDS-108FPP IDS-108FPP Installation Guide...
- Page 9 IDS-108FPP Installation Guide...
- Page 10 1. The DIN-rail clip will be fixed to the back panel of the IDS-108FPP switch when you receive the product. 2. Position the IDS-108FPP such that the top of the DIN rail fits into the slot on the top of the DIN-rail clip, just below the DIN-rail hook and behind the spring.
- Page 11 5. Fix the screws to the wall and then insert the four screw heads through the large parts of the keyhole shaped screw openings. 6. Pull the IDS down to lock the IDS-108FPP to the wall mount. 7. Tighten the four screws securely to the wall.
- Page 12 Power sources must be off prior to beginning the power connection steps. Ensure that the voltage and current ratings of the intended power source are appropriate for the IDS-108FPP as indicated on the product label. Ensure that the installation and electrical wiring of the...
-
Page 13: Hazardous Location Warnings
Transient protection shall be provided that is set at a level not exceeding 140% of the peak rated voltage value at the supply terminals to the equipment. Connecting the IDS-108FPP to ground If your installation requires additional grounding, follow this procedure. -
Page 14: Connecting Poe/Poe+ Devices
• For PoE devices up to 15.4 Watts per port. • For PoE+ devices up to 30 Watts per port. Connect the copper cables from each TP port (RJ-45) on the IDS-108FPP switch to compliant Powered Devices (PDs). See below for RJ-45 pinouts on ports 1 through 4. - Page 15 • Category 5 UTP or STP, 5e cables • 24-22 AWG • Straight through or Ethernet crossover cable Connect the copper cables from each TP port (RJ-45) on the IDS-108FPP switch to Ethernet-enabled devices. See below for 8 pin RJ-45 pinouts. Remaining pins not used...
-
Page 16: Switch Properties
TX on the other side and vice versa. See diagram below. Switch Properties • IEEE 802.3 for 10Base-T • IEEE 802.3u for 100Base-TX and 100Base-FX • IEEE 802.3x for Flow Control • IEEE 802.3af Power Over Ethernet • IEEE 802.3at Power Over Ethernet IDS-108FPP Installation Guide... -
Page 17: Technical Specifications
P1 /P2– power 1 / power 2 Ports 1-8 G/Y – Link/Activity/Speed Port 9/10 –port status (Fiber models only) Environmental Operating Temperature Commercial Models (IDS-108FPP-xxxxxxxx) 0°C to 60°C (32°F to 140°F) Industrial Models (IDS-108FPP-xxxxxxxx-XT) -40°C to 75°C (-40°F to 167°F) Storage Temperature Commercial Models (IDS-108FPP-xxxxxxxx) -25°C to 70°C (-13°F to 158°F) -
Page 18: Regulatory Approvals
60°C (140°F). However, the IDS- 108FPP can function in the environmental conditions listed above. Note: If the IDS-108FPP is used in environments where ambient temperatures will exceed 60°C (140°F), the IDS-108FPP should be installed in an appropriate enclosure to ensure that no accidental or deliberate contact with the IDS-108FPP is possible. -
Page 19: Fiber Specifications
RX:1550 Max:-8 Max:-3 IDS-108FPP-DM1SC2D- (XT) 2 km TX: 1310 Min:-15 Min:-28 2 x SC simplex 1.2 miles RX:1550 Max:-8 Max:-3 IDS-108FPP-DS2SC20 -(XT) 20 km TX: 1310 Min:-15 Min:-34 2 X SC duplex 12.4 miles RX:1310 Max:-8 Max:3 IDS-108FPP Installation Guide... -
Page 20: Contacting Technical Support
Warranty / Registration http://www.perle.com/support_services//warranty.shtml Copyright © 2015 Perle Systems Limited. All rights reserved. No part of this document may be reproduced or used in any form without written permission from Perle Systems Ltd. IDS-108FPP Installation Guide...
