- Page 1 IDS-509CPP Hardware Installation Guide PoE Managed Industrial Ethernet Switches Updated: November 2017 Version A.11.23.2017 www.perle.com Document Part#:5500389-10(Rev K)
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
Table of Contents Preface ......................2 Overview . -
Page 4: Preface
Preface Audience This guide is for the network or computer technician responsible for installing Perle IDS series switches. Familiarity with the concepts and terminology of Ethernet and local area networks is required. Purpose This document describes the hardware and physical characteristics of the Perle IDS switch. -
Page 5: Overview
10/100/1000 Combo Ports Base-T Fixed SFP Standard Models 10/100/1000Base-T Ethernet Temp Ethernet Ports Port Ports PoE+ Enabled or SFP slots PoE+ Enabled IDS-509CPP Standard IDS-509CPP-XT Industrial IDS-509CPP Hardware Installation Guide... -
Page 6: Switch Models Views

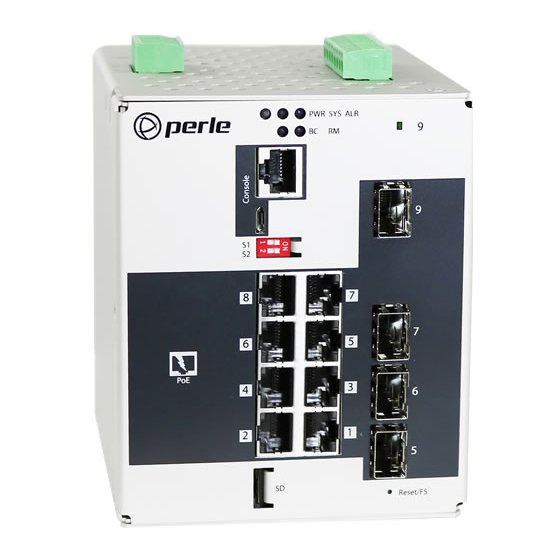

11 – 100/1000 Base-X SFP slots / RJ45 ports (Combo) 5 – DIP switches 12 – SFP status LEDs 6 – 100/1000 SFP slot 13 – Wall Mount Bracket Screw Holes 7 –10/100/1000Base-T Ethernet Ports 14 – DIN Rail Clip with PoE/PoE+ capability IDS-509CPP Hardware Installation Guide... -
Page 7: Led Indicators
Alarms configured, but no alarms detected Red solid Alarm condition detected Red blinking Alarm condition detected and Alarm Relay activated BC (Backup Coupling) State Description Backup Coupling not enabled Green - solid Backup Coupling Link enabled IDS-509CPP Hardware Installation Guide... - Page 8 Link enabled Green - flashing Ring Master unable to establish a ring due to missing link on one of the Ring ports Yellow -solid Ring Master Active, redundant port unblocked - indicates a break in the Ring IDS-509CPP Hardware Installation Guide...
-
Page 9: Ports
Combo ports. 100/1000 Mb/s SFP Slots The SFP slots can accommodate industry standard SFP’s from Perle or other suppliers. These SFP’s can be 100 or 1000 Mb/s or can be SGMII models including 1000Base-T Copper SFP’s. SFP ports labeled as 5, 6 and 7 can be used as Combo ports. -
Page 10: Port Status Indicators
Yellow 100 Mbps Yellow 10 Mbps On solid Port Link Random blinking Port Link and Activity Slow blinking Error disabled Rapid blinking Port in Fast Setup Mode Port Link State Description Green Link Green Flashing Link/Activity IDS-509CPP Hardware Installation Guide... -
Page 11: Terminal Block Connectors
P2 - Power Input 2 IN 1 - Digital Input 1 - Dry Contact IN 2 - Digital Input 2 - Wet Contact R - Relay with 2 connection points - Normally Open (NO) / Normally Closed (NC) IDS-509CPP Hardware Installation Guide... -
Page 12: Dip Switches
Coupling: Backup on Port 4 (Note 1) Client Primary Ring Feature: enabled Ring Role: Client Coupling: none Note 1: If the backup coupling feature is not used, then port 4 can be used as a normal connection port. IDS-509CPP Hardware Installation Guide... - Page 13 Port Assignment Ring Ports 1, 2 Coupling Port Note: DIP switches are read during system boot up. If a DIP switch is changed the IDS switch must be rebooted in order for the change to take effect. IDS-509CPP Hardware Installation Guide...
-
Page 14: Installation
Limited power means complying with one of the following requirements. Class 2 circuit according to Canadian Electrical Code, Part 1, C22.1 Class 2 circuit according to National Electrical Code, NFPA-70 Limited Power Supply (LPS) according to EN/IEC 60950-1; Limited-energy circuit according to EN/IEC 61010-1 IDS-509CPP Hardware Installation Guide... -
Page 15: Terminal Block Connectors
Warning: In case of malfunction or damage, no attempts at repair should be made. Do not dismantle the product. All repairs need to be made by a qualified Perle representative. Warning: Explosion hazard. Do not remove or replace any ports, connectors, memory cards, lamps, fuses plug-in modules (as applicable) or operate unless power has been disconnected or the area is free of ignitable concentrations. -
Page 16: Wiring The Relay Alarm
5. Re-insert the Terminal block connector if removed. 6. Turn on power source. Terminal Block Connectors. Warning: Ensure power has been removed at the source of the alarm circuit prior to pro- ceeding with connections to the alarm relay. IDS-509CPP Hardware Installation Guide... -
Page 17: Connecting The Console Port
Enter to display the setup prompt. Warning: If you connect or disconnect the console cable with the power applied to the switch or any device on the network, an electrical arc can occur. This could cause an IDS-509CPP Hardware Installation Guide... - Page 18 This could cause an explosion when installed in a hazardous location. Ensure the power is removed from all devices prior to making the cable connection. IDS-509CPP Hardware Installation Guide...
-
Page 19: Connecting Data Ports
1. Align the SFP module in front of the slot to establish alignment. 2. Insert the module and push inwards with your thumb until you hear a click. Do not force the SFP module in. SFP modules are keyed so you can only insert them one way. IDS-509CPP Hardware Installation Guide... - Page 20 SFP modules from their slots could cause an electrical arc resulting in a possible explosion. Note: Changing the SFP to one that operates at a different speed (ex. 1000Mbps to 100Mbps) will require a reboot of the switch. IDS-509CPP Hardware Installation Guide...
-
Page 21: Resetting The Switch
While continuing to hold the reset button, apply power to the switch • ALR LED will go on after power up; when it goes out; release the reset button The switch is now reset to factory default configuration. IDS-509CPP Hardware Installation Guide... - Page 22 When the switch is not in factory default, the "Fast Setup Mode" sequence will activate Password recovery. Note: The password recovery feature can be disabled in the software. Behavior On solid - during reset process Off - to indicate that reset has completed IDS-509CPP Hardware Installation Guide...
-
Page 23: Configuring The Ids Switch
Web Device Manager The Perle Web Device Manager is an embedded Web based application that provides an easy to use browser interface for managing the switch. This interface provides the ability to configure and manage the switch. This is accessible through any standard desktop web browser. -
Page 24: Appendix A - Technical Specifications
Appendix A - Technical Specifications This appendix provides the technical specification for the IDS-509CPP(-XT) switches. Technical Specifications Power Power Connector • 4-Pin Removable Terminal Block • Grounding screw on metal chassis • Dual Power Input Dual Power Input • 54 VDC nominal 50-57 VDC (Poe+ IEEE 802.3at type 2, 5.5A Max... - Page 25 SFP’s supporting SGMII protocol are also supported (example 1000Base-T). SFP slot • 1 slot supporting SERDES 100/1000Base-X SFP modules supplied by Perle, Cisco or other manu- facturers of MSA compliant SFP’s SFP’s supporting SGMII protocol are also supported (example 1000Base-T). Console port •...
- Page 26 Industrial Control Equipment). UL 61010-2-201:2013 CANCSA-C22.2 No. 61010-1-12 EN 61010-1(ed 3), IEC 61010-2-201 EN61010-1, EN 61010-2-201 Standard Emissions and FCC 47 Part 15 Subpart B:2016:Class A Immunity CISPR 32-2015 / EN55032:2015 (Class A) CISPR 24:2010/EN 55024:2010 IDS-509CPP Hardware Installation Guide...
- Page 27 Class 1 Laser safety requirements for those models with fixed fiber transceiver modules EN 60825-1:2007 FDA/CDRH 21 CFR1040.10 and 21 CFR1040.11 Hazardous Locations (Hazloc) ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D ATEX Class I Zone 2 IDS-509CPP Hardware Installation Guide...
- Page 28 Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. www.perle.com/support_services/support_request.shtml Warranty / Registration This product is covered by the Perle Ethernet Switches Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IDS-509CPP Hardware Installation Guide...
-
Page 29: Appendix B - Sample Labels
Appendix B - Sample Labels IDS-509CPP Hardware Installation Guide... -
Page 30: Appendix C - Mechanical Drawings
Appendix C - Mechanical Drawings IDS-509CPP Hardware Installation Guide... -
Page 31: Appendix D - Din Rail And Wall Mounting
If you have purchased the optional wall mounting kit then proceed as below: 1. Remove the DIN rail clip from the rear panel on the IDS switch. 2. Attach the wall mount plates to the IDS switch as shown below using the screws provided in the kit. IDS-509CPP Hardware Installation Guide... - Page 32 6. Pull the IDS switch down to lock the IDS switch to the wall mount. 7. Tighten the four screws securely to the wall. Note: for best results use screws with the following attributes Head diameter .5 - .6 mm Shaft diameter 3 -3.5 mm IDS-509CPP Hardware Installation Guide...
-
Page 33: Appendix E - Ids Maintenance
Do not use solvents or cleaning agents on this unit • Keep vent holes clear of debris • If case gets dirty wipe with a dry cloth • Ensure all cables are in good working condition • Replace any frayed cables or cables without clips IDS-509CPP Hardware Installation Guide... -
Page 34: Appendix F - Cables And Connectors
Straight through or Ethernet Crossover cable Note: An optional cable adapter is available to provide RJ45 to DB9 conversion: Perle’s optional RJ45 to DB9-F cross- over adapter model DB0020C enables a straight through Ethernet cable to connect the RJ45 console port to a PC serial port. - Page 35 Multimode 50/125 or 62.5/125 micron fiber cable Single mode 9/125 micron fiber cable Simplex (BIDI, single strand) SC or ST connector Multimode 50/125 or 62.5/125 micron fiber cable Single mode 9/125 micron fiber cable Ethnernet Connector - 8-pin RJ45 Fiber Connections IDS-509CPP Hardware Installation Guide...
- Page 36 For PoE devices up to 15.4 watts per port • For PoE+ devices up to 30 watts per port Connect the copper cables from each TP port(RJ45) on the IDS-509CPP switch to compliant Powered Devices (PDs). See below for RJ45 pinouts for PoE/PoE+ ports.
