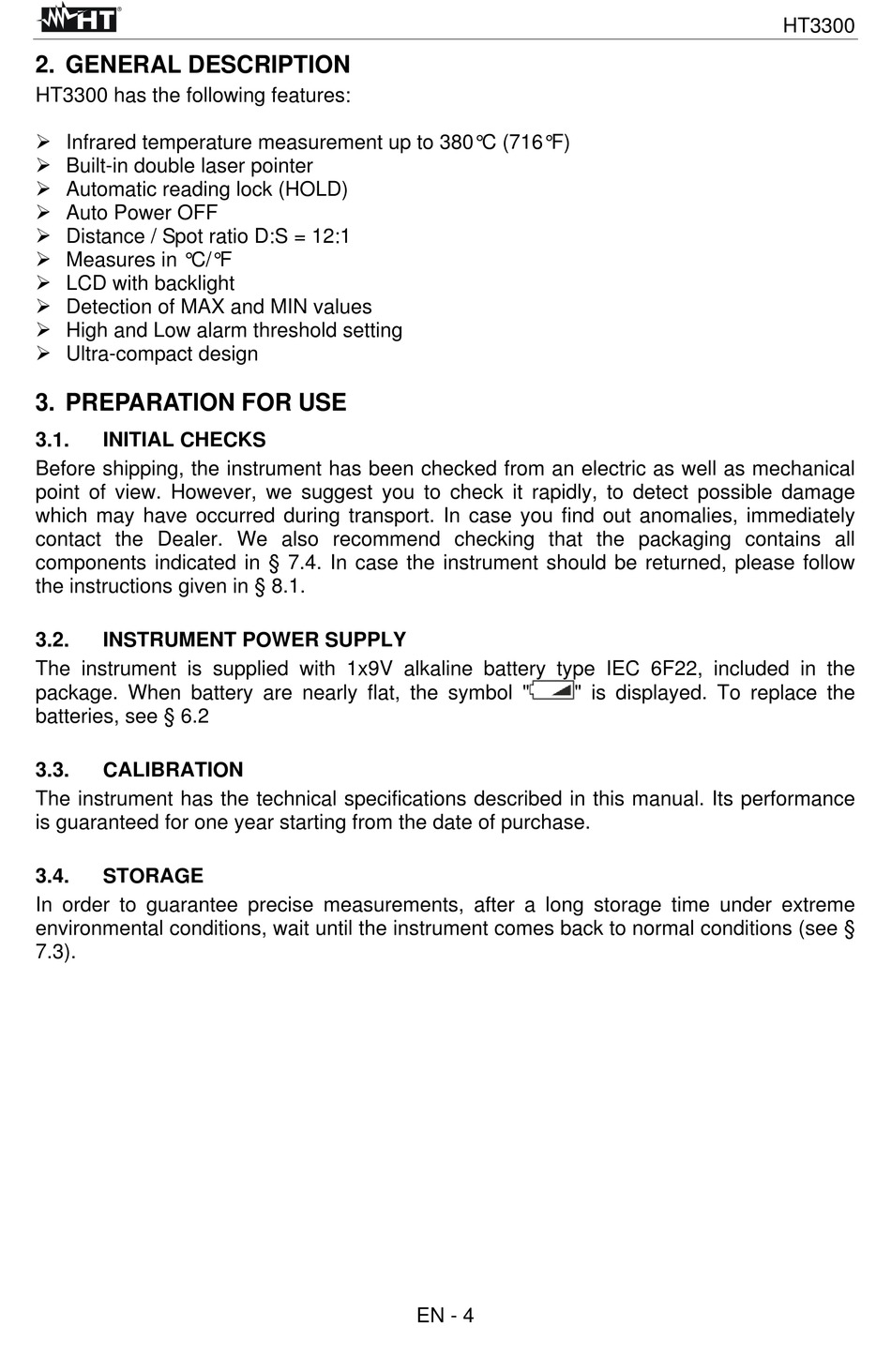

2. GENERAL DESCRIPTION

HT3300 has the following features:
 Infrared temperature measurement up to 380°C (716°F)
 Built-in double laser pointer
 Automatic reading lock (HOLD)
 Auto Power OFF
 Distance / Spot ratio D:S = 12:1
 Measures in °C/°F
 LCD with backlight
 Detection of MAX and MIN values
 High and Low alarm threshold setting
 Ultra-compact design

3. PREPARATION FOR USE

3.1.

INITIAL CHECKS

Before shipping, the instrument has been checked from an electric as well as mechanical
point of view. However, we suggest you to check it rapidly, to detect possible damage
which may have occurred during transport. In case you find out anomalies, immediately
contact the Dealer. We also recommend checking that the packaging contains all
components indicated in § 7.4. In case the instrument should be returned, please follow
the instructions given in § 8.1.
3.2.

INSTRUMENT POWER SUPPLY

The instrument is supplied with 1x9V alkaline battery type IEC 6F22, included in the
package. When battery are nearly flat, the symbol "
batteries, see § 6.2
3.3.

CALIBRATION

The instrument has the technical specifications described in this manual. Its performance
is guaranteed for one year starting from the date of purchase.
3.4.

STORAGE

In order to guarantee precise measurements, after a long storage time under extreme
environmental conditions, wait until the instrument comes back to normal conditions (see §
7.3).
" is displayed. To replace the
EN - 4
HT3300
