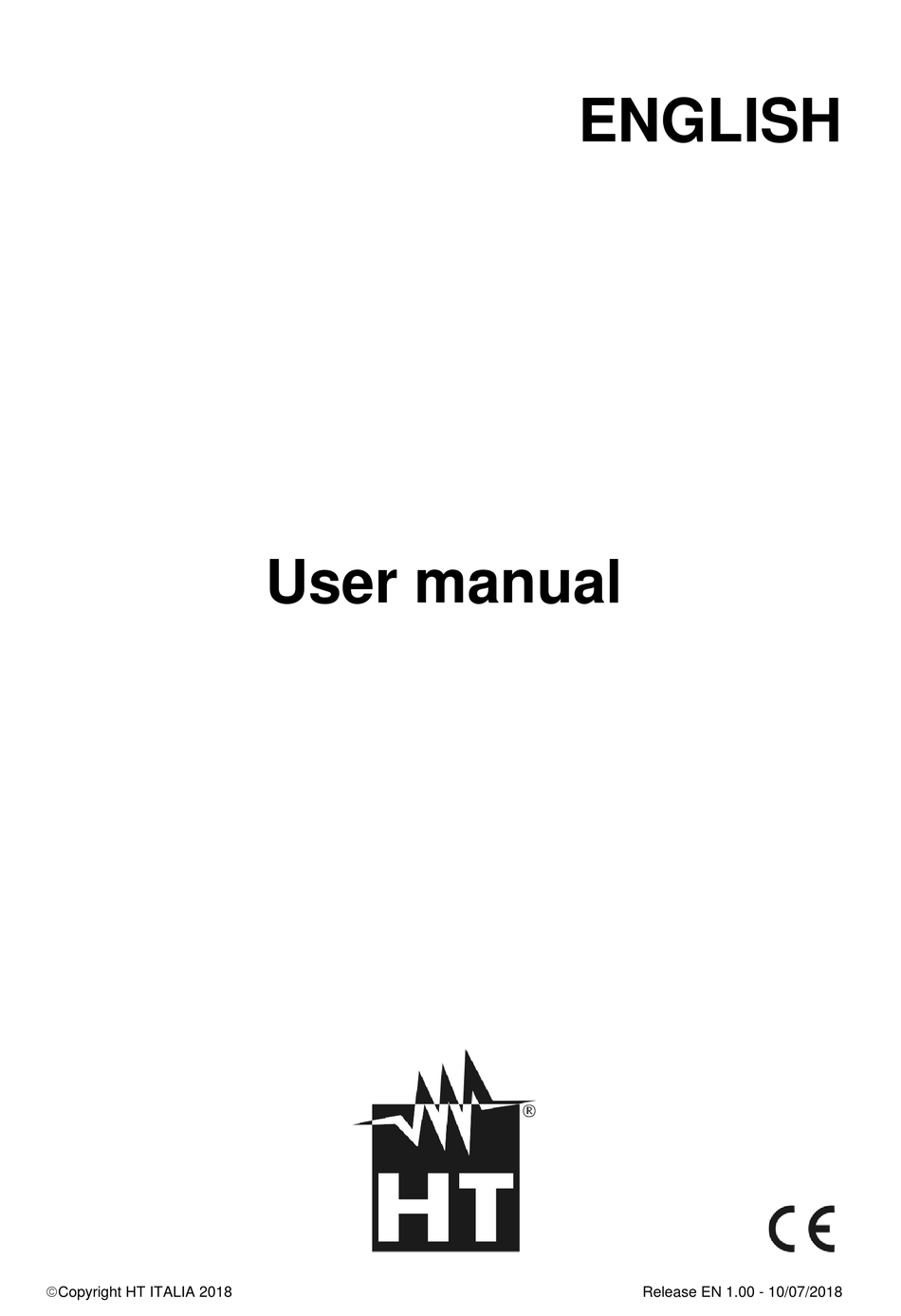

- Page 1 ENGLISH User manual Copyright HT ITALIA 2018 Release EN 1.00 - 10/07/2018...
-
Page 2: Table Of Contents
HTA106 TABLE OF CONTENTS SAFETY PRECAUTIONS AND PROCEDURES ............2 1.1. Preliminary instructions ..................... 2 1.2. During use ......................... 2 1.3. After use ..........................2 GENERAL DESCRIPTION ................... 3 PREPARATION FOR USE ................... 3 ... -
Page 3: Safety Precautions And Procedures
HTA106 1. SAFETY PRECAUTIONS AND PROCEDURES This instrument conforms to safety guidelines relating to electronic measuring instruments. For your own safety and that of the instrument, please follow the procedures described in this instruction manual and specially read all the notes preceded by the symbol carefully. -
Page 4: General Description
HTA106 2. GENERAL DESCRIPTION The instrument has the following functions: Air temperature measurement with integrated sensor Relative humidity (%RH) measurement with integrated sensor Dew point temperature measurement Wet bulb temperature measurement MAX MIN function Data HOLD ... -
Page 5: Nomenclature

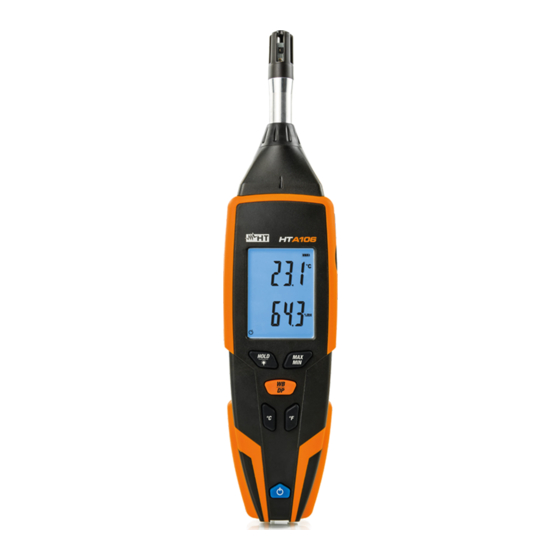

HTA106 4. NOMENCLATURE 4.1. INSTRUMENT DESCRIPTION CAPTION: 1. Integrated sensor 2. LCD display 3. HOLD/ 4. MAX MIN key 5. WB/DP key 6. °C key 7. °F key 8. ON/OFF key 9. Tripod hole 10. Battery cover Fig. 1: Instrument description 4.2. -
Page 6: Function Key Description
HTA106 4.3. FUNCTION KEY DESCRIPTION 4.3.1. ON/OFF key Press the ON/OFF key to switch on and off the instrument. The ON/OFF key also allows enabling/disabling the Auto Power OFF function (see § 4.3.6). 4.3.2. HOLD/ By pushing HOLD/ key the value measured by the instrument is frozen on the display and the symbol “Hold”... -
Page 7: Operating Instructions
HTA106 5. OPERATING INSTRUCTIONS 5.1. AIR TEMPERATURE AND HUMIDITY MEASUREMENT CAUTION Do not perform measurements in humid environments. Do not perform measurements in presence of explosive materials or combustible gases or in dusty environments. Do not expose the integrated sensor to high mechanical stress 1. -
Page 8: Maintenance
HTA106 6. MAINTENANCE 6.1. GENERAL Whether in use or in storage, please carefully follow the recommendations listed in this manual in order to prevent any possible damage or danger during use. Do not place this instrument in environments with a high temperature and do not expose to direct sunlight, Be sure to switch off the instrument after use. -
Page 9: Technical Specifications
HTA106 7. TECHNICAL SPECIFICATIONS 7.1. CHARACTERISTICS Accuracy is calculated as ±[indication] at 25°C, <70%RH Air Temperature measurement Range Resolution Accuracy 0.5°C -20.0°C ÷ 60.0°C 0.1 °C 0.9°F -4.0°F ÷ 140.0°F 0.1 °F Wet Bulb Temperature measurement Range Resolution Accuracy 1.0°C -20.0°C ÷... -
Page 10: Service
HTA106 8. SERVICE 8.1. WARRANTY CONDITIONS This equipment is guaranteed against material faults or production defects, in accordance with the general sales conditions. During the warranty period (one year), faulty parts may be replaced. The manufacturer reserves the right to decide either to repair or replace the product.
