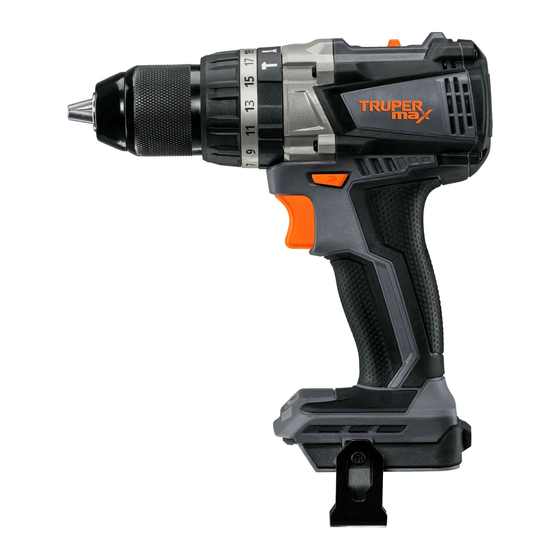

- Page 1 Manual Cordless hammer drill / drill / driver 20 V 1/2” Chuck Applies for: Codes Models 101405 MAX-20RS 101453 MAX-20R MAX-20R Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Parts Start Up Keep this manual for future references. Troubleshooting The illustrations in this manual are for reference only. They might be different from the real tool. Maintenance Environmental Protection Notes Authorized Service Centers Warranty Policy MAX-20RS ENGLISH... -
Page 3: Technical Data
Technical Data MAX-20R MAX-20RS Code 101453 101405 Description Cordless hammer drill / drill / driver Chuck 1/2” keyless Voltage 20 V Speed and Drill: 0 - 500 RPM 0 - 1 800 RPM strokes per minute Hammer Drill: 0 - 7 500 BPM... -
Page 4: Safety Warnings For Power Tools
Safety Warnings for Power Tools WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Hammer Drills / Drills / Drivers
Battery and Charger Before operating the tool DANGER • Use only Truper Max chargers to charge • Take your time to assess the job to be done and double the battery. Using a different charger may cause fire or check you are paying attention to the necessary caution injury hazard. -
Page 6: Parts
Torque Regulator The cordless hammer drill is useful both for drilling holes with impact mode, as well as for screwing and unscrewing NOTE In model MAX-20RS, battery and charger are sold Key-less chuck separately. with retention insurance Direction of rotation and... - Page 7 Start Up General remarks for using the battery The battery is shipped NOT CHARGED. It is necessary to charge the battery approximately 1 hour before being able to use it. The normal charge is 32 °F to 113 °F. When not in this level the charge automatically stops until reaching the right temperature. The normal temperature for discharge / work is 32 °F to 167 °F.
- Page 8 Start Up Torque Adjust • To select the desired torque level to screw drive, turn the torque regulator until it matches the corresponding number with the upper mark: From 1 to 4 for small screws, From 5 to 9 for screws on soft materials, From 10 to 15 for screws on soft and hard material.
-
Page 9: Troubleshooting
Troubleshooting Problem Cause Solution The hammer drill • Low battery. • Charge the battery. looses efficiency. The trigger cannot be • The direction rotation button is in the blocking • Move the direction button into the rotate or reverse pushed. position. -
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
