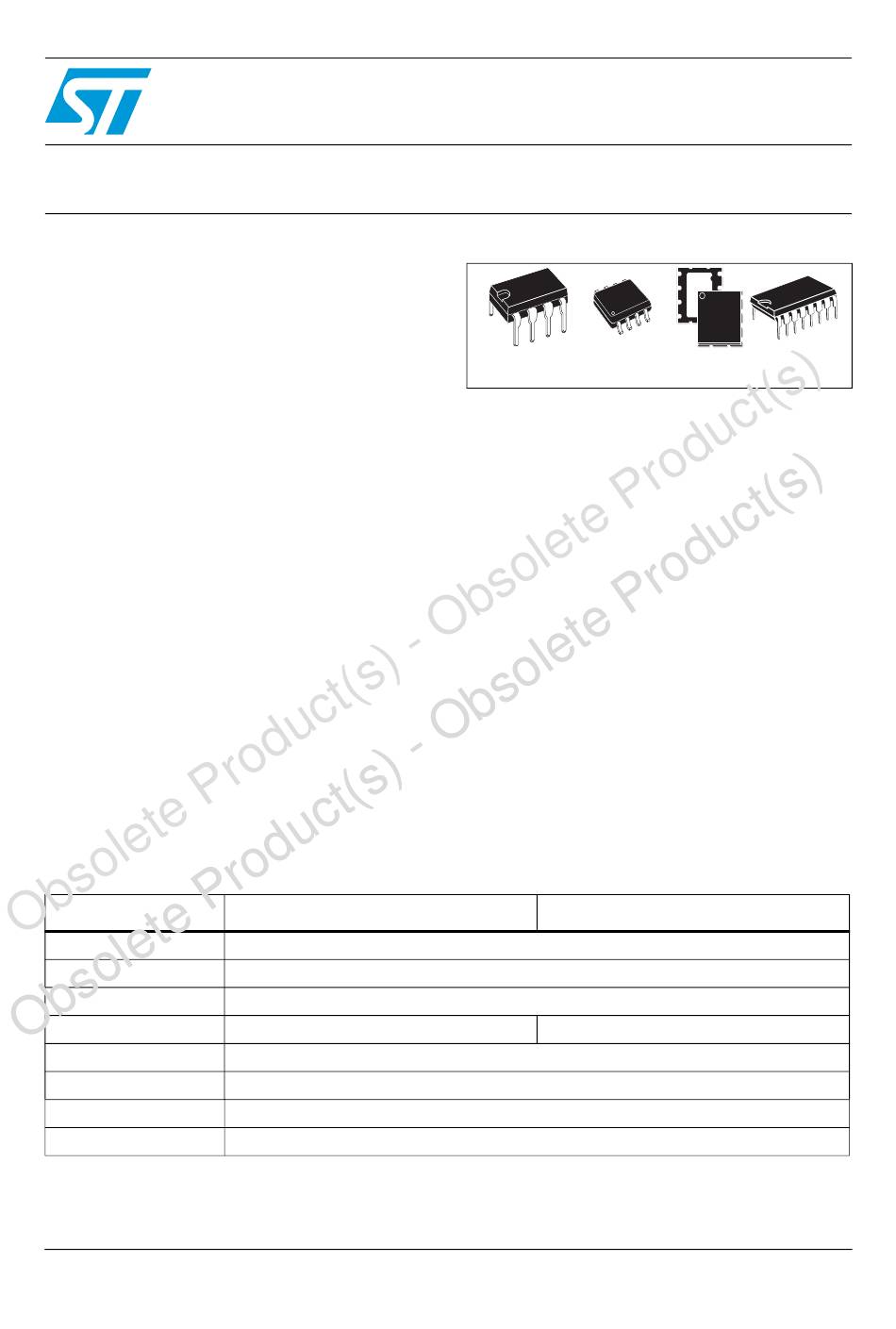

8-bit MCU with single voltage Flash memory, ADC, timers
Features
Memories
– 1 Kbytes single-voltage Flash Program
memory with readout protection, ICP and
IAP)
10 K write/erase cycles guaranteed
data retention: 20 years at 55 °C
– 128 bytes RAM
Clock, Reset and Supply management
– 3-level low-voltage supervisor (LVD) and
auxiliary voltage detector (AVD) for safe
power-on/off
– Clock sources: internal trimmable 8 MHz
RC oscillator, internal low power, low
frequency RC oscillator or external clock
– Five power saving modes: Halt, Auto-
wakeup from Halt, Active-halt, Wait, Slow
Interrupt management
– 11 interrupt vectors plus TRAP and RESET
– 5 external interrupt lines (on 5 vectors)
I/O ports
– 5 multifunctional bidirectional I/O lines
– 1 additional Output line
– 6 alternate function lines
– 5 high sink outputs
Table 1.
Device summary
Features
Program memory
RAM (stack)
Peripherals
ADC
Operating Supply
CPU Frequency
Operating Temperature
Packages
1. For development or tool prototyping purposes only. Not orderable in production quantities.
February 2009

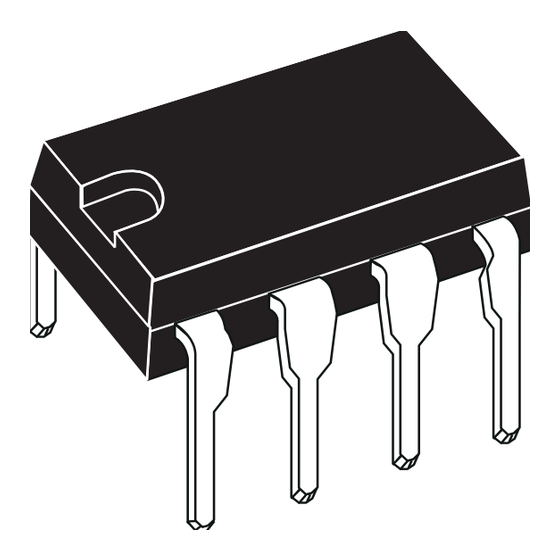

Plastic DIP8
2 Timers
– One 8-bit Lite timer (LT) with prescaler
– One 12-bit auto-reload timer (AT) with
A/D Converter
– 10-bit resolution for 0 to V
– 5 input channels
Instruction Set
– 8-bit data manipulation
– 63 basic instructions with illegal opcode
– 17 main addressing modes
– 8x8 unsigned multiply instruction
Development Tools
– Full hardware/software development
– Debug module
ST7LITEUS2
128 (64) bytes
LT Timer w/ Wdg, AT Timer w/ 1 PWM
-
2.4 to 3.3 V @f
=4 MHz, 3.3 to 5.5 V @f
CPU
up to 8 MHz RC
-40 to +85 °C / -40 to 125 °C
SO8 150", Pastic DIP8, DFN8, Pastic DIP16
Rev 5
ST7LITEUS2
ST7LITEUS5
SO8
150"
including: watchdog, one realtime base and
one 8-bit input capture.
output compare function and PWM
detection
package
ST7LITEUS5
1 Kbytes
10-bit
=8 MHz
CPU
(1)
Plastic DIP16
DFN8
DD
1/136
