Ozito PSS-7000U Original Instructions

PAINT
SPRAY SYSTEM
700W
ORIGINAL INSTRUCTIONS
ASSEMBLY & PREPARATION

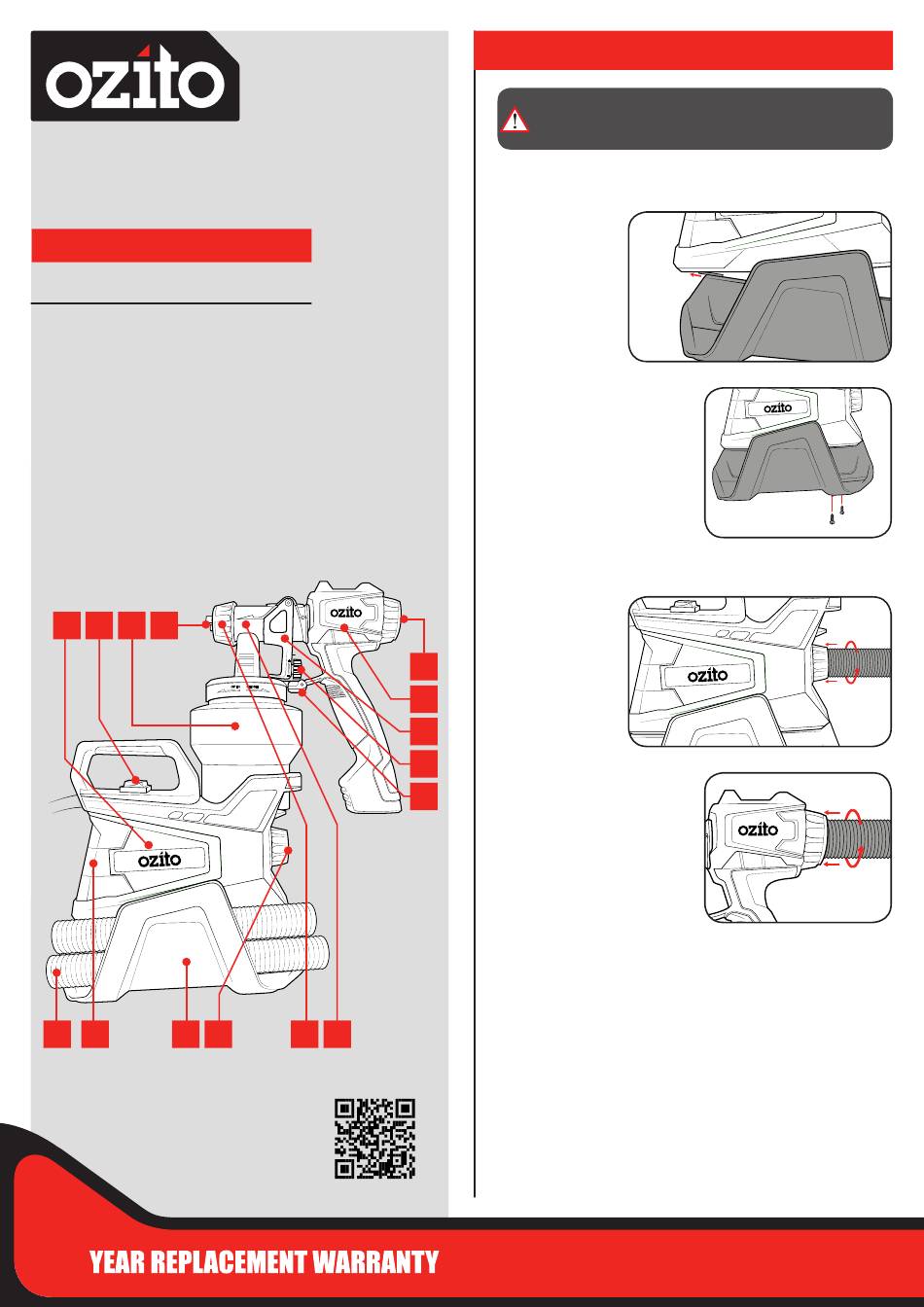

PAINT SPRAY SYSTEM
1 Spray Station
2 On/Off Switch
3 Paint Pot
4 Nozzle
5 Air Inlet
6 Spray Gun Body
7 On/Off Trigger
8 Spray Regulator Dial
1 2 3 4
10 11 12 13
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1
9 Locking Lever
10 Air Hose
11 Air Filter
12 Stand
13 Air Outlet
14 Air Cap
15 Paint Head
14 15

1. ASSEMBLY

WARNING!
THE POWER SUPPLY BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.

Attaching the Stand

1 Slide the back
of the stand into
the recess in the
bottom of the
spray station.
2 Insert and tighten the 2
screws near the front of the
stand to secure in place.

Fitting the Air Hose

1 Align the arrows
on one end of
the air hose with
5 the arrow on the
spray station air
outlet. Rotate
6
clockwise to
secure in place.
7
8
9 2 Align the arrows on the
other end of the air hose
with the arrow on the gun
air inlet. Rotate clockwise
to secure in place.
ENSURE THE TOOL IS DISCONNECTED FROM
PSS-7000U
