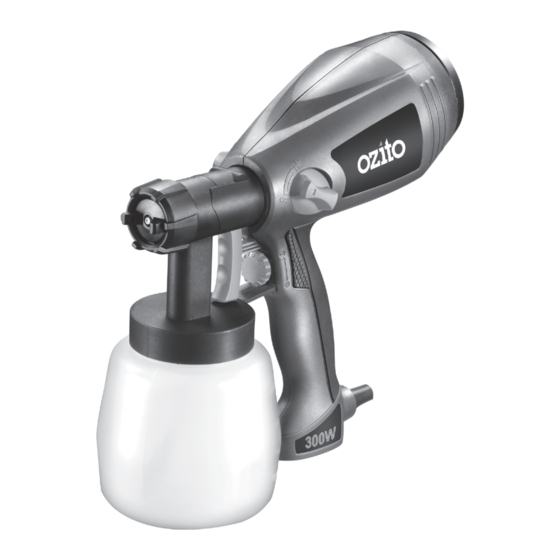

Ozito SGP-300 Instruction Manual
  1. Manuals
  2. Brands
  3. Ozito Manuals
  4. Paint Sprayer
  5. SGP-300
  6. Instruction manual

Ozito SGP-300 Instruction Manual

Hide thumbs Also See for SGP-300:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
SPRAY
GUN
400W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage:
230-240V ~ 50Hz
Power:
400W
Max. Flow Rate:
450ml/min
Viscosity:
20 - 80 secsonds
Less than 30 DIN-S
Pot Capacity:
800ml
Nozzle:
ø2.5mm
Weight (tool only):
1.5kg
ozito.com.au
1
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Warranty excludes consumable
parts, for example: viscosity cup, cleaning needle, nozzle, filter,
paint pot.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than
that specified on the tool.
• If the tool shows signs of damage or defects caused by or
resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
STANDARD EQUIPMENT

Spray Gun

Viscosity Cup
Cleaning Needle
SGP-300
1219

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGP-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito SGP-300

Summary of Contents for Ozito SGP-300

  • Page 1: Spray Gun

    ø2.5mm Weight (tool only): 1.5kg ozito.com.au Cleaning Needle SGP-300 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...

  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION 1. ASSEMBLY SPRAY GUN 1 Air Cap 5 Spray Regulator Dial WARNING! ENSURE THE TOOL IS DISCONNECTED 2 Nozzle 6 Soft Grip Handle FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS. 3 On/Off Trigger 7 Quick Release Dial 4 Paint Pot 8 Air filter...

  • Page 3: Operation

    OPERATION 3. CONTROLS 2. PREPARATION WARNING! THE TOOL IS RECOMMENDED FOR WARNING! FOR BEST RESULTS, PAY PARTICULAR USE WITH A RESIDUAL CURRENT DEVICE WITH A ATTENTION TO SURFACE PREPARATION & PAINT RATED CURRENT OF 30mA OR LESS. THINNING. ENSURE ALL SURFACES ARE FREE OF DUST, DIRT &...
  • Page 4 3. S tart the stroke before the edge of the area being sprayed. Begin the movement and then squeeze the trigger. 3 F or corners, edges and other hard to access places use a round fan. This is done by rotating 4. M ove the spray gun along the surface at a steady pace and the air cap into the position then release the trigger once past the opposite edge of the shown to the right. area being sprayed. 5. Overlap each stroke to ensure even coverage. SGP-300...

  • Page 5: Maintenance

    Recycling packaging reduces the need for landfill and raw materials. Note: Ozito Industries will not be responsible for any damage or injuries Reuse of recycled material decreases pollution in the environment. caused by the repair of the tool by an unauthorised person or by mishandling of Please recycle packaging where facilities exist. Check with your the spray gun.

  • Page 6: Electrical Safety

    Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the The charger has been designed for 230V and 240V only. Always check that the power supply corresponds extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective. to the voltage on the rating plate. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock. This tools is double insulated; therefore no earth wire is required. The power supply for this products charger should be protected by a residual current device (rated at Note: Double insulation does not take the place of normal safety precautions when 30mA or less).
