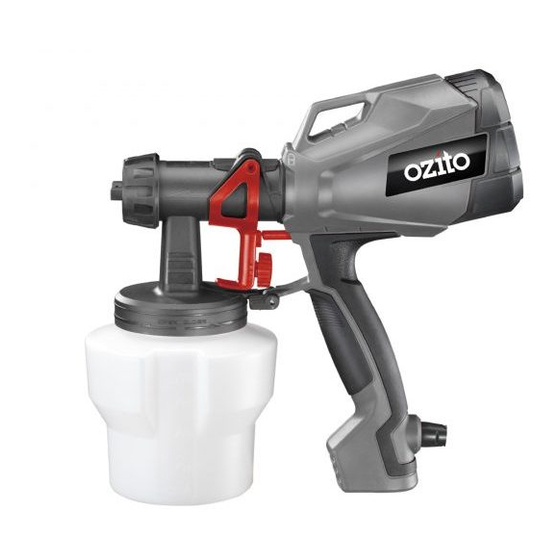

Ozito SGP-5000 Instruction Manual

Ozito SGP-5000 Instruction Manual

500w spray gun

Advertisement

Quick Links

SPRAY
GUN
500W
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage:
220-240V ~ 50Hz
Power:
500W
Max. Flow Rate:
550ml/min
Max Viscosity:
60 DIN-sec
Container Capacity:
1000ml
Nozzle:
ø2.0 / ø2.5mm
Weight:
1.45kg
ozito.com.au
1
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 12 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Warranty excludes consumable
parts, for example: viscosity cup, cleaning needle, nozzle, paint pot.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than
that specified on the tool.
• If the tool shows signs of damage or defects caused by or
resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WHAT'S IN THE BOX
Spray Gun
Viscosity Cup
Cleaning Needle & Brush
Paint Pot & Needle Tool
2 x Nozzles
SGP-5000
0117

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGP-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito SGP-5000

  • Page 1 1.45kg ozito.com.au Paint Pot & Needle Tool 2 x Nozzles SGP-5000 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION 1. ASSEMBLY SPRAY GUN 1 Nozzle 6 Paint Pot WARNING! ENSURE THE TOOL IS DISCONNECTED FROM 2 Air Cap 7 Locking Lever THE POWER SUPPLY BEFORE PERFORMING ANY OF THE 3 Paint Head 8 Soft Grip Handle FOLLOWING OPERATIONS.
  • Page 3: Operation

    OPERATION 3. CONTROLS 2. PREPARATION CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, NOTE: FOR BEST RESULTS, SURFACE PREPARATION AND PAINT A RESIDUAL CURRENT DEVICE (RATED 30MA OR LESS) THINNING ARE THE TWO MOST IMPORTANT AREAS. ENSURE MUST BE USED. ALL SURFACES ARE FREE OF DUST, DIRT AND GREASE.
  • Page 4 1 Unscrew and remove the air cap from the paint head. 2 Remove the nozzle and replace with the desired size. Screw the air cap onto the paint head to secure the nozzle. SGP-5000...
  • Page 5: Maintenance

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your Note: Ozito Industries will not be responsible for any damage or injuries local council authority for recycling advice. caused by the repair of the sander by an unauthorised person or by mishandling...
  • Page 6: Electrical Safety

    Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
